120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
120A High Power Slip Ring 1200rpmused In Electroplating Industry
Specifications
Brand Name :
GuRen
Model Number :
W1M120S-D
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Conventional current :
≤120A
Peak current :
155A
Length :
62.5mm
width :
30mm
Speed :
1200rpm
Housing :
M10
Description

W1M120S-D high power anti-corrosion slip ring is specially used in electroplating, electrolytic equipment and other industries. The slip ring can pass 120A current and can be used in highly corrosive environments.


W1M120S-D high power anti-corrosion slip ring Product features

1. Low wear, supports high-speed rotation, the speed can reach 1200 rpm.
2. Supports large current transmission, the maximum current can pass 155A.
3. Three-layer protection structure, support long-term use in complex environment.
4. Compact structural design, small size.


W1M120S-D high power anti-corrosion slip ring Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)


W1M120S-D high power anti-corrosion slip ring Product size drawing


120A High Power Slip Ring 1200rpmused In Electroplating Industry

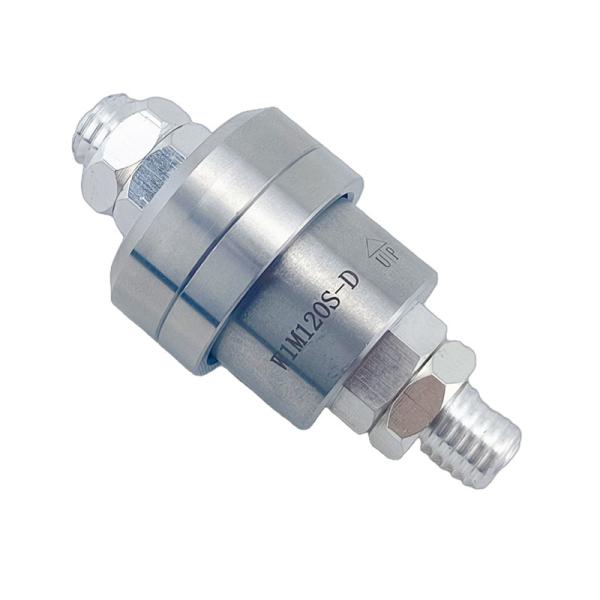

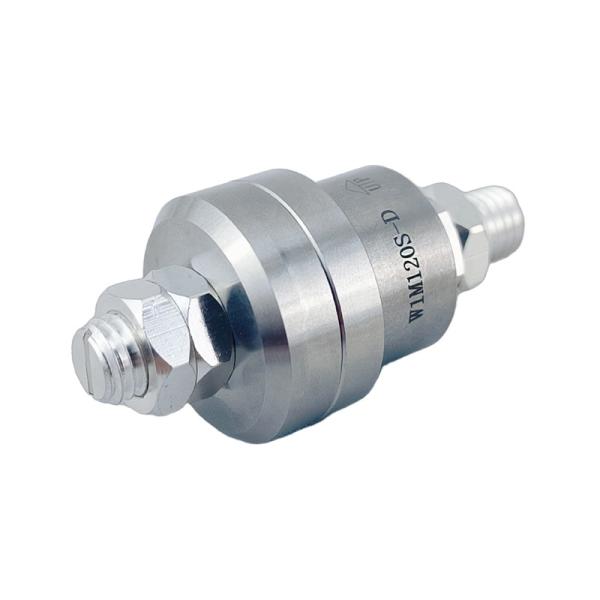

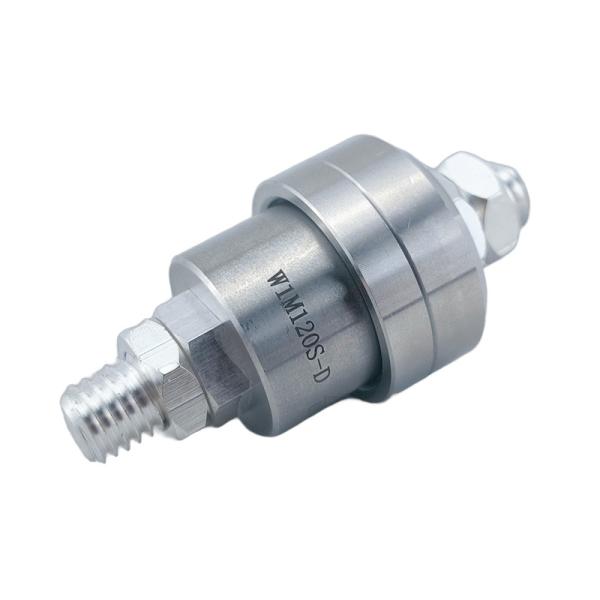

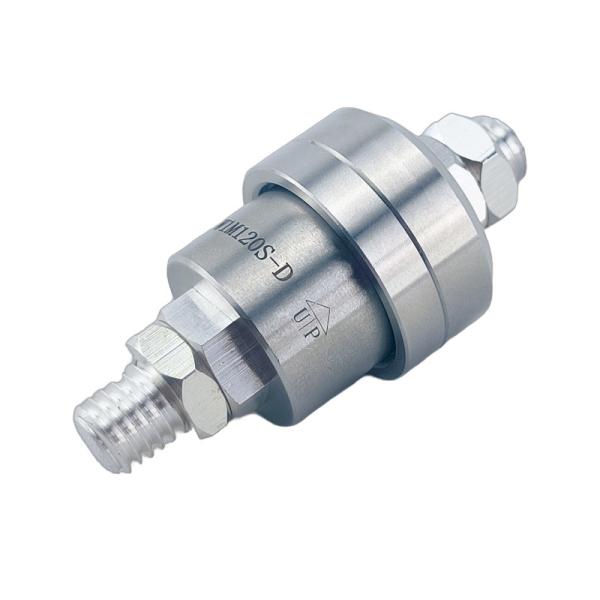

W1M120S-D high power anti-corrosion slip ring Product Pictures

120A High Power Slip Ring 1200rpmused In Electroplating Industry

120A High Power Slip Ring 1200rpmused In Electroplating Industry


W1M120S-D high power anti-corrosion slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
