25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion
Specifications
Brand Name :
GuRen
Model Number :
W1M25S-D
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Use current :
≤25A
Peak current :
30A
Sealing layers :
2 inner layers + 1 outer layer
Guide column material :
Copper + Nickel Silver
Stud :
M5
Speed :
1800rpm
Description

W1M25S-D electroplating slip ring adopts a three-layer protection structure and can withstand spraying of mist, electroplating liquid, and corrosive liquid. It is a liquid slip ring designed and developed for the electroplating/electrolysis equipment industry.


W1M25S-D electroplating slip ring Product features

1. Zero-loss conduction (<1mΩ) extends the life of the equipment.
2. 1800RPM high-speed rotation, life span up to 100 million revolutions.
3. 2 layers of internal sealing + 1 layer of external special protection, three layers of protection can better adapt to complex use environments.


W1M25S-D electroplating slip ring Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)


W1M25S-D electroplating slip ring Product size drawing


25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion

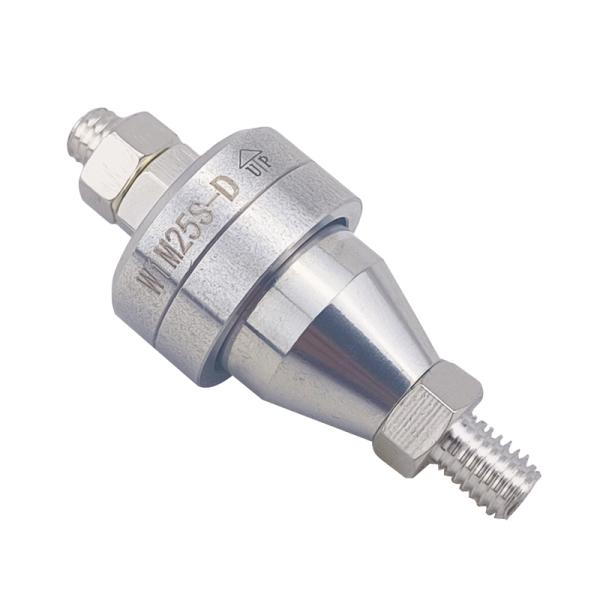

W1M25S-D electroplating slip ring Product Pictures

25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion

25A Current Electroplating Special Liquid Slip Ring Stainless Steel Shell Anti Corrosion


W1M25S-D electroplating slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
