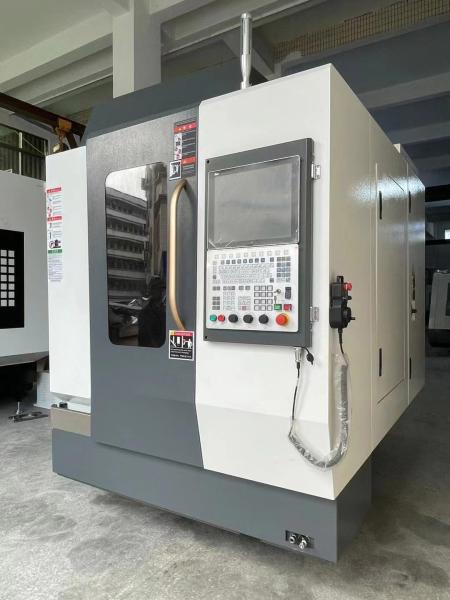

Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity
Specifications
Brand Name :
LiSN
Model Number :
LiSN-WZ500
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10000 per year
Delivery Time :
60-70work days
Packaging Details :
wooden box
Tool Magazine Capacity :
20
Spindle Speed :
15000 Rpm
Power Supply :
AC 220V
Maximum Tool Diameter :
300 Mm
Accuracy :
0.003 Mm
Maximum Workpiece Diameter :
1000 Mm
Spindle Power :
10 KW
Warranty :
1 Year
Voltage :
220V/380V
Condition :
New
Cnc or not :
CNC
Transmission :
Taiwan TBI Ball Screw
Description

Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity

Product Description:

5 Axis Linkage - Precision CNC Machine Tools

The 5 Axis Linkage is a state-of-the-art CNC machine designed for precision machining. With advanced technology and high efficiency, this machine is perfect for a wide range of industries and applications.

Product Overview

The 5 Axis Linkage is a versatile CNC machine that offers exceptional performance and precision. It is equipped with 5 axes, allowing for complex and precise machining operations. This machine is ideal for manufacturing components, parts, and products with high accuracy and quality.

Key Features

The 5 Axis Linkage can accommodate tools with a maximum diameter of 100 mm, making it suitable for a variety of machining operations.

With a maximum workpiece diameter of 1000 mm, this machine can handle larger workpieces with ease, providing enhanced flexibility and

Technical Parameters:

Item Specifications Unit Parameters of LISN-WZ500
Work Table Work Table Size mm 500
A-Axis Swing Angle ° ±120
C-Axis Swing Angle ° 360
A-Axis Swing Speed rpm 30
C-Axis Swing Speed rpm 50
Max.Load of Work Table kg 200
Work Range X-Axis Travel Range mm 600
Y-Axis Travel Range mm 700
Z-Axis Travel Range mm 450
Distance between Spindle Nose to Work Table mm 120-570
Spindle Spindle Speed Range r/min 15000
Spindle Motor Kw 11
Feedrate X/Y/Z Axis Rapid Feed Speed m/min 24/24/24
X/Y/Z Axis Feed Speed m/min 10
ATC Tool Capacity - 20
Position Accuracy X/Y/Z Axis Position Accuracy mm 0.005
A-Axis s ±40
C-Axis s ±25
Re-position Accuracy X/Y/Z Axis Re-position Accuracy mm 0.003
A-Axis s ±4
C-Axis s ±4
Total Electrical Capacity KVA 35
Machine Dimenssion Size mm 2500×2900×3000

Product details:

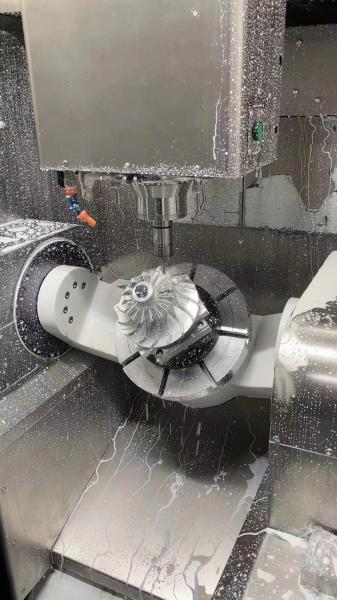

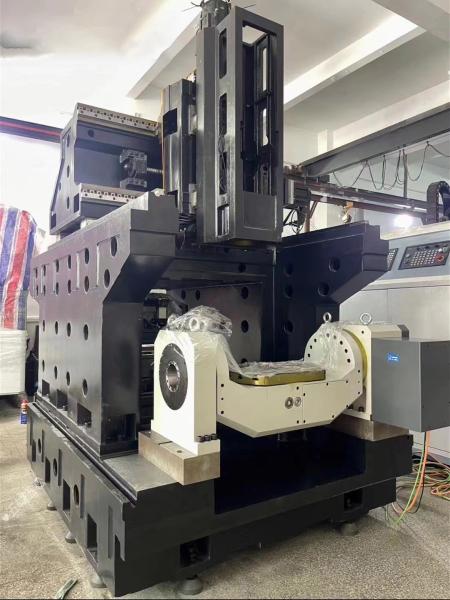

Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity

Accuracy 5 Axis Linkage CNC Machine With 20 Tool Magazine Capacity

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
