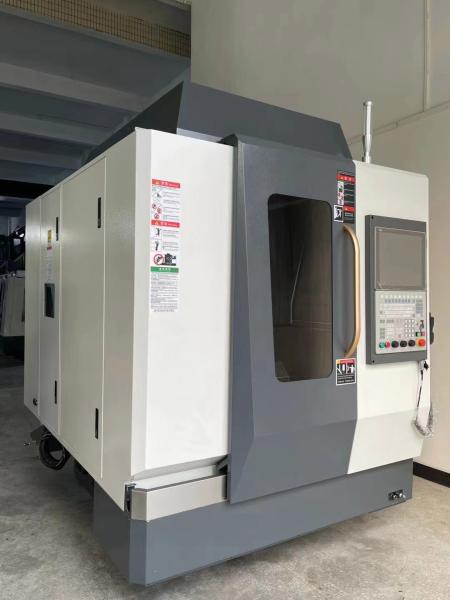

Efficiency 5 Axis CNC Machine Linkage Machining Center
Efficiency 5 Axis CNC Machine Linkage Machining Center
Efficiency 5 Axis CNC Machine Linkage Machining Center
Efficiency 5 Axis CNC Machine Linkage Machining Center
Efficiency 5 Axis CNC Machine Linkage Machining Center
Efficiency 5 Axis CNC Machine Linkage Machining Center
Specifications
Brand Name :
LiSN
Model Number :
LiSN-WZ650
Place of Origin :
China
Certification :
CE
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
60-70Work Days
Packaging Details :
wooden box
Controller :
CNC
Repeatability :
0.005 Mm
Maximum Tool Diameter :
300Mm
A-Axis Rotation :
±120°
Accuracy :
0.003 mm
Control System :
GSK/Siemens/HNC/SYNTEC
Max Load Capacity :
500 kg
Max Spindle Speed :
10,000 rpm
Maximum Speed :
15000Rpm
Power Supply :
380V/50Hz
Spindle Taper :
BT40
Tool Capacity :
24
Description

Maximize Efficiency And Precision With 5 Axis Linkage Machining

Product Description:

5 Axis Linkage Product Overview

The 5 Axis Linkage is a cutting-edge CNC machine that utilizes 5 Axis linkage technology to provide high precision, efficiency, versatility, and durability. With a maximum workpiece diameter of 1000 mm and a spindle speed of 12000 rpm, this product is designed to meet the demands of the most complex and demanding machining tasks.

The 5 Axis Linkage offers a maximum workpiece diameter of 1000 mm, providing a wide range of possibilities for machining large and complex parts. This makes it an ideal choice for industries such as aerospace, automotive, and mold making.

Spindle Speed: 15000 rpm

The spindle speed of 15000 rpm allows for high-speed and efficient cutting, reducing machining time and increasing productivity. This feature makes the 5 Axis Linkage a top choice for industries that require fast and precise machining.

Tool Magazine Capacity: 24.

Technical Parameters:

Item Specifications Unit LISN-WZ650
Work Table Work Table Size mm 650
A-Axis Swing Speed rpm 30
C-Axis Swing Speed rpm 50
Max.Load of Work Table kg 500
Work Range X-Axis Travel Range mm 750
Y-Axis Travel Range mm 800
Z-Axis Travel Range mm 600
Distance between Spindle Nose to Work Table mm 120-720
Spindle Spindle Tape type HSKA63
Spindle Speed Range r/min 15000-20000
Spindle Motor Kw 11
Control System system - GSK/Siemens/HNC/SYNTEC
Feedrate X/Y/Z Axis Rapid Feed Speed m/min 36/36/36
X/Y/Z Axis Feed Speed m/min 10
ATC Tool Capacity - 24
Position Accuracy X/Y/Z Axis Position Accuracy mm 0.005
A-Axis s ±40
C-Axis s ±25
Re-position Accuracy X/Y/Z Axis Re-position Accuracy mm 0.003
A-Axis s ±10
C-Axis s ±10

Applications:

The LiSN-WZ650 5 Axis Linkage CNC Machine is a high precision, efficient and versatile tool for machining a wide range of materials. It is designed and manufactured in China by LiSN, a leading brand in the CNC machine industry.

Application

The 5 Axis linkage technology of LiSN-WZ650 allows for simultaneous movement of the cutting tool in 5 different directions, making it ideal for complex machining tasks. This machine is widely used in industries such as aerospace, automotive, medical, and mold making.

Scene

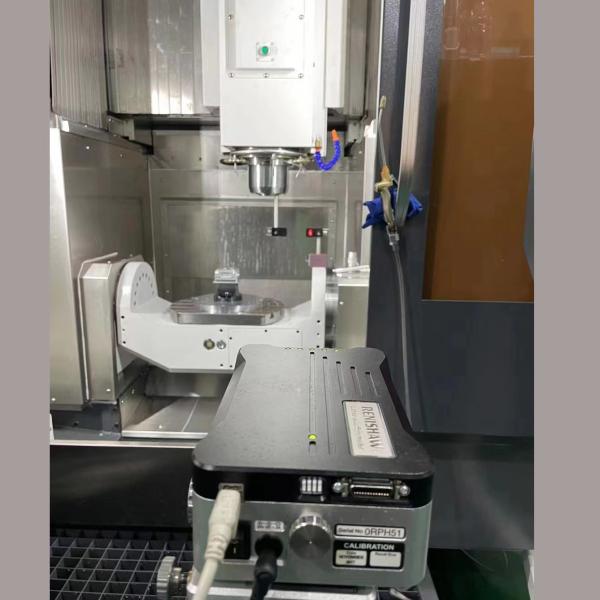

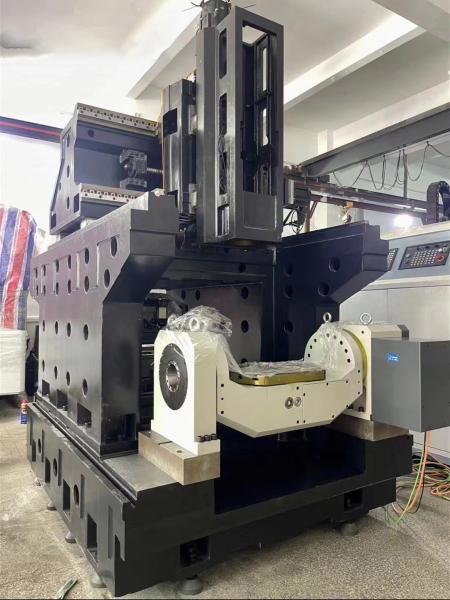

Product detail diagram:

Efficiency 5 Axis CNC Machine Linkage Machining CenterEfficiency 5 Axis CNC Machine Linkage Machining Center

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.

.
