Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy
Specifications
Brand Name :
LiSN
Model Number :
LiSN-WZ500
Place of Origin :
China
Certification :
CE
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
60-70 Work Days
Packaging Details :
Wooden box
Supply Ability :
10000 per year
Accuracy :
0.003 Mm
Power Supply :
AC 220V
Coolant System :
Oil Mist
Controller Type :
CNC
Tool Magazine Capacity :
20
Spindle Taper :
BT40
Maximum Speed :
15000Rpm
Description

Customizable 5 Axis Linkage Cnc Machine Tools With 15000RPm

Product Description:

5 Axis Linkage - CNC Machine Tool

The 5 Axis Linkage is a powerful CNC machine tool that offers precision, speed and flexibility for a wide range of machining applications. With its advanced 5-axis linkage system, this machine is capable of producing complex and intricate parts with high accuracy and efficiency.

Precision & Efficiency

The 5 Axis Linkage is designed to deliver exceptional precision and efficiency for a variety of machining needs. With its 5-axis linkage system, it is capable of simultaneous machining on multiple sides of a workpiece, reducing the number of setups and ensuring high accuracy.

Flexibility & Versatility

This CNC machine tool offers unparalleled flexibility and versatility, making it suitable for a wide range of industries and applications. It can handle a variety of materials, including metals, plastics, and composites, and can be used for milling, turning, drilling, and other machining processes.

User-Friendly Design

The 5 Axis Linkage is designed with user-friendliness in mind. Its intuitive interface and easy-to-use controls make it suitable for both experienced machinists and beginners. The machine also comes with a tool magazine capacity of 24, allowing for a seamless and efficient tool changeover process.

Advanced Technology

Equipped with the latest CNC technology, the 5 Axis Linkage offers high-speed machining capabilities with a maximum speed of 15000 Rpm. This allows for faster production times and increased productivity, making it a valuable asset for any manufacturing facility.

Conclusion

The 5 Axis Linkage is a top-of-the-line CNC machine tool that combines precision, efficiency, flexibility, and advanced technology to meet the demands of modern manufacturing. With its 5-axis linkage system, it offers a cost-effective and reliable solution for producing complex and high-quality parts. Invest in the 5 Axis Linkage today and take your machining capabilities to the next level.

Technical Parameters:

Item Specifications Unit Parameters of LISN-WZ500 Parameters of LISN-WZ650
Work Table Work Table Size mm 500 650
A-Axis Swing Angle ° ±120 ±120
C-Axis Swing Angle ° 360 360
A-Axis Swing Speed rpm 30 30
C-Axis Swing Speed rpm 50 50
Max.Load of Work Table kg 200 500
Work Range X-Axis Travel Range mm 600 750
Y-Axis Travel Range mm 700 800
Z-Axis Travel Range mm 450 600
Distance between Spindle Nose to Work Table mm 120-570 120-720
Spindle Spindle Tape type HSKA63 HSKA63
Spindle Speed Range r/min 15000 15000-20000
Spindle Motor Kw 11 11
Control System system - GSK/Siemens/HNC/SYNTEC GSK/Siemens/HNC/SYNTEC
Feedrate X/Y/Z Axis Rapid Feed Speed m/min 24/24/24 36/36/36
X/Y/Z Axis Lead Screw - 4012/5012/4012 4012/5512/4012
X/Y/Z Axis Feed Speed m/min 10 10
ATC Type - HSKA63 HSKA63
Tool Capacity - 20 24
Max.Tool Length mm 300 300
Position Accuracy A-Axis s ±40 ±40
C-Axis s ±25 ±25
Re-position Accuracy X/Y/Z Axis Re-position Accuracy mm 0.003 0.003
A-Axis s ±4 ±10
Total Electrical Capacity KVA 35 35
Machine Dimenssion Size mm 2500×2900×3000 2400×3100×3300
Net Weight kg 12000 16000

Applications:

5 Axis Linkage is a revolutionary CNC machine that offers precision, efficiency and accuracy in 5 Axis linkage machining. It is designed and manufactured in China by LiSN, a leading company in the field of CNC machines.

This advanced 5 Axis linkage machining technology allows for multi-tasking, making it ideal for a wide range of industries such as automotive, aerospace, medical, industrial, and manufacturing. With 5 Axis linkage capability, LiSN-WZ500 is able to perform complex machining operations in a single setup, reducing production time and increasing productivity.

The precision and accuracy of LiSN-WZ500 makes it a popular choice for product design and engineering. With 5 Axis linkage, it is able to produce intricate and complex designs with high precision, making it a valuable tool for product development and prototyping.

Packing and Shipping:

Packaging and Shipping for 5 Axis Linkage
Packaging:

The 5 Axis Linkage product will be carefully packaged to ensure safe and secure delivery. It will be packaged in a sturdy cardboard box with appropriate cushioning materials to protect the product from any damage during shipping.

Shipping:

Our company offers worldwide shipping for the 5 Axis Linkage product. We use reliable carriers to ensure timely and safe delivery of the product to our customers. The shipping cost will be calculated based on the destination and weight of the product.

Customers can also choose to use their own preferred shipping method and provide us with the necessary details for the shipment. Please note that any additional charges or taxes incurred during shipping will be the responsibility of the customer.

Once the product is shipped, customers will receive a tracking number to monitor the delivery status of their product. Our team will also provide regular updates on the shipping process to ensure a smooth and hassle-free experience for our customers.

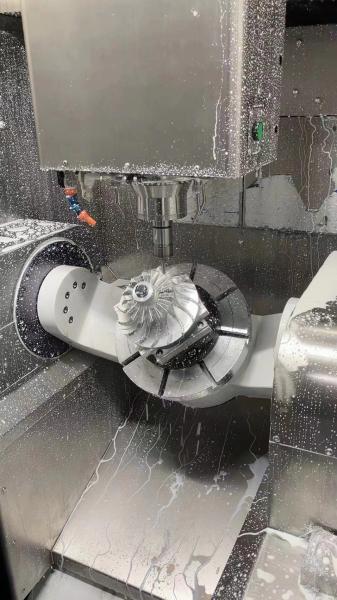

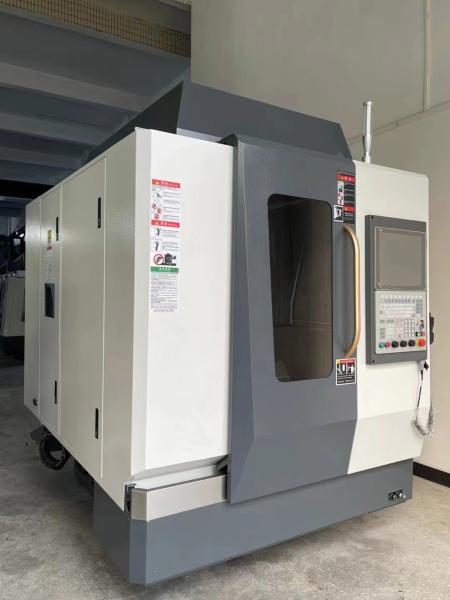

Product detail diagram

Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy

Customizable 5 Axis Linkage Cnc Machine Tools 15000RPm High Accuracy

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
