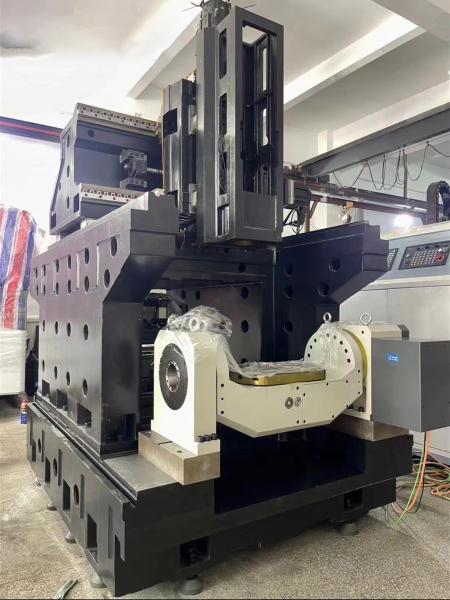

High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm
Specifications
Brand Name :
LiSN
Model Number :
LiSN-WZ650
Place of Origin :
China
Certification :
CE
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
60-70Work Days
Packaging Details :
Wooden box
Weight :
5000 Kg
Repeatability :
0.005 Mm
Tool Magazine Capacity :
24ATC
Maximum Workpiece Height :
1000 Mm
Spindle Speed :
15000-20000 Rpm
Power Supply :
AC 220V
Coolant System :
Oil Mist
Description

High Precision 5 Axis Linkage for Maximum Workpiece Height 1000 Mm at 15000 Rpm

Product Description:

5 Axis Linkage CNC Machine - High Precision and Flexibility
Product Overview

The 5 Axis Linkage CNC Machine is a cutting-edge product designed for high precision and efficiency in machining processes. With its advanced 5-axis linkage system, this machine offers unparalleled flexibility and accuracy in machining complex and intricate parts.

Maximum Tool Length: 300 mm

The 5 Axis Linkage CNC Machine has a maximum tool length of 500 mm, making it suitable for a wide range of machining tasks. This feature allows for the use of longer tools, enabling the machine to handle larger and more complex workpieces.

Maximum Load Capacity: 500 kg
  • 5 Axis Linkage System
  • High Precision
  • Multi-Axis Machining
  • Flexibility
  • Efficiency

With its advanced technology and key features, the 5 Axis Linkage CNC Machine is an ideal choice for industries that require high precision and flexibility in their machining processes. This machine offers superior performance and reliable results, making it a valuable asset for any manufacturing operation.

Technical Parameters:

Item Specifications Unit Parameters of LISN-WZ650
Work Table Work Table Size mm 650
A-Axis Swing Speed rpm 30
C-Axis Swing Speed rpm 50
Max.Load of Work Table kg 500
Work Range X-Axis Travel Range mm 750
Y-Axis Travel Range mm 800
Z-Axis Travel Range mm 600
Distance between Spindle Nose to Work Table mm 120-720
Spindle Spindle Tape type HSKA63
Spindle Speed Range r/min 15000-20000
Control System system - GSK/Siemens/HNC/SYNTEC
Feedrate X/Y/Z Axis Rapid Feed Speed m/min 36/36/36
X/Y/Z Axis Lead Screw - 4012/5512/4012
X/Y/Z Axis Feed Speed m/min 10
ATC Type - HSKA63
Tool Capacity - 24
Position Accuracy X/Y/Z Axis Position Accuracy mm 0.005
A-Axis s ±40
C-Axis s ±25
Re-position Accuracy X/Y/Z Axis Re-position Accuracy mm 0.003
A-Axis s ±10
C-Axis s ±10
Total Electrical Capacity KVA 35
Machine Dimenssion Size mm 2400×3100×3300

Product details:

High Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 RpmHigh Precision 5 Axis CNC Machine For Maximum Workpiece Height 1000Mm 15000 Rpm

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
