11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control
Specifications
Brand Name :
LiSN
Model Number :
LiSN-WZ500
Place of Origin :
China
Certification :
SGS
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10000 per year
Delivery Time :
60-70Work Days
Packaging Details :
wooden box
Spindle Power :
11 KW
Maximum Tool Diameter :
300 Mm
Controller Type :
CNC
Coolant System :
Oil Mist
Spindle Speed :
15000 Rpm
Accuracy :
0.003 mm
Maximum Load Capacity :
500 Kg
Control System :
GSK/Siemens/HNC/SYNTEC
Power Supply :
AC 220V/380V
Tool Changer Capacity :
20
X/Y/Z Axis Feed Speed :
10m/min
Description

11 KW Spindle Power 5 Axis Linkage CNC Machine Tools A-Axis Swing Angle 120°

Product Description:

5 Axis Linkage - The Ultimate CNC Machine for High Precision and Efficiency

The 5 Axis Linkage is a revolutionary CNC machine designed for industrial use. With its advanced 5 axis linkage system, this machine offers unparalleled precision and efficiency for all your manufacturing needs. Whether you are a small business or a large corporation, the 5 Axis Linkage is the perfect solution for all your machining requirements.

Maximum Load Capacity: 500Kg

The 5 Axis Linkage has an impressive maximum load capacity of 500 Kg, making it suitable for handling heavy and large workpieces with ease. This means you can work on a variety of materials, including metal, plastics, and composites, without worrying about weight limitations.

Power Supply: AC 220V

Equipped with a powerful AC 220V power supply, the 5 Axis Linkage ensures stable and consistent performance, even for extended periods of use. This makes it an ideal choice for high-volume production and demanding industrial applications.

Maximum Tool Length: 500 Mm

With a maximum tool length of 300 mm, the 5 Axis Linkage offers versatility in machining. This allows for the use of longer tools, expanding the range of operations and increasing efficiency. You can easily switch between different tools without the need for frequent tool changes, saving you time and effort.

Repeatability: 0.005 Mm

One of the most outstanding features of the 5 Axis Linkage is its exceptional repeatability of 0.005 mm. This means that the machine can reproduce the same precise movements repeatedly, ensuring consistent and accurate results every time. This level of precision is essential for applications that require tight tolerances and superior surface finish.

Maximum Tool Diameter: 100 Mm

The 5 Axis Linkage has a maximum tool diameter of 100 mm, allowing for the use of larger cutting tools. This enables you to tackle more complex machining tasks, such as deep pocket milling and 3D contouring, with ease and efficiency.

Overall, the 5 Axis Linkage is a top-of-the-line CNC machine that combines advanced technology, high precision, and durability to deliver exceptional performance. With its 5 axis linkage system, it offers unmatched flexibility and efficiency, making it the perfect choice for any industrial setting. Invest in the 5 Axis Linkage today and take your manufacturing capabilities to the next level.

Technical Parameters:

Item Specifications Unit LiSN-WZ500
Work Table Work Table Size mm 500
A-Axis Swing Angle ° ±120
C-Axis Swing Angle ° 360
A-Axis Swing Speed rpm 30
C-Axis Swing Speed rpm 50
Max.Load of Work Table kg 200
Work Range X-Axis Travel Range mm 600
Y-Axis Travel Range mm 700
Z-Axis Travel Range mm 450
Distance between Spindle Nose to Work Table mm 120-570
Spindle Spindle Speed Range r/min 15000
Spindle Motor Kw 11
Feedrate X/Y/Z Axis Rapid Feed Speed m/min 24/24/24
X/Y/Z Axis Feed Speed m/min 10
ATC Tool Capacity - 20
Position Accuracy X/Y/Z Axis Position Accuracy mm 0.005
A-Axis s ±40
C-Axis s ±25
Re-position Accuracy X/Y/Z Axis Re-position Accuracy mm 0.003
A-Axis s ±4
C-Axis s ±4
Total Electrical Capacity KVA 35
Machine Dimenssion Size mm 2500×2900×3000

Product details:

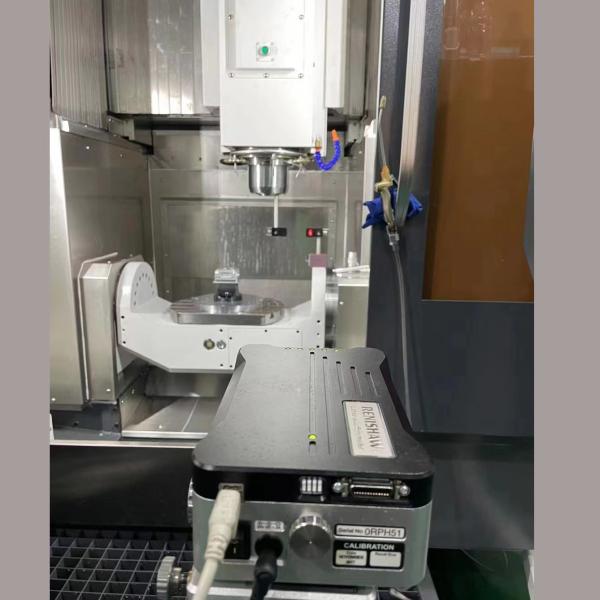

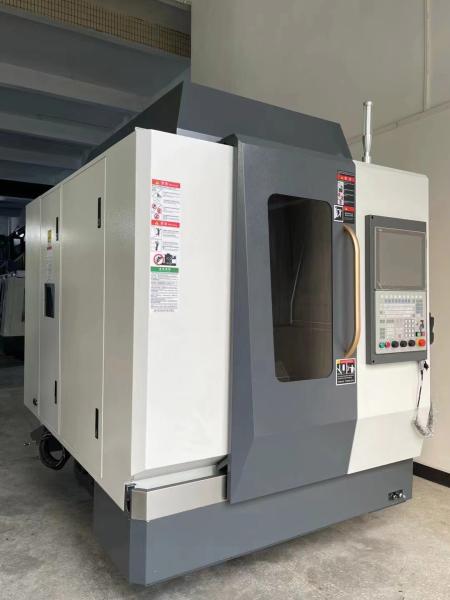

11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control

11KW Spindle Power 5 Axis CNC Machine Tools A Axis Swing Angle 120° Siemen Control

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
