Specifications
Supply Ability :
1000000/Month
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Certification :
ISO9001
Place of Origin :
CHINA
Delivery Time :
15 working days
Sleeve :
316L Stainless Steel
Rotary Drive Screws :
Stainless Steel
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
MOQ :
1pc
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Packaging Details :
Carton
Model Number :
AGCD
Gland :
316 Stainless Steel
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Brand Name :
BESTSEAL
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

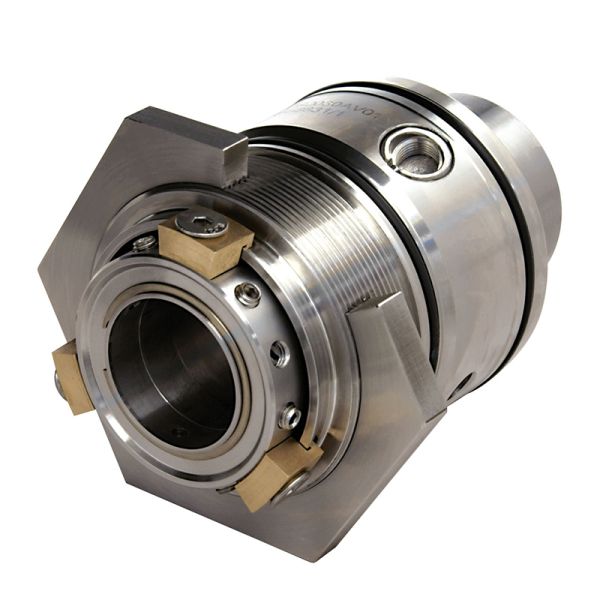

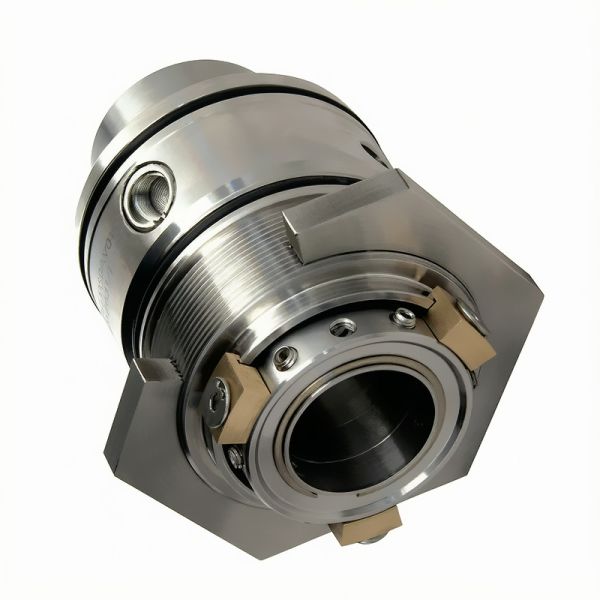

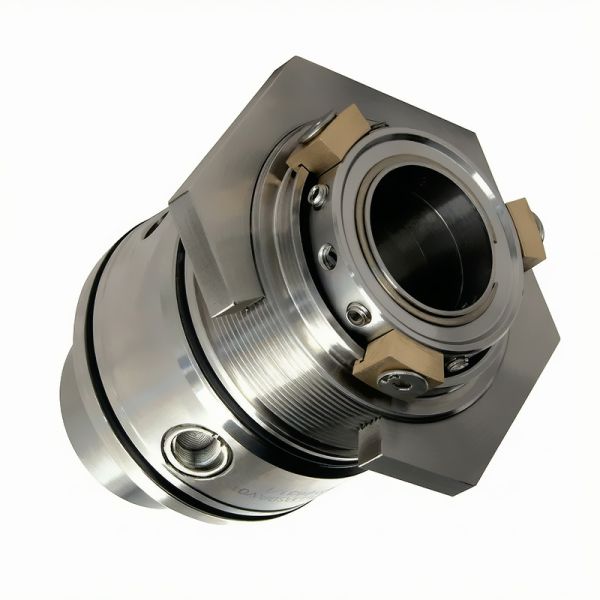

AESSEAL AGCD Multi Spring Double Glandless Cartridge Mechanical Seal for Sulzer Ahlstar Pump

Cartridge Mechanical Seals

Double Seals

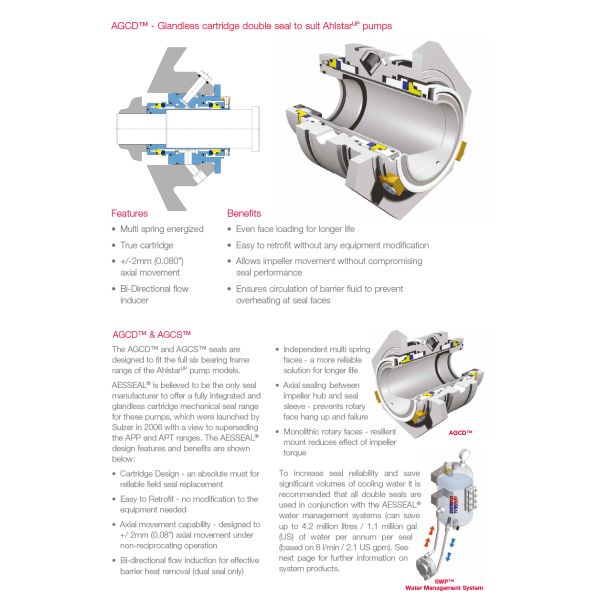

AGCD

Double Glandless Cartridge Seal to suit the Sulzer AhlstarUP

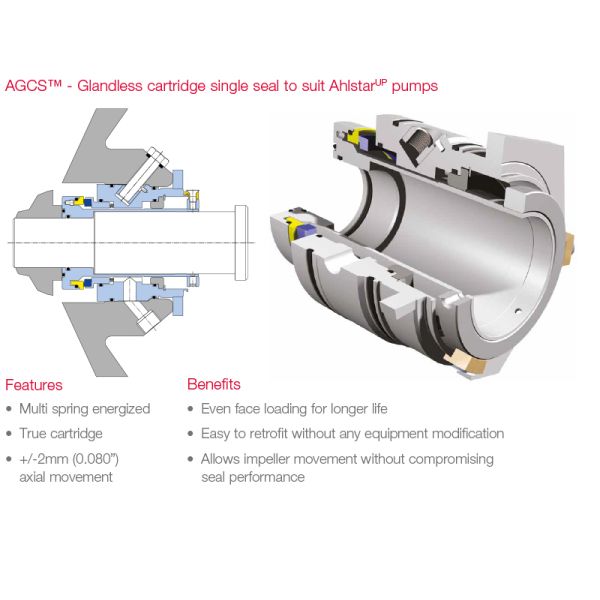

The AGCD™ and AGCS™ seals are designed to fit the full six bearing frame range of the AhlstarUP pump models. AESSEAL® is believed to be the only seal manufacturer to offer a fully integrated and glandless cartridge mechanical seal range for these pumps which were launched by Sulzer in 2006 with a view to superseding the APP and APT ranges.

Features

  • Multi spring energized
  • True cartridge
  • +/-2mm (0.080”)axial movement

Benefits

  • Even face loading for longer life
  • Easy to retrofit without any equipment modification
  • Allows impeller movement without compromising seal performance
  • Ensures circulation of barrier fluid to prevent overheating at seal faces

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
