Specifications
Stationary Face :
TC / Ceramic / SiC
Gland :
316 Stainless Steel
Model Number :
CFFC - HPVD
Delivery Time :
15 working days
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
MOQ :
1pc
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Certification :
ISO9001
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Setting Clips :
Zinc Alloy / Metal
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Spacer Ring :
316L Stainless Steel
Rotary Drive Screws :
Stainless Steel
Brand Name :
BESTSEAL
Drive Screws :
Stainless Steel
Gasket :
AF1 / GFT
Clamp Ring :
316L Stainless Steel
Sleeve :
316L Stainless Steel
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Place of Origin :
CHINA
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Packaging Details :
Carton
Anti-tamper Screws :
Stainless Steel
Supply Ability :
1000000/Month
Description

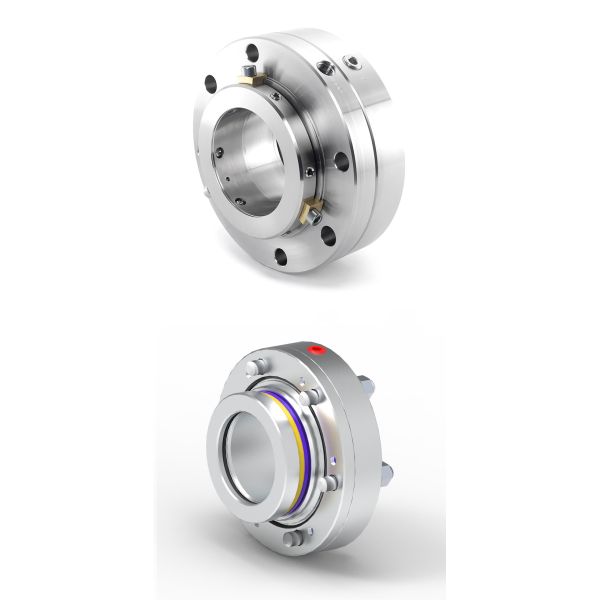

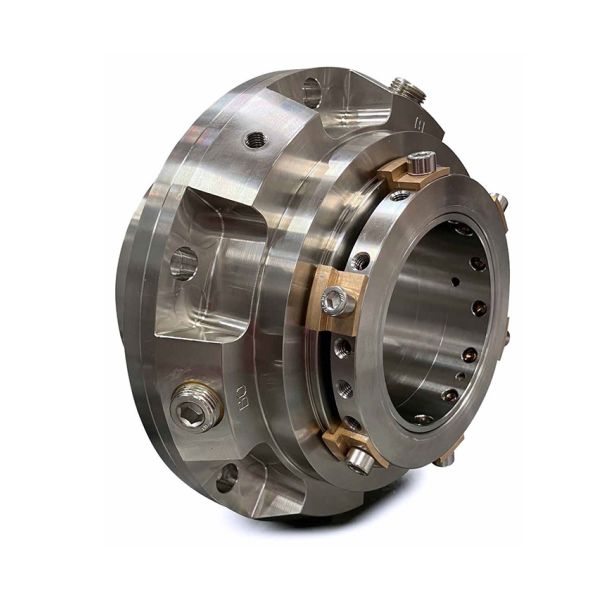

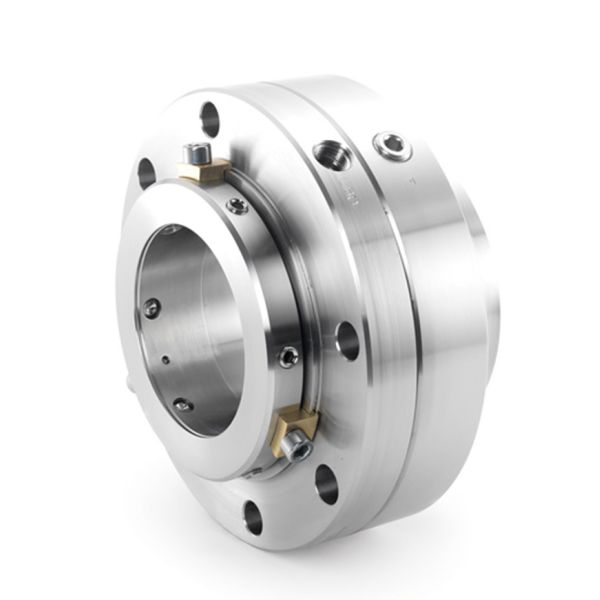

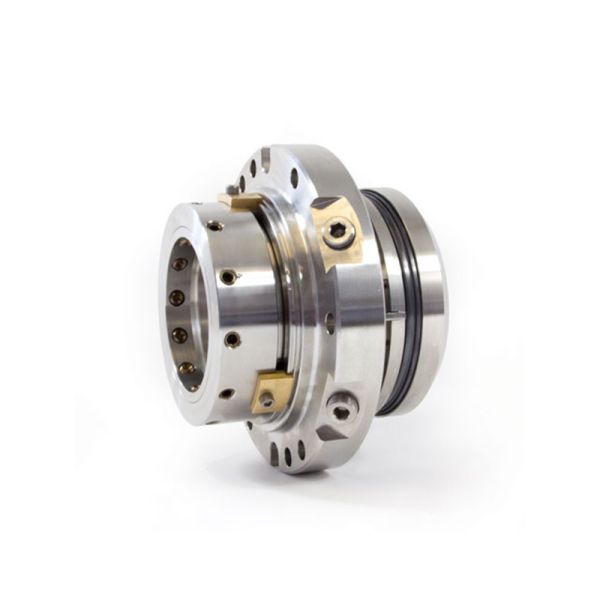

AESSEAL CFFC HPVD Double Seals High Performance Cartridge Mechanical Seal for Pumps

Cartridge Mechanical Seals

Double Seals

CFFC - HPVD

High Performance Mechanical Seal

The CFFC™ and HPVD™ are dual seals. (The CFC™ and HPVS™ are the single versions.)

The AESSEAL® CDP™/CDPN™ range of cartridge mechanical seals has been designed as high-performance sealing solutions for general applications.

These products build on over a decade of proven performance from the AESSEAL® CURC™ and FIDC™ range of seals. They combine this with cutting-edge manufacturing techniques to represent the best value-for-money sealing solutions available today.

These robust seals are designed for use on difficult applications, including oil pipeline pumping, water injection and boiler feed duties.

Features

  • High speeds - Stationary multi-spring design for even face loading
  • High pressures - Robust seal-faces minimize the effects of pressure distortion
  • Monolithic seal-faces - maintain flatness under temperature fluctuations
  • Axial displacement capacity to accommodate machine build tolerance and differential thermal expansions
  • Seal face design optimized using FEA and hydrodynamic algorithms
  • Seal-face loading factory set and statically tested prior to despatch
  • Sculpted lug drive for improved torque transmission
  • Compact and robust design allows seal to be fitted on close bearing centre pumps

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
