BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
BDTP Cartridge Mechanical Seals Tandem Elastomer Bellows Double Seal For Pumps
Specifications
Rotary Bellows Face - HHH :
Alloy C276 - Alloy C276 - Alloy C276 - Carbon / TC / SiC / Antimony Carbon
Rotary Holder ‘O’ Ring :
FKM / EPR / FFKM / TFE/P
Packaging Details :
Carton
Rotary Face - SHS :
316L SS - Alloy C276 - 316L SS - Carbon / SiC / TC / Antimony Carbon
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Sleeve ‘O’ Ring :
FKM / EPR / FFKM / TFE/P
Settings Clips :
Brass
Brand Name :
BESTSEAL
Stationary Face :
SiC / TC
Gland Insert ‘O’ Ring :
FKM / EPR / FFKM / TFE/P
Clamp Ring :
316L Stainless Steel
Model Number :
BDTP
Supply Ability :
1000000/Month
Place of Origin :
CHINA
Certification :
ISO9001
Rotary Bellows Face - SAC :
316L SS - AM350 - Alloy 42 - Carbon / TC / SiC / Antimony Carbon
Gland Insert :
316L Stainless Steel
Circlip :
Stainless Steel
Stationary ‘O’ Ring :
FKM / EPR / FFKM / TFE/P
Snap Ring :
Stainless Steel
Rotary Wedge :
Graphite
Gasket :
AF1 / GFT / Graphite
Rotary Bellows Face - SHS :
316L SS - Alloy C276 - 316L SS - Carbon / TC / SiC / Antimony Carbon
Screws :
Stainless Steel / Alloy C276
Drive Screws :
Stainless Steel
Gland :
316 Stainless Steel
Deflector :
316L Stainless Steel
MOQ :
1pc
Anti Tamper Screws :
Stainless Steel
Delivery Time :
15 working days
Sleeve :
316L Stainless Steel
Setting Clip Screws :
Stainless Steel
Description

AESSEAL BDTP Cartridge Mechanical Seals Tandem Bellows Double Seal for Pumps

Cartridge Mechanical Seals

Bellows Seals

BDTP

Bellows Double Seal

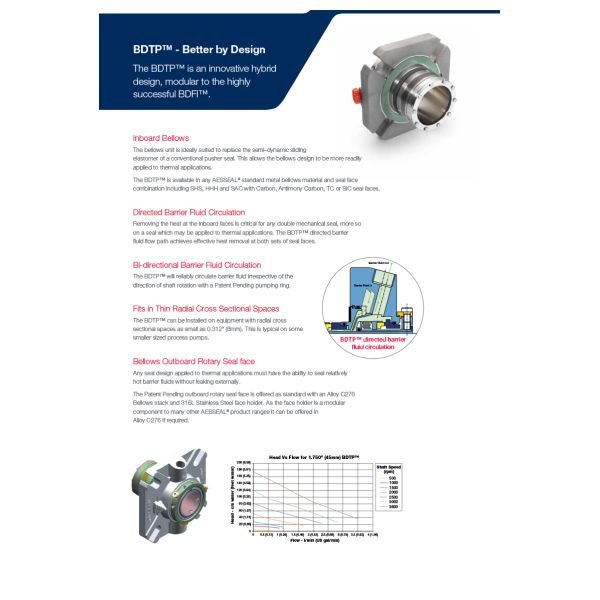

The BDTP™ (Bellows Double Tandem Pumping) is a highly-innovative hybrid design, modular to the BDFI™. The seal's directed barrier fluid flow path achieves optimum heat removal at both sets of seal faces. The inboard bellows unit is ideally suited to replace the semi-dynamic sliding elastomer of a conventional pusher type seal which allows it to be more readily applied to thermal applications.

Features

  • Inboard bellows unit ideally situated to replace sliding elastomer of conventional pusher type seal
  • Integral bi-directional flow inducer
  • Fits on pumps with thin radial cross sectional spaces
  • 50% more bellows than industry standard reduces stress on each convolution of bellows stack
  • Modular design enables use on multiple applications, simplicity of purchase and fast delivery

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
BESTSEAL Cartridge Mechanical Seal
Your Fast-Track Alternative to AESSEAL BDTP
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
