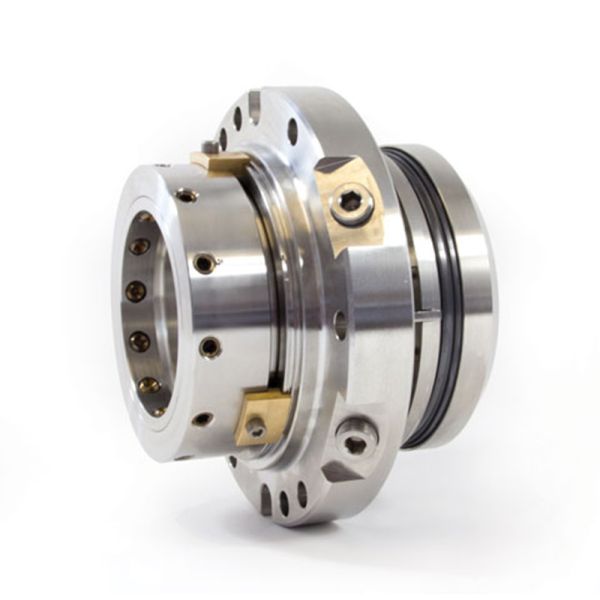

AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps
Specifications
Delivery Time :
15 working days
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gland :
316 Stainless Steel
Model Number :
CFC - HPVS
Rotary Drive Screws :
Stainless Steel
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
MOQ :
1pc
Packaging Details :
Carton
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Spacer Ring :
316L Stainless Steel
Gasket :
AF1 / GFT
Supply Ability :
1000000/Month
Stationary Face :
TC / Ceramic / SiC
Setting Clip Screws :
Stainless Steel
Clamp Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clips :
Zinc Alloy / Metal
Anti-tamper Screws :
Stainless Steel
Certification :
ISO9001
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Place of Origin :
CHINA
Sleeve :
316L Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Brand Name :
BESTSEAL
Drive Screws :
Stainless Steel
Description

AESSEAL CFC HPVS High Performance Single Cartridge Mechanical Seals for Pumps

Cartridge Mechanical Seals

Single Seals

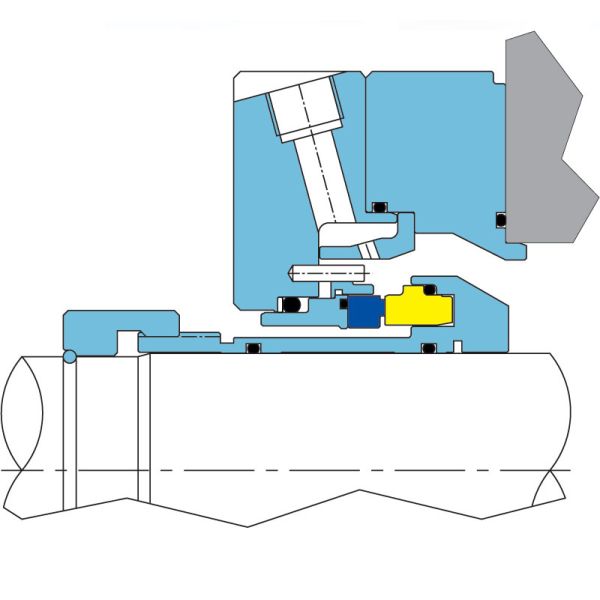

CFC - HPVS

High Performance Mechanical Seal

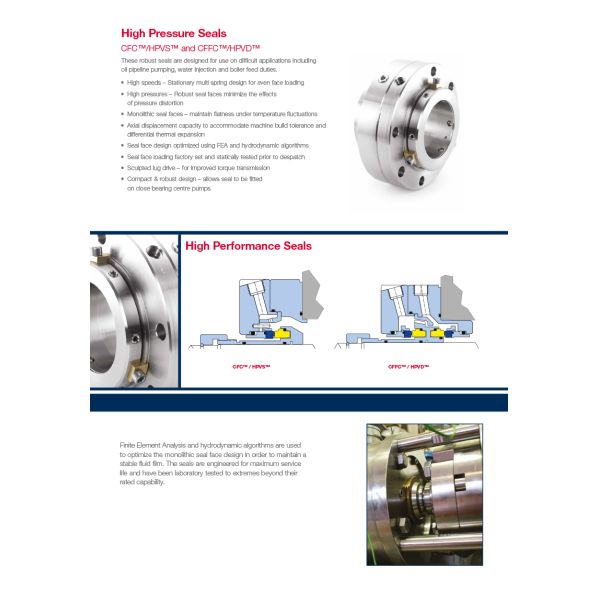

The CFC™ and HPVS™ are single seals (The CFFC™ and HPVD™ are the dual versions).

These robust seals are designed for use on difficult applications, including oil pipeline pumping, water injection and boiler feed duties.

  • High speeds - Stationary multi-spring design for even face loading
  • High pressures - Robust seal-faces minimize the effects of pressure distortion
  • Monolithic seal-faces - maintain flatness under temperature fluctuations
  • Axial displacement capacity to accommodate machine build tolerance and differential thermal expansions
  • Seal face design optimized using FEA and hydrodynamic algorithms
  • Seal-face loading factory set and statically tested prior to despatch
  • Sculpted lug drive for improved torque transmission
  • Compact and robust design allows seal to be fitted on close bearing centre pumps

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
BESTSEAL Cartridge Mechanical Seal
Your Fast-Track Alternative to AESSEAL CFC - HPVS
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
