Specifications
Supply Ability :
1000000/Month
MOQ :
1pc
Stationary ‘O’ Ring :
EPR / FFKE / FKM / TFE/P
Snap Ring :
Stainless Steel
Settings Clips :
Brass
Setting Clip Screws :
Stainless Steel
Certification :
ISO9001
Sleeve ‘O’ Ring :
EPR / FFKE / FKM / TFE/P
Rotary Face :
SiC / TC
Anti Tamper Screws :
Stainless Steel
Rotary Bellows Face - SAC :
316L SS - AM350 - C42 - Carbon / TC / SiC / Ant Car
Gland Insert :
316L Stainless Steel
Rotary ‘O’ Ring :
EPR / FFKE / FKM / TFE/P
Screws :
Stainless Steel / Alloy 276
Delivery Time :
15 working days
Stationary Face :
Carbon / SiC / TC / Ant Car
Gland Insert ‘O’ Ring :
EPR / FFKE / FKM / TFE/P
Drive Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Brand Name :
BESTSEAL
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC / Ant Car
Rotary Holder ‘O’ Ring :
EPR / FFKE / FKM / TFE/P
Springs :
Alloy 276
Gland :
316 Stainless Steel
Rotary Holder :
316 Stainless Steel
Gasket :
AF1 / GFT
Packaging Details :
Carton
Rotary Wedge :
Graphite
Drive Screws :
Stainless Steel
Circlip :
Stainless Steel
Rotary Bellows Face - SHS :
316L SS - Alloy 276 - 316L SS - Carbon / TC / SiC / Ant Car
Clamp Ring :
316L Stainless Steel
Model Number :
BDFI - BDFC
Deflector :
316L Stainless Steel
Place of Origin :
CHINA
Sleeve :
316L SS
Spring Plate :
316L Stainless Steel
Description

AESSEAL BDFI BDFC Cartridge Mechanical Seals Bellows Double Flow Induction Convection

Cartridge Mechanical Seals

Bellows Seals

BDFI - BDFC

Bellows Double Flow Induction / Convection

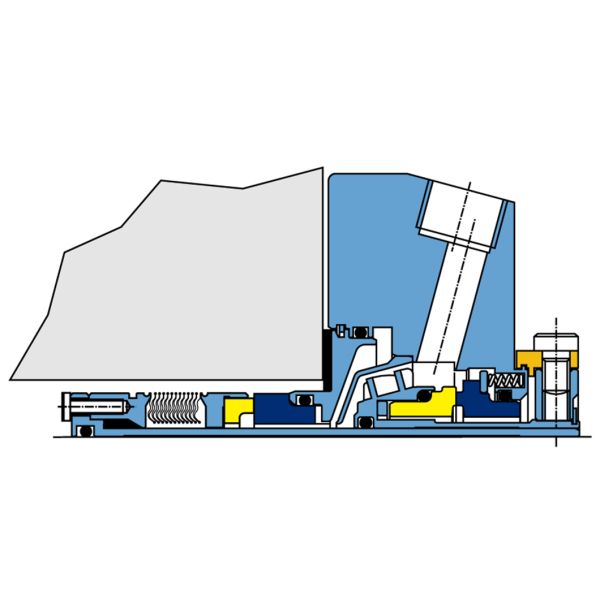

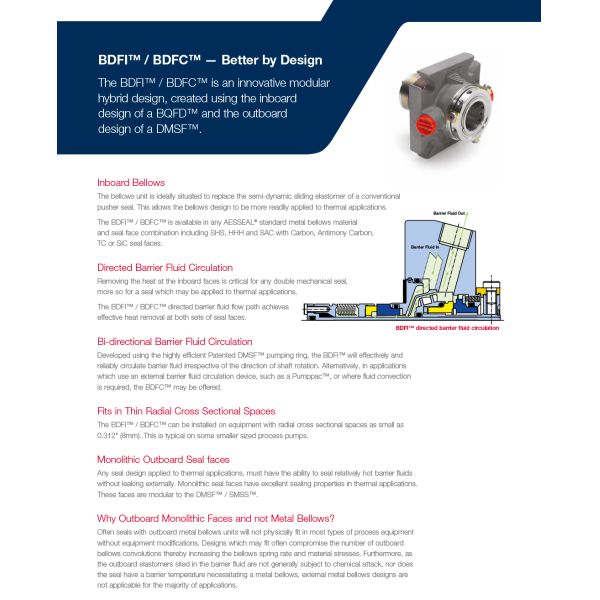

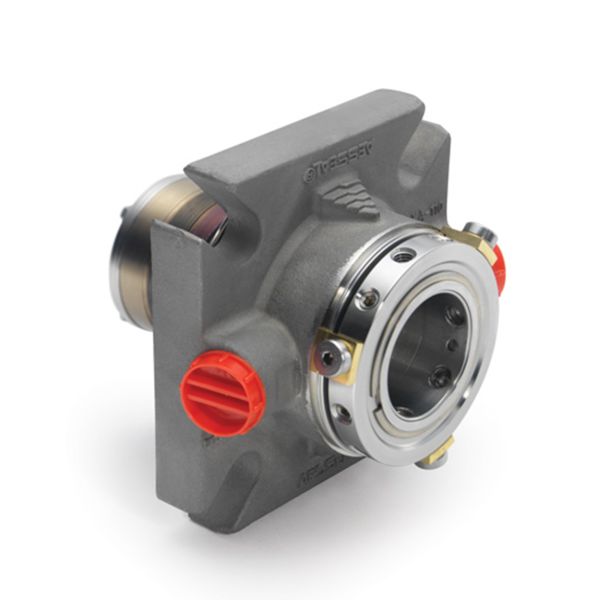

The BDFI™/BDFC™ (Bellows Double Flow Induction/Convection) is an innovative modular hybrid design, created using the inboard design of a BQFD™ and the outboard design of a DMSF™.

Features

  • Incorporates pumping ring to maximize cooling and increase seal life
  • Large 3/8" ports maximize cooling and extend seal life
  • Integral deflector guides cooling barrier fluid to the most essential areas
  • Sizes available from 1.000" to 5.000" (24mm - 125mm) in standard and ANSI Plus gland formats

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 24mm-125mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
