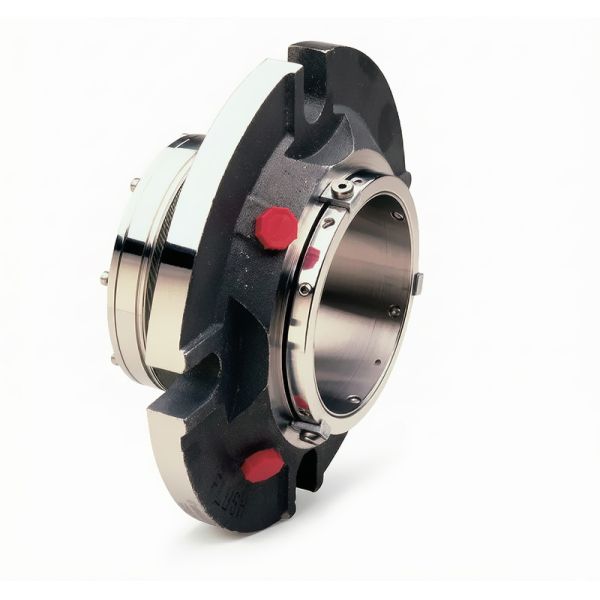

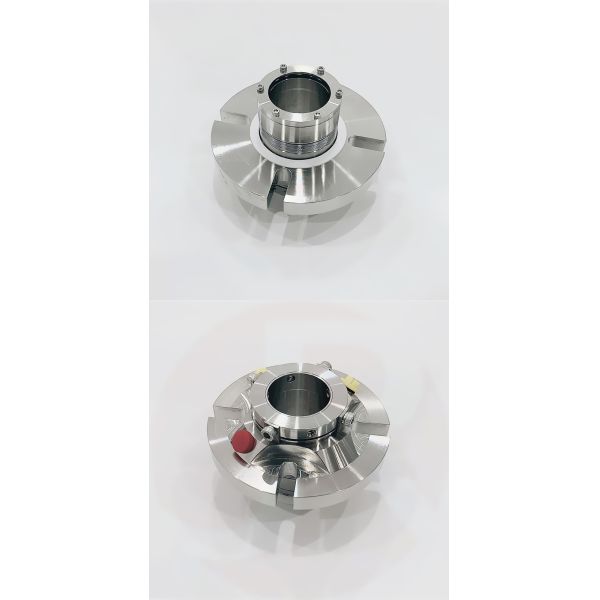

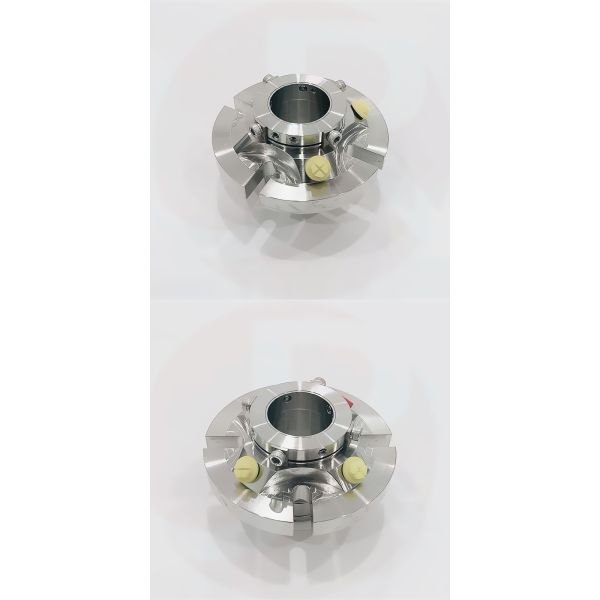

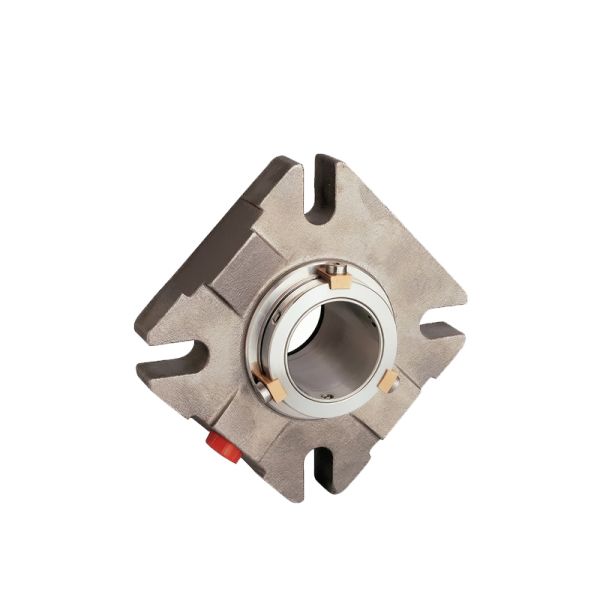

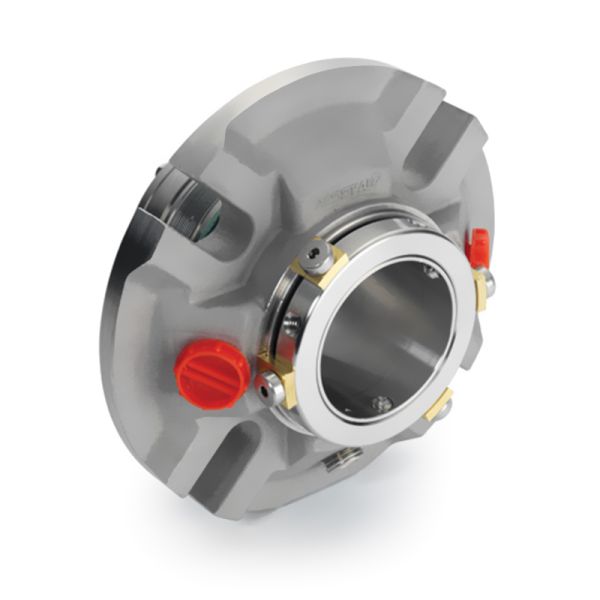

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
Specifications
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Packaging Details :
Carton
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Delivery Time :
15 working days
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Place of Origin :
CHINA
Model Number :
BQFD
Brand Name :
BESTSEAL
Setting Clips :
Zinc Alloy / Metal
Sleeve :
316L Stainless Steel
Supply Ability :
1000000/Month
Certification :
ISO9001
Rotary Drive Screws :
Stainless Steel
Gland :
316 Stainless Steel
MOQ :
1pc
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals


Cartridge Mechanical Seals

Bellows Seals

BQFD

Bellows Single Cartridge Seal

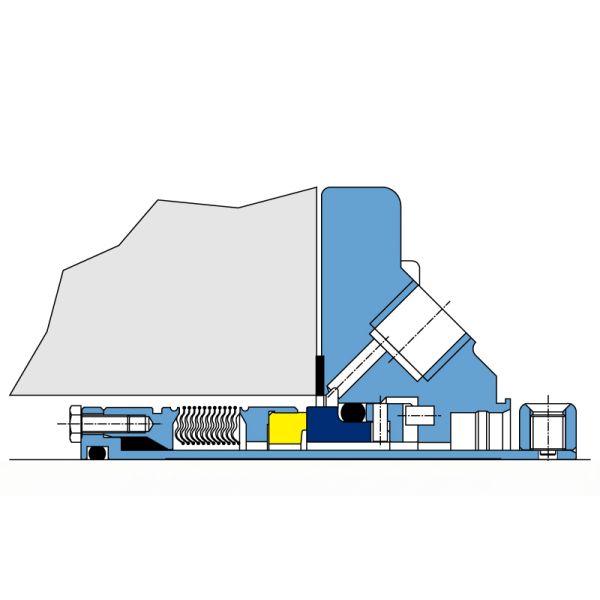

The BQFD™ (Bellows Quench Flush Drain) range of single cartridge mechanical seals uses many of the same modular parts as a BSIV™ but has the added features of Quench and Drain, making it usable in more diverse applications.

Features

  • Cartridge design for reliable installation
  • Hydraulically balanced seal face loading, which maximizes seal life and allows for vacuum service capability
  • The BQFD™ range has quench flush and drain ports with optional restriction bush (BQFD-R)
  • BQFD™ sizes available from 1.000" to 5.000" (24mm - 125mm)

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 24mm-100mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals

AESSEAL BQFD Metal Bellows Single Cartridge Mechanical Seals
