Specifications
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Certification :
ISO9001
Sleeve :
316L Stainless Steel
Packaging Details :
Carton
Rotary Drive Screws :
Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Brand Name :
BESTSEAL
Place of Origin :
CHINA
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Gland :
316 Stainless Steel
Supply Ability :
1000000/Month
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Model Number :
DMSF - DMSC
Delivery Time :
15 working days
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
MOQ :
1pc
Description

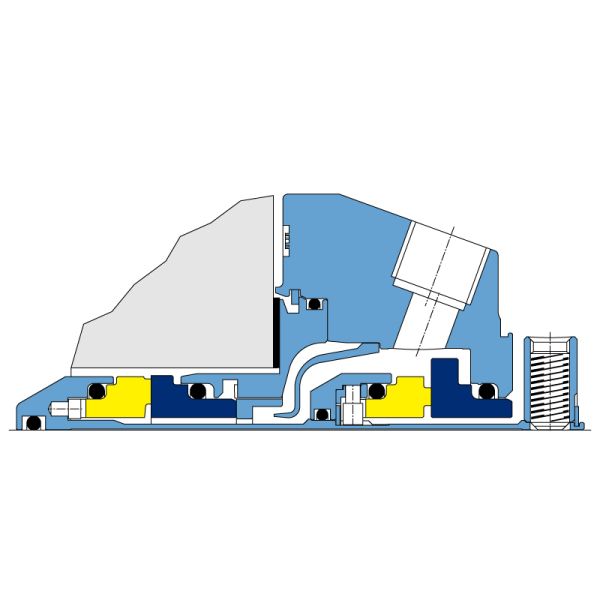

AESSEAL DMSF DMSC Double Monolithic Stationary Flow Convection Cartridge Mechanical Seals for Pumps

Cartridge Mechanical Seals

Double Seals

DMSF - DMSC

Double Monolithic Stationary Flow / Convection

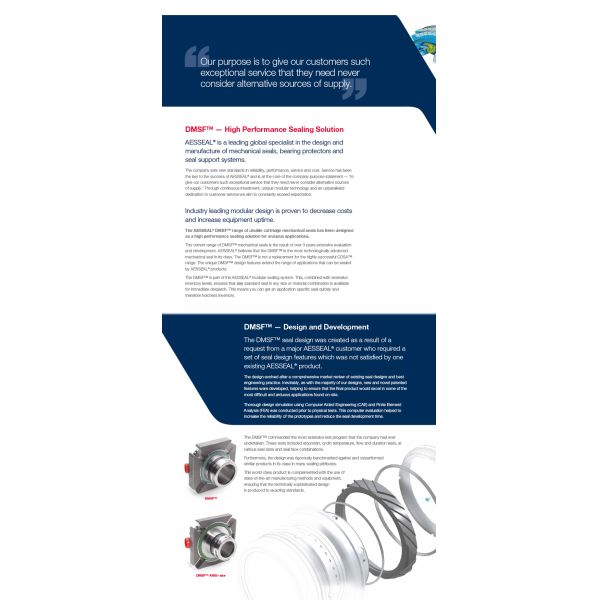

The AESSEAL® DMSF™ range of double cartridge mechanical seals has been designed as a high performance sealing solution for arduous applications.

The current range of DMSF™ mechanical seals is the result of over 3 years extensive evaluation and development. AESSEAL® believes that the DMSF™ is the most technologically advanced mechanical seal in its class. The DMSF™ is not a replacement for the highly successful FIDC™ range. The unique DMSF™ design features extend the range of applications that can be sealed by AESSEAL® products.

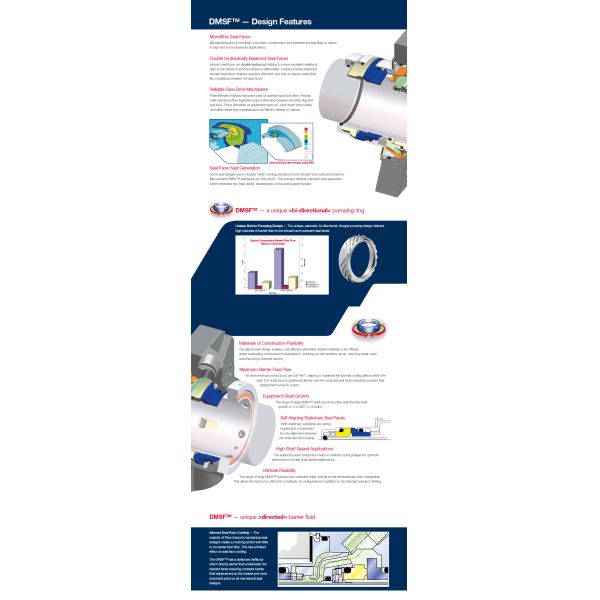

Features

  • Improve plant uptime and reduce maintenance costs
  • World-leading barrier fluid pumping and seal face cooling
  • Designed to withstand barrier and process pressure fluctuations
  • Internationally patented design

Unique bi-directional pumping ring

The unique, patented, bi-directional, integral pumping design delivers high volumes of barrier fluid to the inboard and outboard seal faces.

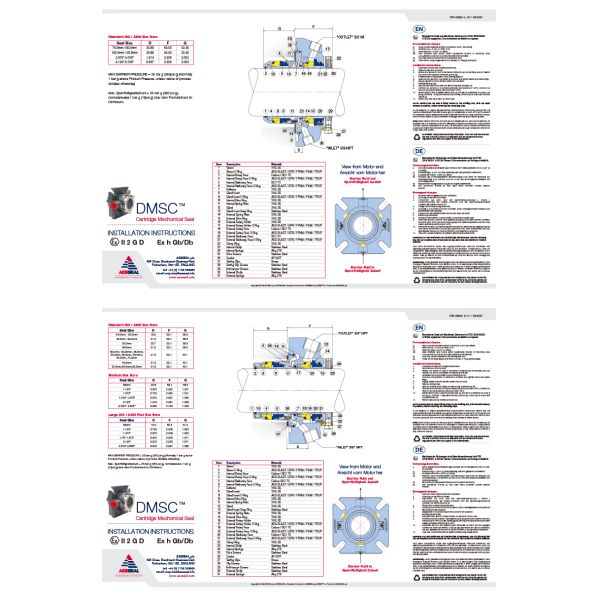

DMSC™

Double Monolithic Stationary Convection

The DMSC™ mechanical seal is supplied without an integral pumping scroll, making it ideal for applications that demand an external forced circulation device (API Plan 54). Such devices include the AESSEAL® PUMPPAC™ and FDU SYSTEM™.

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
