DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
Specifications
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
Brand Name :
BESTSEAL
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Certification :
ISO9001
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Place of Origin :
CHINA
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Packaging Details :
Carton
Model Number :
D-PCPS
Delivery Time :
15 working days
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Sleeve :
316L Stainless Steel
Supply Ability :
1000000/Month
Rotary Drive Screws :
Stainless Steel
MOQ :
1pc
Gland :
316 Stainless Steel
Description

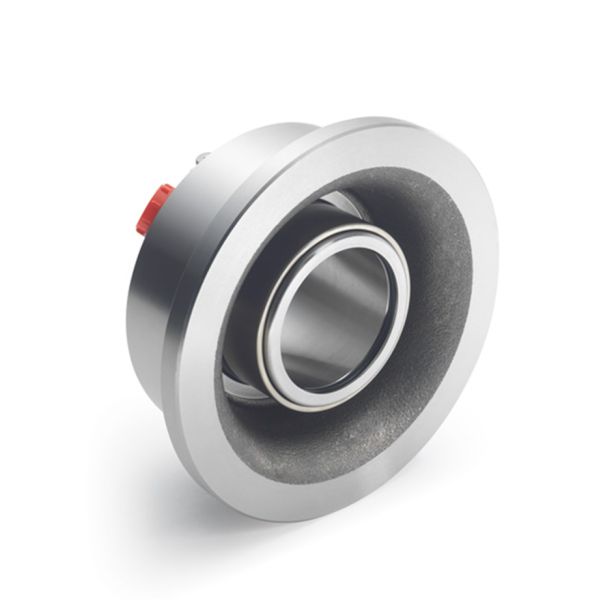

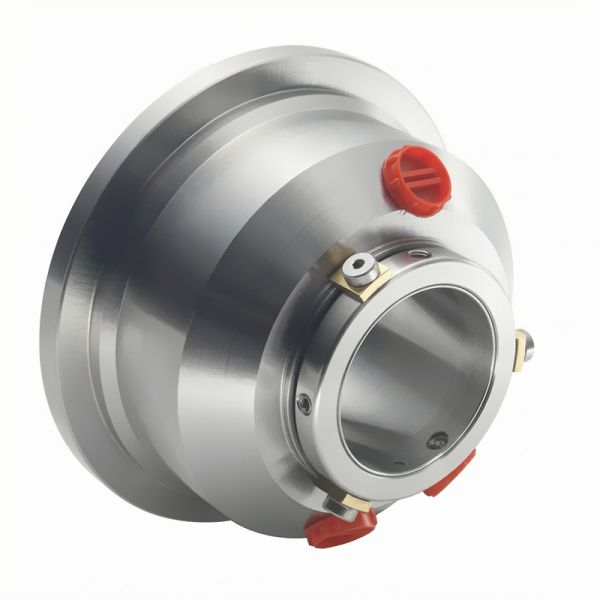

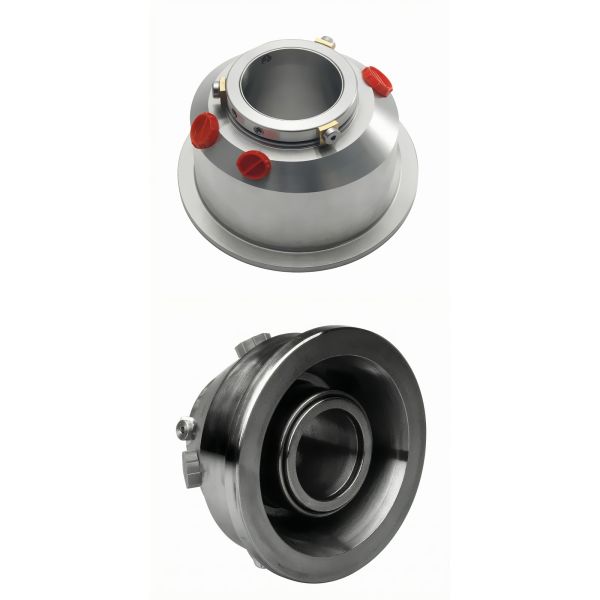

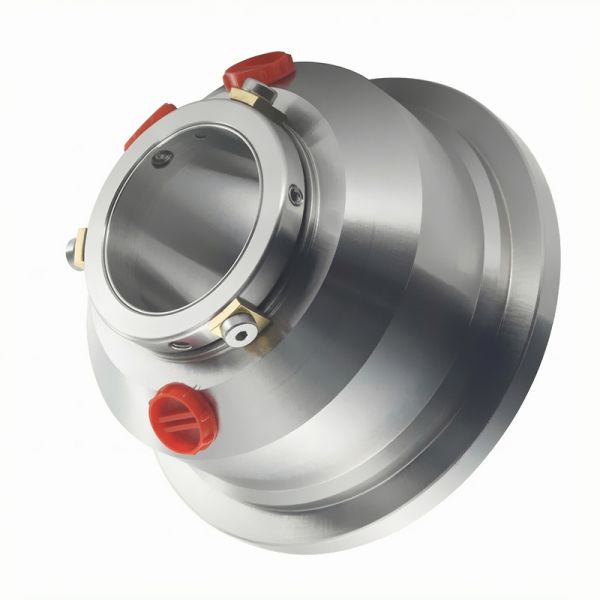

AESSEAL D-PCPS Cartridge Mechanical Seals Double Seal for Progressive Cavity Pump

Cartridge Mechanical Seals

Double Seals

D-PCPS

Double Progressive Cavity Pump Seal

The AESSEAL Progressing Cavity Pump mechanical seal (PCPS™) has been developed to incorporate proven modular designs from our highly-acclaimed range of double mechanical seals. Over 1,500 PCP designs are available to suit all major PCP manufacturers including Mono, Robbins & Myers, Netzsch, PCM, Seepex,

Features

  • Available in single or double seal options
  • No pump modification necessary reducing cost of conversion
  • Components are modular to standardize seal ranges
  • Big bore flared housing maximizes cooling and lubrication increasing seal life and prevents clogging

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump

DPCPS AESSEAL Mechanical Seal Double Stationary Seal Ring For Progressive Cavity Pump
