Specifications
Shaft Sealing Wedge :
Graphite
Outboard Drive Screws :
Stainless Steel
Washer :
316L Stainless Steel
Packaging Details :
Carton
Circlip :
Stainless Steel
Model Number :
BSFG
Sleeve :
316L Stainless Steel
Rotary Drive Screws :
Stainless Steel / Alloy 276
Certification :
ISO9001
Rotary Bellows Assembly :
316L SS / AM 350 / C42 / Ant. Carbon - SiC, Alloy 276 / Alloy 276 / Alloy 276 / Ant. Carbon - SiC
Clamp Ring :
316L Stainless Steel
External Drive Ring :
316L Stainless Steel
Stationary Seal Ring :
Graphite / Kalrez®
Setting Clips :
Metal
Draw Ring :
316L Stainless Steel / Phosphor Bronze
Brand Name :
BESTSEAL
Stationary Face :
SiC / TC
Gasket :
AF1 / GFT
Supply Ability :
1000000/Month
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Seal Drive Screws :
Stainless Steel
MOQ :
1pc
Place of Origin :
CHINA
Gland :
316 Stainless Steel
Setting Clip Screws :
Stainless Steel
Delivery Time :
15 working days
Rotary Sealing Wedge :
Graphite
External Drive Screws :
Stainless Steel
Description

AESSEAL BSFG Bellows Single Full Graphite Cartridge Mechanical Seal for Pumps

Cartridge Mechanical Seals

Bellows Seals

BSFG

Bellows Single Full Graphite Cartridge Seal

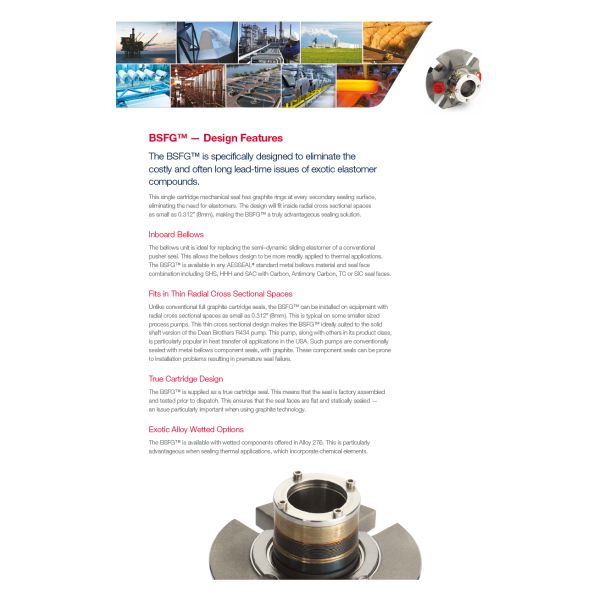

The BSFG™ (Bellows Single Full Graphite) cartridge seal is specifically designed to eliminate the costly and often long lead-time issues of exotic elastomer compounds. This seal features graphite rings at every primary sealing surface, eliminating the need for elastomers.

The hydraulically balanced bellows unit is available in a variety of different material options with either elastomer or graphite packing sealing rings.

Features

  • Full graphite seal for high temperature or corrosive chemical applications
  • Fits pumps with thin radial seal chamber cross-sections
  • Quench flush and drain ports for cooling or heating options to maximize seal life
  • Cartridge design for ease of installation

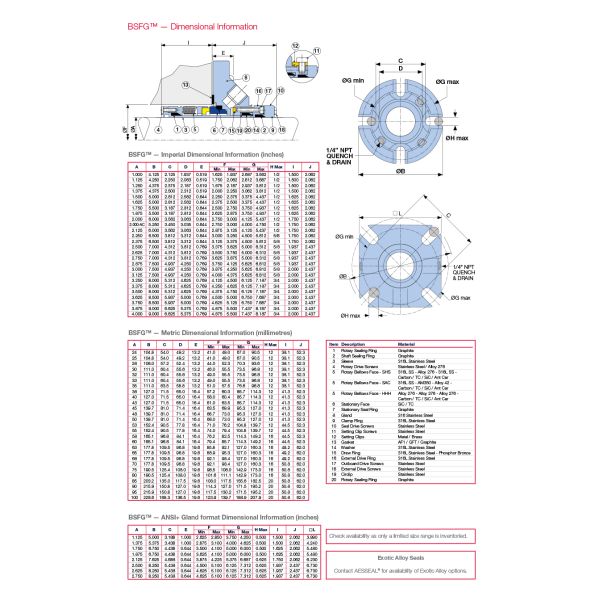

  • Sizes available from 1.000" to 4.000" (24mm - 100mm) in standard and ANSI Plus gland formats

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 24mm-100mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
