Specifications
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Model Number :
SCUSI
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Face :
TC / Ceramic / SiC
MOQ :
1pc
Packaging Details :
Carton
Sleeve :
316L Stainless Steel
Drive Screws :
Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Supply Ability :
1000000/Month
Gland :
316 Stainless Steel
Setting Clip Screws :
Stainless Steel
Clamp Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Certification :
ISO9001
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Place of Origin :
CHINA
Anti-tamper Screws :
Stainless Steel
Gasket :
AF1 / GFT
Brand Name :
BESTSEAL
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Description

AESSEAL SCUSI Single Seals Short Cartridge Mechanical Seal for Pumps

Cartridge Mechanical Seals

Single Seals

SCUSI

Short Cartridge Mechanical Seal

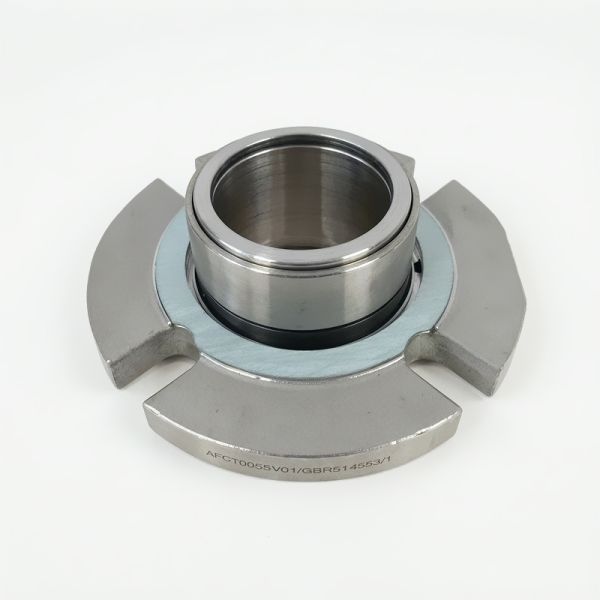

A short externally mounted cartridge seal, with flush ports and self-aligning faces.

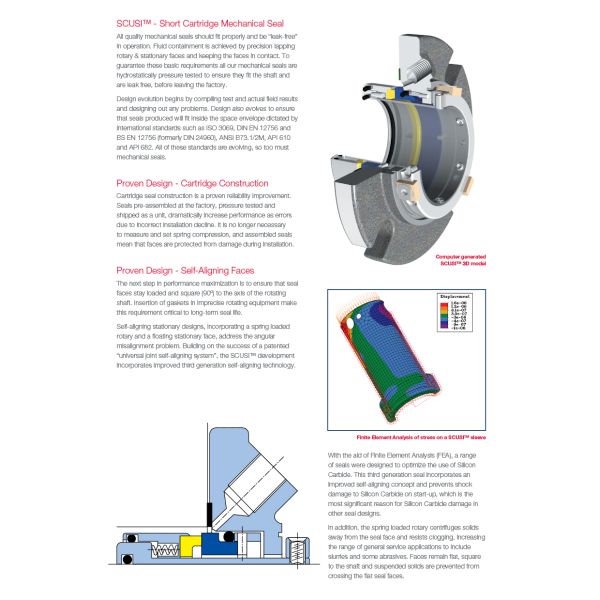

With the aid of Finite Element Analysis (FEA), a range of seals were designed to optimize the use of Silicon Carbide. This third generation seal incorporates an improved self-aligning concept and prevents shock damage to Silicon Carbide on start-up, which is the most significant reason for Silicon Carbide damage in other seal designs.

In addition, the spring loaded rotary centrifuges solids away from the seal face and resists clogging, increasing the range of general service applications to include slurries and some abrasives. Faces remain flat, square to the shaft and suspended solids are prevented from crossing the flat seal faces.

Features

  • Easy reliable installation

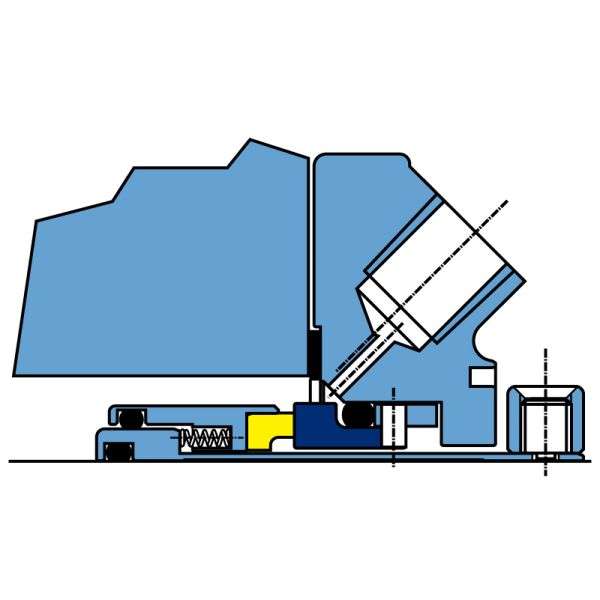

  • Self-aligning faces
  • Non-clogging internal rotary
  • Reduces power consumption
  • Balanced seal faces

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
BESTSEAL Cartridge Mechanical Seal
Your Fast-Track Alternative to AESSEAL SCUSI
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
