Specifications
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Model Number :
IASC
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Face :
TC / Ceramic / SiC
MOQ :
1pc
Packaging Details :
Carton
Sleeve :
316L Stainless Steel
Drive Screws :
Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Supply Ability :
1000000/Month
Gland :
316 Stainless Steel
Setting Clip Screws :
Stainless Steel
Clamp Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Certification :
ISO9001
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Place of Origin :
CHINA
Anti-tamper Screws :
Stainless Steel
Gasket :
AF1 / GFT
Brand Name :
BESTSEAL
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Description

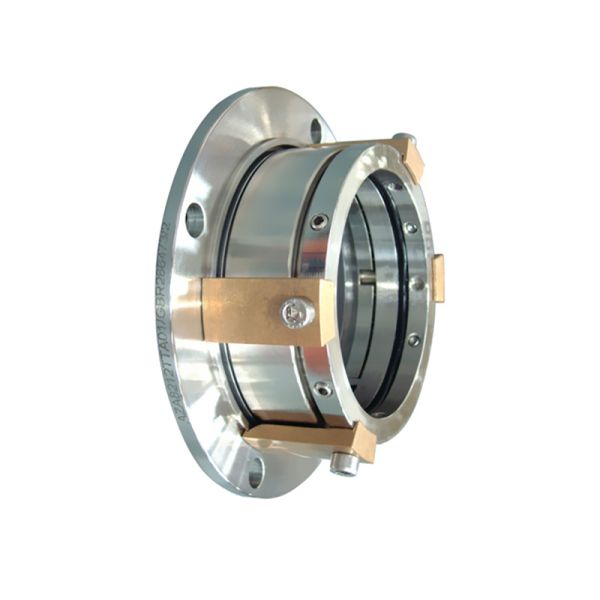

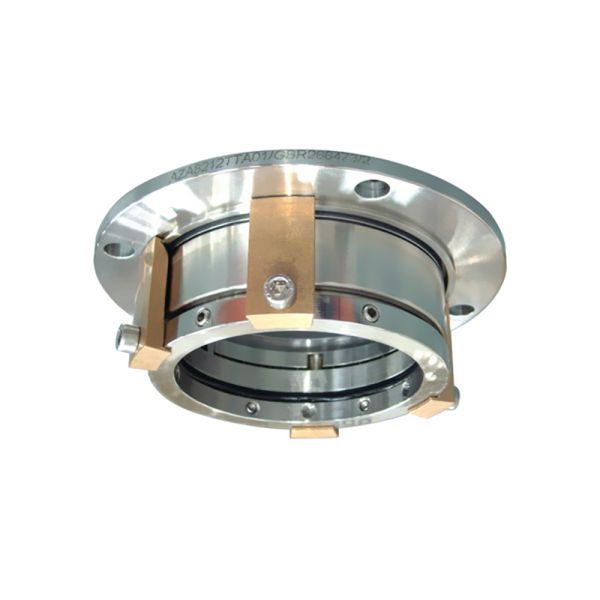

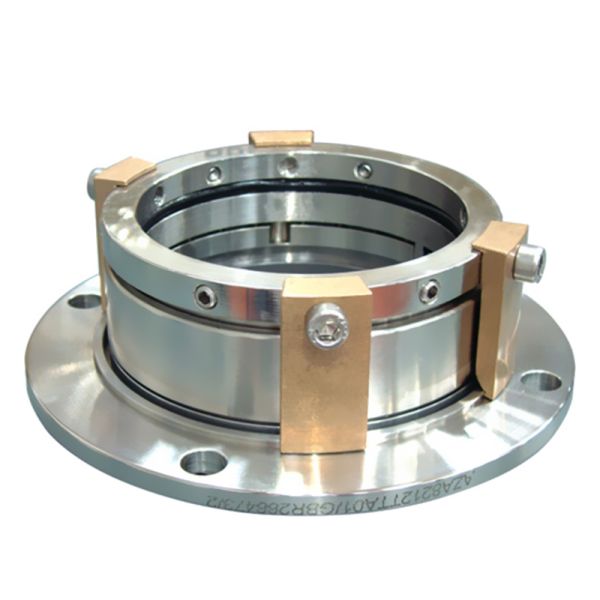

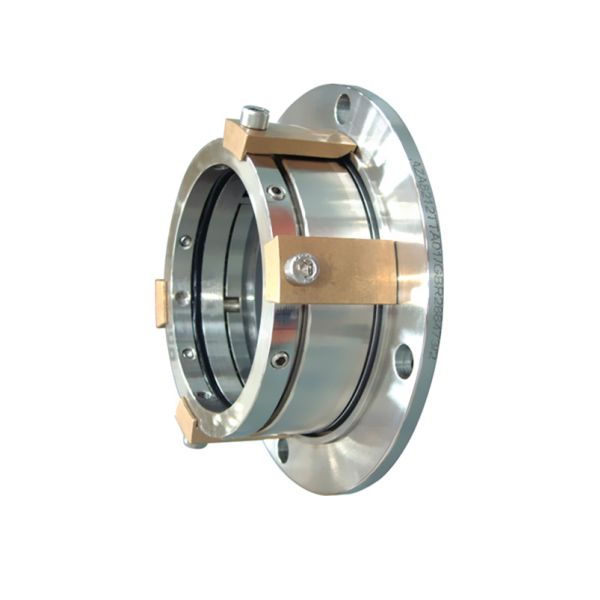

AESSEAL IASC Single Cartridge Mechanical Seals Pulp and Paper Screen Application Seal

Cartridge Mechanical Seals

Single Seals

IASC

Pulp & Paper Screen Application Seal

This seal employs standard modular inventoried AESSEAL­­® components with a seal gland which retains fluid when the screen is emptied.

This avoids dry running of the tungsten carbide seal faces on equipment start-up.

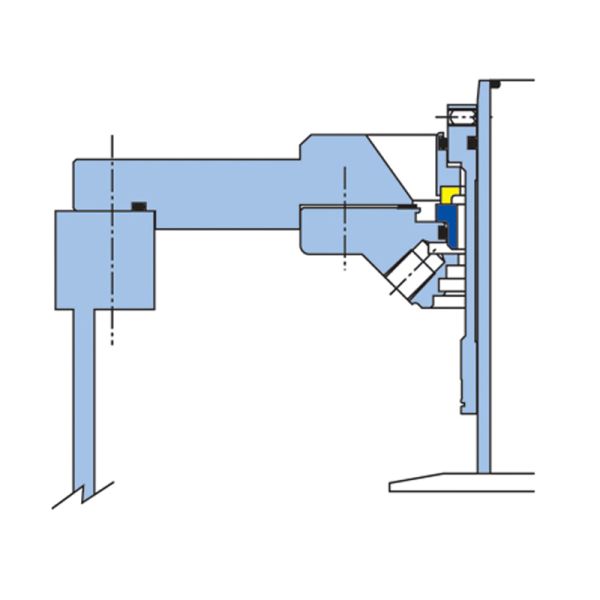

The seal is specifically designed for vertical screen applications mainly used on stock and liquor screens in the pulp mill and paper machine areas.

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
BESTSEAL Cartridge Mechanical Seal
Your Fast-Track Alternative to AESSEAL IASC
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
