Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Vegetable Type Mesh Belt Dryer
Heating source :
Electricity,liquefied petroleum gas
Carrying capacity :
80-200kg/m2
Capacity :
5-20t/h
Item :
Conveyor Drying Machine
Condition :
New
Description

Air Heating Fruit And Vegetable Type Mesh Belt Dryer Circulation System

Description:

The mesh belt dryer distributes the materials to be processed on the conveyor belt through a suitable material spreading mechanism, such as a star distributor, swing belt, pulverizer, or granulator, and the conveyor belt is composed of one or several heating units. Each heating unit is equipped with an air heating and circulation system, and each channel has one or several moisture removal systems. When the conveyor belt passes, the hot air passes through the conveyor belt from top to bottom or from bottom to top. material, so that the material can be dried evenly.

Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

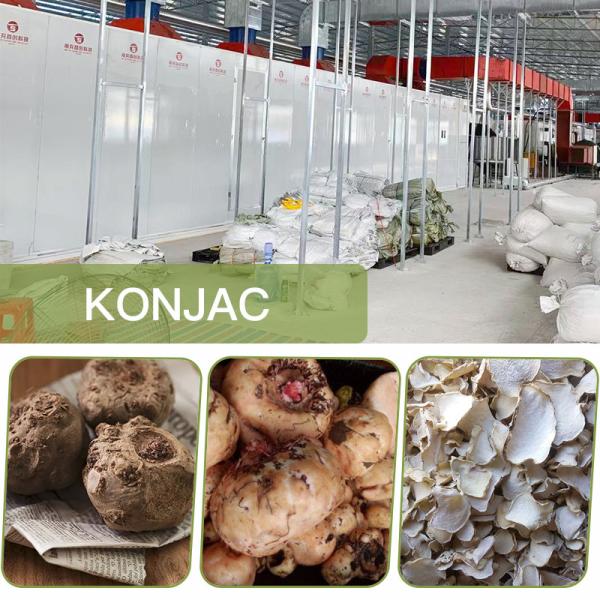

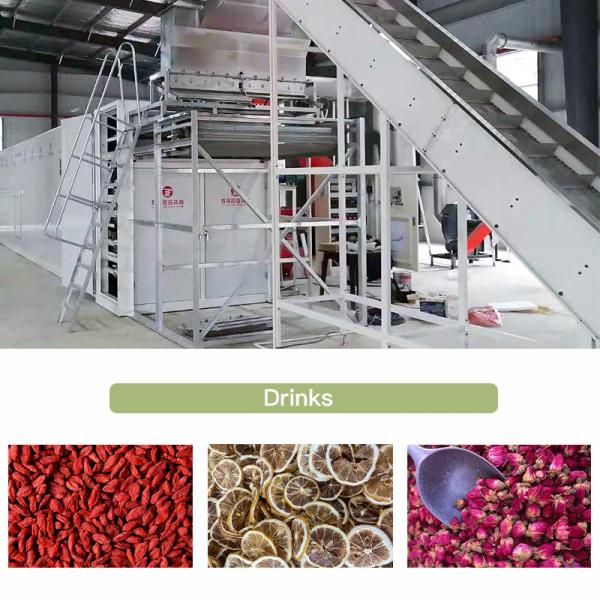

MATERIAL APPLICATION

Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable

COMPANY PROFILE

Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable

PATENT CERTIFICATE

Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Air Heating Continuous Conveyor Belt Dryers For Seasoning Fruit And Vegetable
