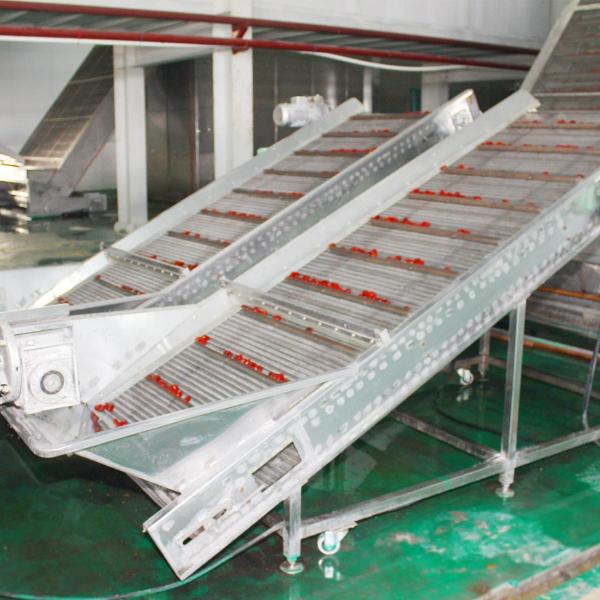

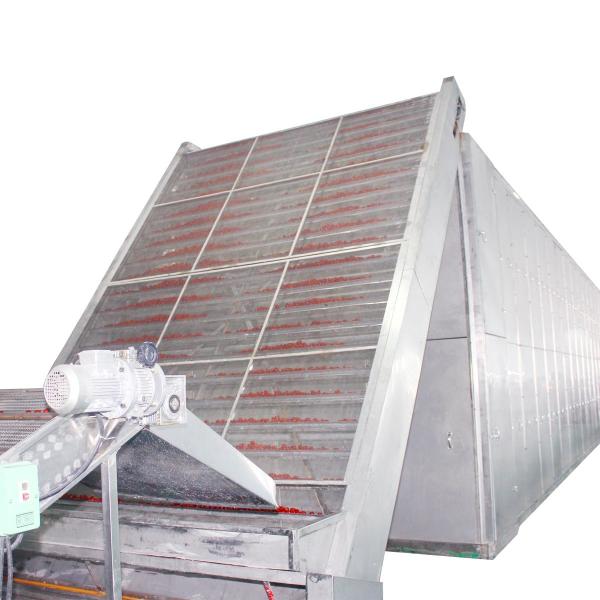

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Red Dates Mesh Belt Dryer
Drying temperature :
Customized
Drying type :
Fruit and Vegetable
Product Features :
drying and dehydration
Power(w) :
3-75kw,4.5kw-37kw
Type :
Drying machine
Description

Use Air Circulation To Save Energy Fruit Belt Drying Equipment

Dehydration Drying Color Retention Automatic Operation Control Red Dates Mesh Belt Dryer

Quick Detail:

  • Suitable for a variety of fruits
  • Structural Safety Patent Protection
  • Standardized products can also be customized

Description:

  1. Air volume, heating temperature, material residence time and feeding speed can be adjusted to achieve the best drying effect.
  2. The equipment configuration is flexible, and the mesh belt washing system and material cooling system can be used.
  3. Most of the air is recycled, highly energy saving.
  4. The unique air distribution device makes the hot air distribution more uniform and ensures the consistency of product quality.

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention

COMPANY PROFILE

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention

PATENT CERTIFICATE

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Dehydration Automatic Mesh Belt Drying Machine 400kg/ H 1.1kw Color Retention
