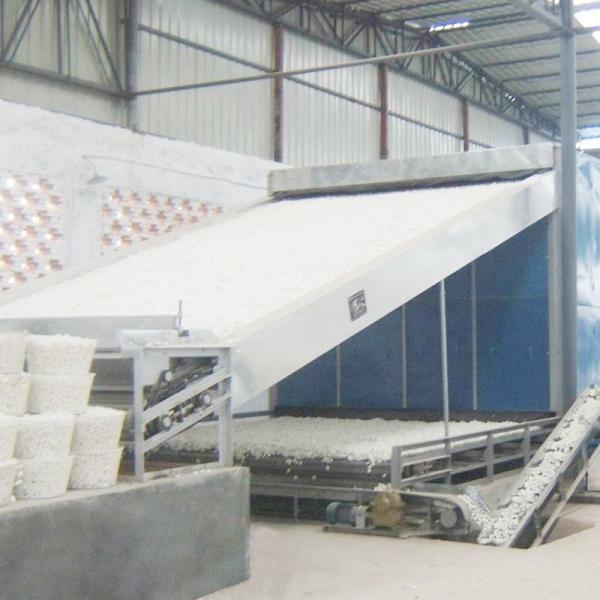

Large Rust Proof Heat Insulating Mesh Belt Dryer Energy Saving Fast Drying

Description:

The air intake mode of the mesh belt dryer is (positive pressure) downward air intake. There is an air inlet on the upper part of each side of the box body. The hot air is directly sent to the bottom of the drying box through the interlayer air duct on the two walls. The upper makes the material to be baked fully absorb heat, and the water vapor discharged from the material to be baked will go up with the hot air to the top moisture exhaust hole to be discharged. Take drying briquettes as an example: the wet balls are circulated from the upper layer down, the lower the humidity is, the lower the humidity is. The briquettes have the phenomenon of re-humidification.
The air inlet (2 per section) and the moisture exhaust hole (1 per section) are equipped with adjusting flaps, which can moderately adjust the air intake and air output, and adjust the air intake and output reasonably, which is beneficial to improving production and saving energy. Inseparable. There is a sand discharge hole at the bottom of each section of the box, and a small amount of waste generated when the dried materials rub against each other can be cleaned out from the sand discharge hole. The sand discharge hole is in a sealed state during normal operation. It can be opened and cleaned during maintenance or when there is too much material accumulation. When cleaning, the hot air fan should be closed to prevent the hot air from causing damage to the human body.

Specifications:

MATERIAL APPLICATION

COMPANY PROFILE

PATENT CERTIFICATE

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.
