Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Dual Layer Fruit Mesh Belt Dryer SUS304
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Fruit Mesh Belt Dryer
Type :
Mesh Belt Dryer Machine
Carrying capacity :
90-200kg/m2
Main materials :
SUS304
Warranty :
1 Year
Gross Weight :
Customization
Description

Standardized Double Layer Four Layer Fruit Mesh Belt Dryer Simple Installation And Construction

Description:

1. Small investment, fast drying speed, and high evaporation intensity;
2. High efficiency, large output, and good product quality;
3. In Standardized production, the number of segments can be increased according to the output.

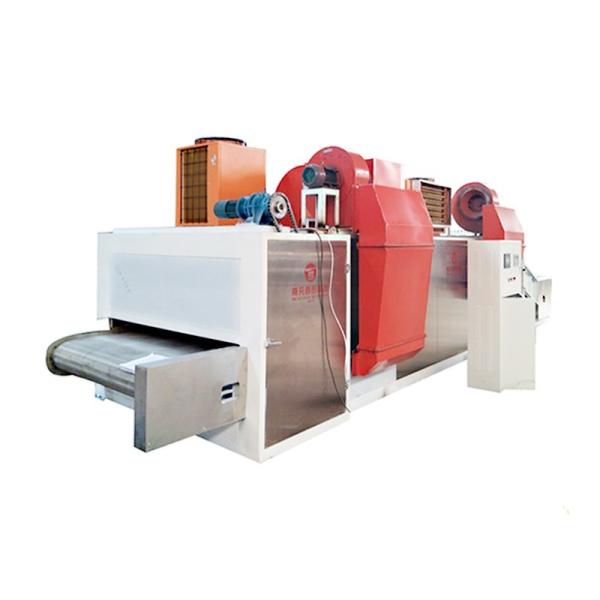

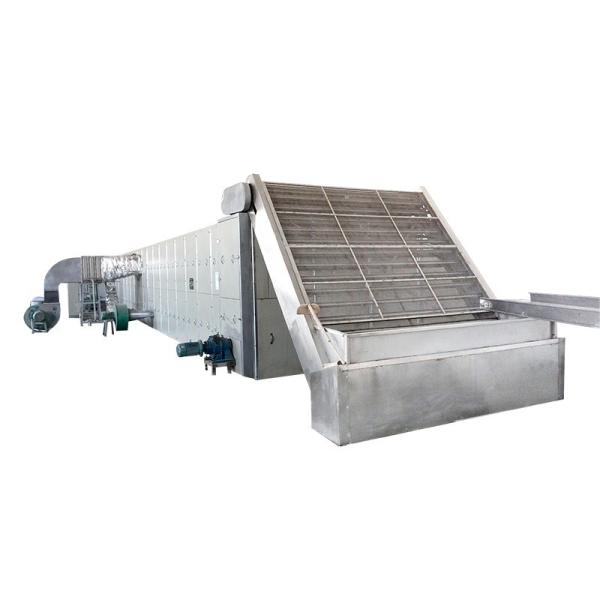

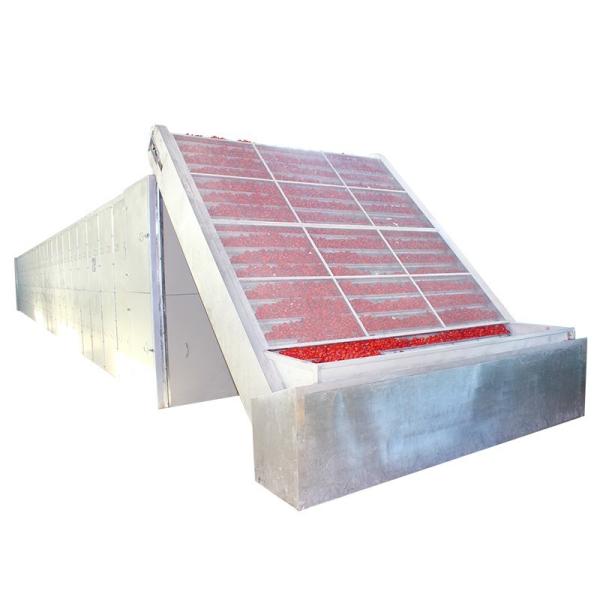

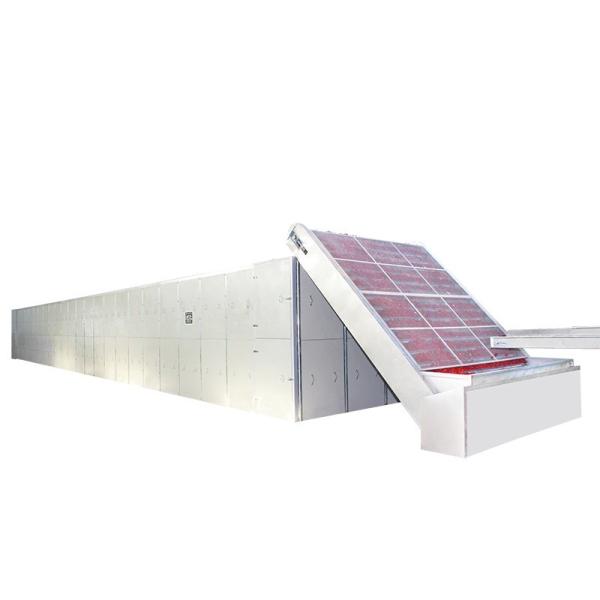

Fruit Mesh Belt Dryer is drying equipment that uses steel mesh as a conveyor belt to carry materials for continuous drying and is suitable for flow operations. Since the conveyor belt is in the form of a mesh, it is suitable for drying regular or irregular lumps (such as coal lumps, various mineral powders, food, vegetables, etc.). This machine can be used with other equipment. Can also be used alone.

Dual Layer Fruit Mesh Belt Dryer SUS304

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Dual Layer Fruit Mesh Belt Dryer SUS304

COMPANY PROFILE

Dual Layer Fruit Mesh Belt Dryer SUS304

PATENT CERTIFICATE

Dual Layer Fruit Mesh Belt Dryer SUS304

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Dual Layer Fruit Mesh Belt Dryer SUS304
