High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Stainless Steel Mesh Belt Dryer
Keep warm function :
Yes
Main materials :
Stainless steel
Warranty :
1 Year
Voltage :
Customized,380V/220V
Power(w) :
10-40kw
Description

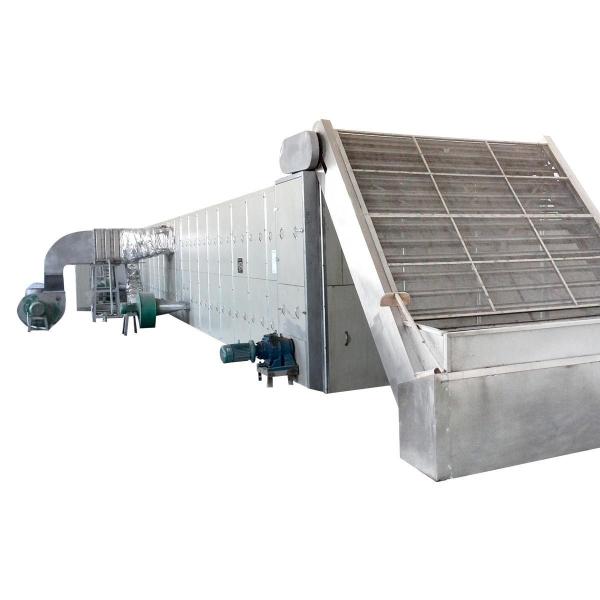

High Speed Konjac With Insulation Stainless Steel Material Mesh Belt Dryer

Description:

  1. Stainless Steel Mesh Belt Dryer vibration and impact of the material on the belt dryer are slight, and the material particles are not easy to be pulverized and broken, and it is also suitable for drying some materials that are not allowed to be broken.
  2. Stainless Steel Mesh Belt Dryer belt dryer is not only used to dry the material but also sometimes to bake, sinter, or ripen the material.
  3. Stainless Steel Mesh Belt Dryer structure of the belt dryer is not complicated, the installation is convenient, and it can run for a long time. When a fault occurs, it can enter the inside of the box for maintenance, which is convenient for maintenance.
  4. Air volume, heating temperature, material residence time, and feeding speed can be adjusted to achieve the best drying effect.
High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw

COMPANY PROFILE

High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw

PATENT CERTIFICATE

High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

High Speed Industrial Fruit Vegetable Drying Equipment 380V 10kw To 40kw
