ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Red Dates Fruit Mesh Belt Dryer
Available area :
Any country
Drying capacity :
Powerful
Job type :
Mesh belt
Color :
Customized
Heating source :
Electricity,Steam
Description

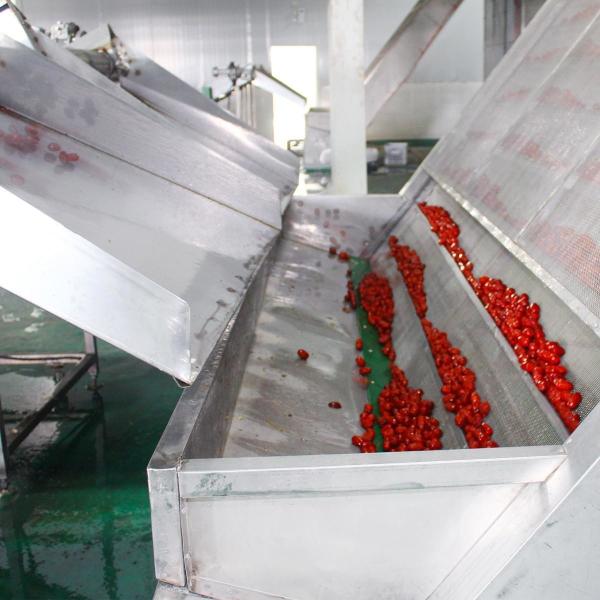

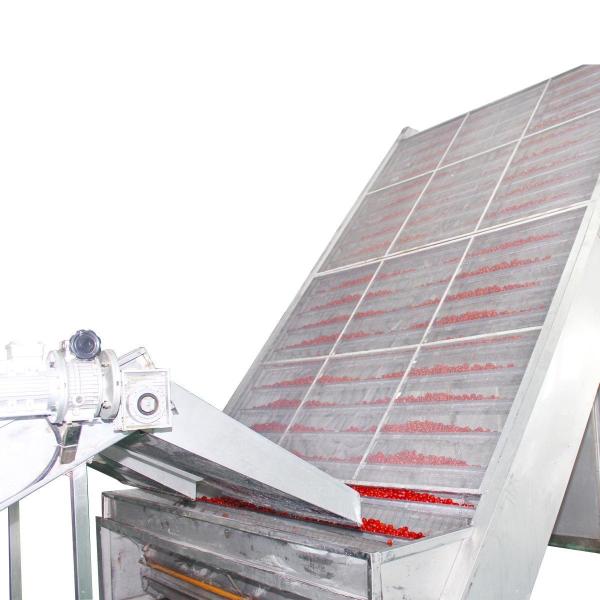

Suitable For Uniform Drying Of Irregular Lumps Red Dates Fruit Mesh Belt Dryer

Quick Detail:

  • Tailor-made reasonable consulting services for customers.
  • Rich technical service personnel provides detailed and comprehensive answers to customers from technical consultation to after-sales service.
  • Stainless steel material is more solid and stable

Description:

  1. Solve the problem that the water vapor returns to the material after the temperature of the system decreases during the co-directional movement caused by the downstream dehumidification of the traditional dryer;
  2. During the drying process, the hot air moves forward from the tail, fully contacting the material, and making full use of the heat transfer through heat conduction, convection, and radiation.
  3. Red Dates Fruit Mesh Belt Dryer heat energy is directly transferred to the material, so that the moisture of the material is continuously evaporated in the cylinder, and the air induction device at the feeding port draws out a large amount of moisture and wet air to prevent secondary pollution caused by dust discharge;
  4. Red Dates Fruit Mesh Belt Dryer material movement is propelled by the stainless steel mesh belt to complete the entire drying process;

ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates

COMPANY PROFILE

ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates

PATENT CERTIFICATE

ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

ISO SGS Mesh Belt Dryer Machine PLC Control For Irregular Lumps Red Dates
