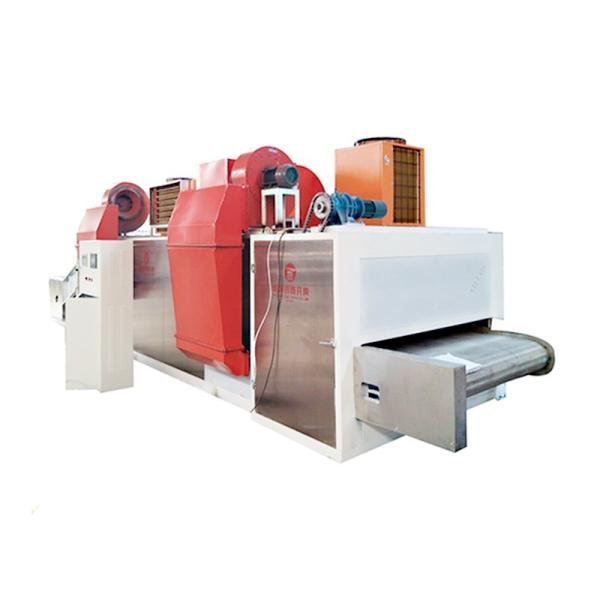

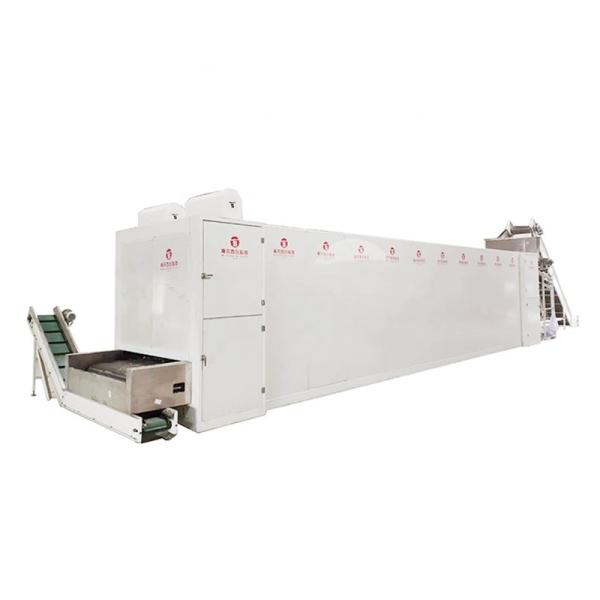

Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Konjac Slices Conveyor Belt Dryer System Large Output Odorless
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Konjac Mesh Belt Dryer
Type :
Belt Dryer Machine
Usage :
Reduce Material's Moisture
Installation :
Under Technician's Guidance
Carrying capacity :
90-200kg/m2
Main materials :
SUS304
Warranty :
1 Year
Description

Konjac Slices Are Dried Without Peculiar Smell Mesh Belt Dryer Indonesia Southeast Asia Favorites

Description:

1. Small investment, fast drying speed, and high evaporation intensity;
2. High efficiency, large output, and good product quality;
3. In Standardized production, the number of segments can be increased according to the output.

The basic working principle of the mesh belt dryer
The material that needs to be dried is evenly spread on the mesh belt, and the mesh belt is dragged by the transmission device on the track to make a reciprocating motion with the box. It is discharged from the moisture exhaust hole, so as to achieve the purpose of rapid exchange, rapid discharge, and rapid drying. The length of the box is combined with several standard-length boxes. In order to save space, save costs, and save heat, we dry the mesh belt. The machine is designed to be multi-layered, and the number of layers is determined according to the required output, which is suitable for different users and different output requirements.

Konjac Slices Conveyor Belt Dryer System Large Output Odorless

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

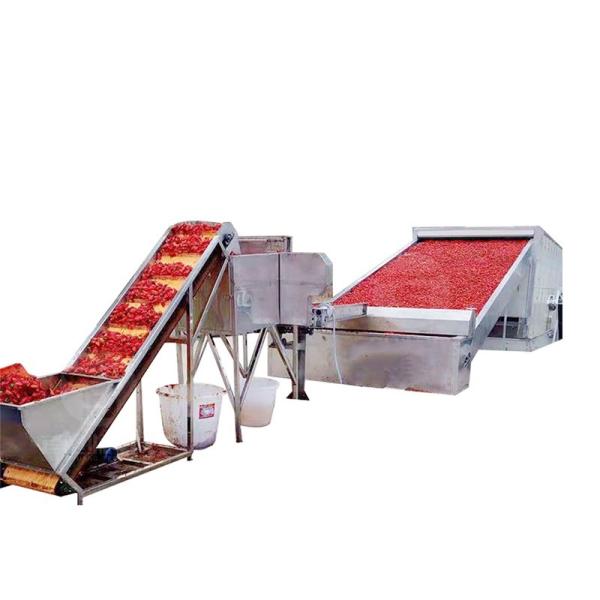

MATERIAL APPLICATION

Konjac Slices Conveyor Belt Dryer System Large Output Odorless

COMPANY PROFILE

Konjac Slices Conveyor Belt Dryer System Large Output Odorless

PATENT CERTIFICATE

Konjac Slices Conveyor Belt Dryer System Large Output Odorless

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Konjac Slices Conveyor Belt Dryer System Large Output Odorless
