Specifications
Brand Name :
ACEY
Model Number :
ACEY-PS10
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 14300~19400/Set
Compatible Dimensions :
Length: 100 - 300mm; Width: 20 - 85mm; Height: 80 - 300mm
Number of Channels :
9 OK channels + 1 NG channel
Working power :
220V, 50Hz/60Hz
Sorting speed :
10~12ppm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Lithium Ion Battery Sorting Machine 10 Channels With Scanner And Prismatic Battery IR OCV Tester

Product Description

ACEY-PS10 Prismatic battery 10 channels automatic sorting machine is suitable for sorting and assembling test of universal prismatic batteries. The machine adopts the belt line to drive the feeding, and the type change is simple. It can analyze and save the test data of the prismatic battery, eliminate the defective battery exclusively, and collect the battery with the sorting and matching by the receiving tank. It is easy for the operator to manage.

Product Features

1)With the integration of industrial control, all parameters of the cell can be traced, convenient data management, simple operation. Cell voltage, cell internal resistance, group information and other management functions.
2)Suitable for various types of prismtic cells, easy to change.
3)Built-in high precision Japanese HiokiBT3562 internal resistance tester, high test accuracy, fast speed.
4) Built-in barcode scanner.

Main Technical Parameter

Equipment efficiency 10~12PPM
Equipment utilization ≥95%
Number of sorting channels 10(9 OK channels, 1 NG channel)
Applicable cell dimensions Length: 100-300mm
width 20-85mm
height: 80-300mm
Control system PC Industrial Computer (Embedded system)
Input power consumption 1KW
Equipment power 2KW
Input voltage AC220V/50HZ
Compressed air source ≥0.6Mpa
Displayer 21.5-inch Philips displayer
Equipment Appearance Reference dimensions L*W*H=1920*1600*1600mm
Weight 350KG

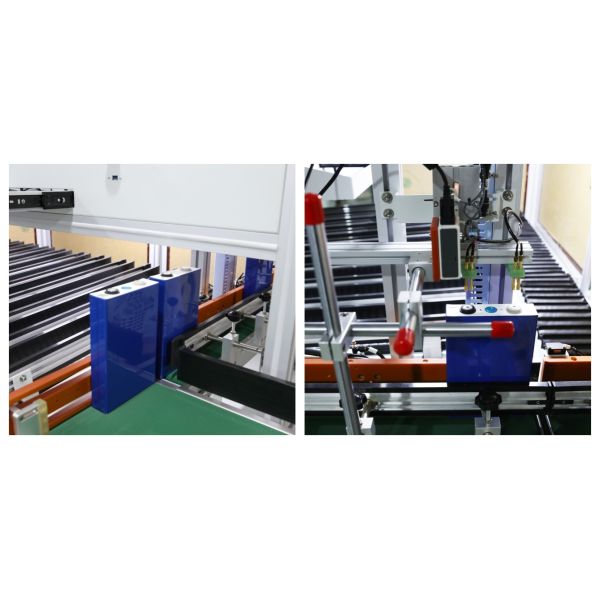

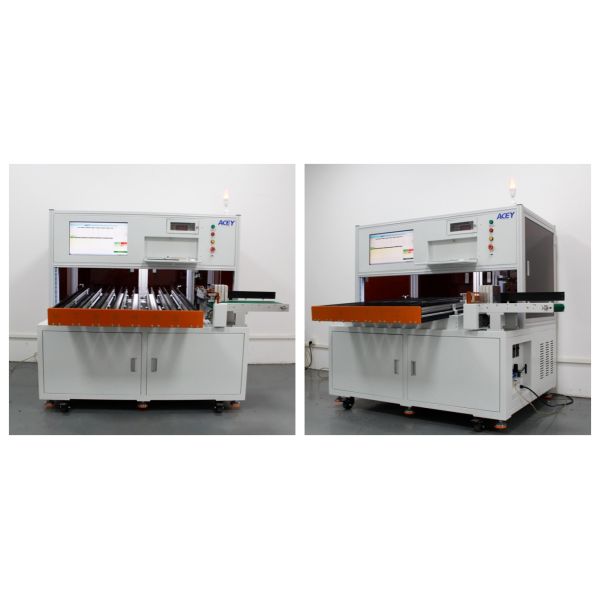

Product Display
