Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
Specifications
Brand Name :
ACEY
Model Number :
ACEY-PCSM
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~14300/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
7 Channels
Sorting speed :
16 ppm
Compatible Battery :
Pouch Cells
Weight :
493Kg
Dimensions :
L1800mm*W1570mm*H1750mm
Power Supply :
220V-50Hz/60Hz
Description

7 Channels Automatic Pouch Lithium Cell Sorting Machine For Polymer Battery Voltage IR Sorting

Product Description

ACEY-PCSM pouch lithium cell sorting machine is a high-efficiency automated system designed for the downstream sorting stage of polymer lithium battery production. It is widely applied in power battery, 3C consumer electronics, and energy storage applications, supporting accurate cell matching for various new-energy battery packs while complying with international safety standards.

Equipment Parameter

  • Applicable cell type: lithium polymer batteries
  • Compatible dimensions: overall length 50–170 mm; width 20–100 mm; thickness 4–20 mm
  • Control system: PLC-based control
  • Integrated manual loading with automated testing, code scanning, and sorting, minimizing manual intervention throughout the process
  • MES interface available for real-time recording of battery QR code information, test data, and SPC analysis report generation
  • Single-machine throughput up to 1,000 cells per hour, delivering more than three times the efficiency of manual sorting

Equipment Specification

Ambient temperature 5°C to 35°C
Relative humidity 20%~ 90%
Air supply pressure 0.5–0.6 MPa
Power supply AC 220 V, 50 Hz / 60 Hz
Floor load capacity ≤ 200 kg/m²
Grounding method Direct grounding
Site requirements Free from pollution and strong electromagnetic interference
Installation conditions Level surface, no vibration or mechanical shock
Operating noise ≤ 80 dB
Overall dimensions (L × W × H) L1800mm*W1570mm*H1750mm
Machine weight Approx. 493 kg
Exterior color Computer white (customizable upon request)
Total power consumption ≤ 1.5 kW

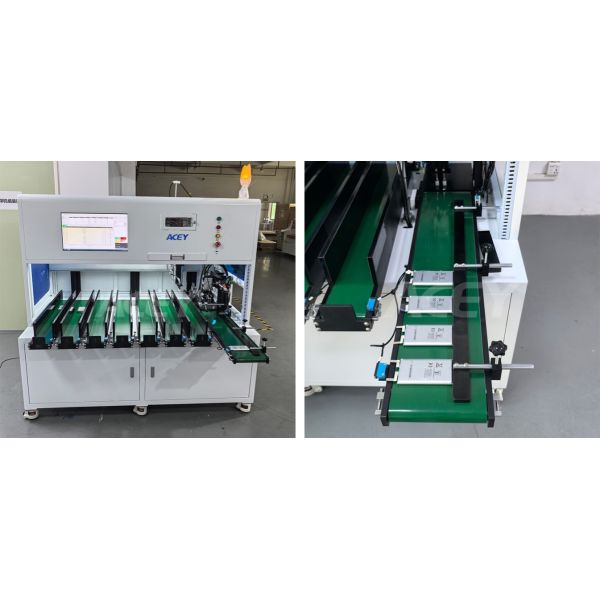

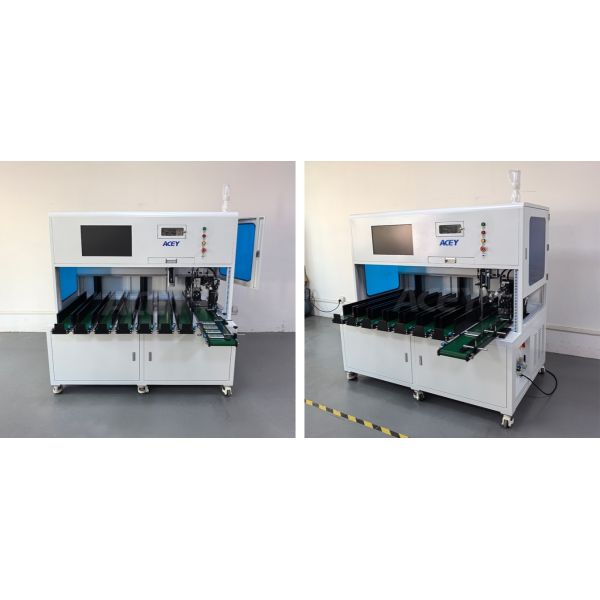

Product Display

Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage

Automatic IR Pouch Lithium Battery Sorting Machine For Polymer Battery Voltage
