Specifications
Brand Name :
ACEY
Model Number :
ACEY-AS10SP-33140
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 8200~10200/Set
External dimension :
Length1430* width660* height1350mm
Battery type :
32140/33140
Receiving channel :
9 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Working power :
Single-phase ~220V±10%/50Hz±10%, power <800W
Test parameters :
AC internal resistance, DC voltage
Sorting speed :
40~50ppm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

10 Channels Lithium Cell Sorting Machine with PC for 32140 33140 Cylindrical Battery

Product Description

ACEY-AS10SP-33140 can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders batteries.

Product Features

*Automatically sort the voltage and internal resistance of cylindrical batteries like 18650, 26650, 32650 etc.
*High precision and fast speed,High degree of automation, high productivity
*Touch screen operation, easy and fast responding.
*The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
*Humanized processing of subtle links greatly guarantees the safety of operators and products
*Replace sorting mold to sort different size battery cell(Moulds need to be purchased extra)
*With computer

Main Technical Parameter

Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 32140/33140
Receiving channel 9 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Sorting speed 40~50ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L1430mm*W660mm*H1350mm
Weight <200Kg

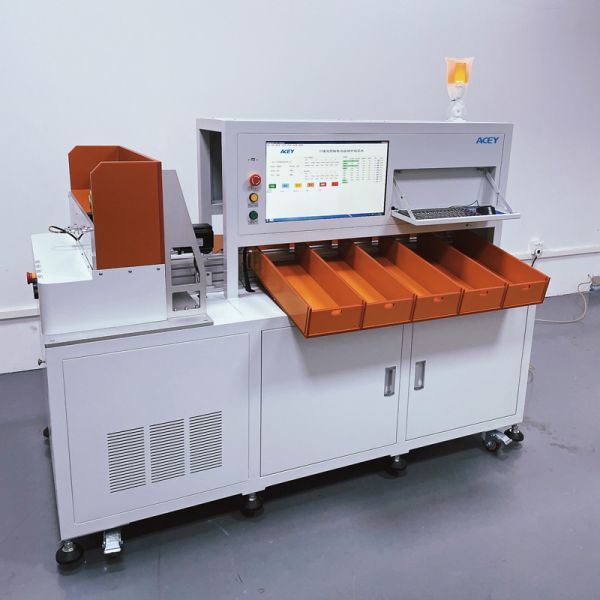

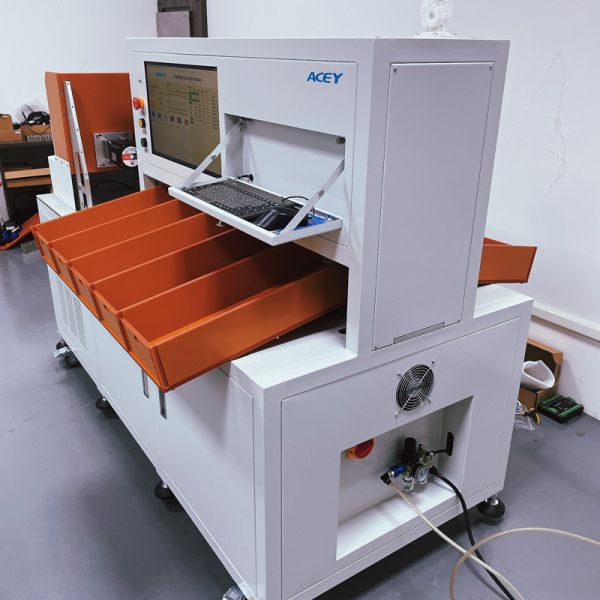

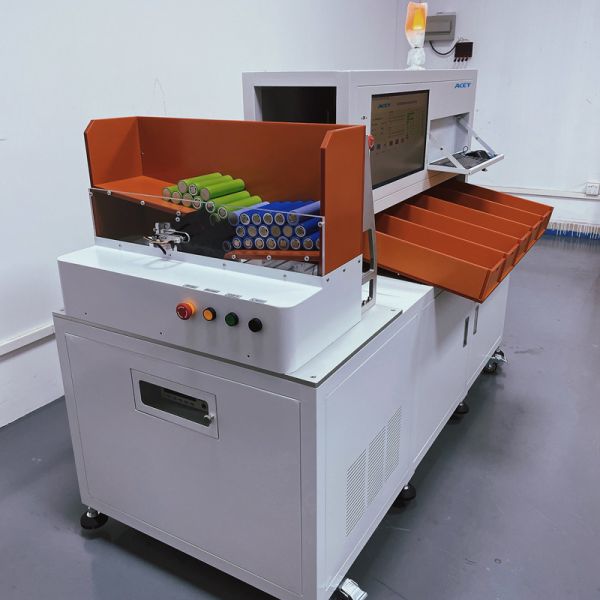

Product Display

ODM Cylindrical Cell Lithium Battery Equipment Sorting Assembly For 32140 33140ODM Cylindrical Cell Lithium Battery Equipment Sorting Assembly For 32140 33140

ODM Cylindrical Cell Lithium Battery Equipment Sorting Assembly For 32140 33140
