10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
Specifications
Compatible Battery :
Prismatic Cells
Power Supply :
220V-50Hz/60Hz
After-sales Service :
24/7 Technical Support
Weight :
458Kg
Dimensions :
L2210mm*W1624mm*H1596mm
Warranty :
1 Year Warranty with Lifetime Support
Sorting speed :
18 ppm
Number Of Channels :
10 Channels
Brand Name :
ACEY
Model Number :
ACEY-PS10S
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~14960/Set
Payment Terms :
T/T,PayPal,L/C,Western Union
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Description

10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting


Product Description

ACEY-PS8S prismatic battery sorting machine is an automated solution designed for the downstream sorting stage of lithium battery production. The system combines an industrial computer, PLC control, high-precision servo drives, and a dedicated battery internal resistance tester to ensure accurate measurement and high-speed operation.


It is widely used in power battery, 3C consumer electronics, and energy storage applications, supporting precise cell matching for various new-energy battery packs while meeting relevant international safety requirements.


Equipment Parameter

  • Applicable cell type: prismatic battery cells
  • Compatible dimensions: length 100–300 mm; width 20–85 mm; height 100–300 mm
  • Sorting levels: 9 sorting bins plus NG bin
  • Control system: PLC-based control (PLC brand selectable upon request)
  • Feeding and testing: manual loading with integrated testing (optional internal resistance testers from Hioki or HOPETECH; other brands available on request)
  • Code scanning: integrated scanning function supporting QR codes, barcodes, and similar formats
  • Fully automated sorting process to minimize manual intervention
  • MES interface available for real-time recording of cell QR codes, test data, and SPC analysis report generation
  • Single-machine throughput up to 1,000 cells per hour, achieving more than three times the efficiency of manual sorting


Equipment Specification

Ambient temperature −30°C to 50°C
Relative humidity Below 90%
Air supply pressure 0.5–0.6 MPa
Power supply AC 220 V, 50 Hz / 60 Hz
Floor load capacity ≤ 200 kg/m²
Grounding method Direct grounding
Site requirements Free from pollution and strong electromagnetic interference
Installation conditions Level surface, no vibration or mechanical shock
Operating noise ≤ 80 dB
Overall dimensions (L × W × H) 2210 × 1624 × 1596 mm (subject to actual equipment)
Machine weight Approx. 458 kg
Exterior color Computer white (customizable upon request)
Total power consumption ≤ 1.5 kW

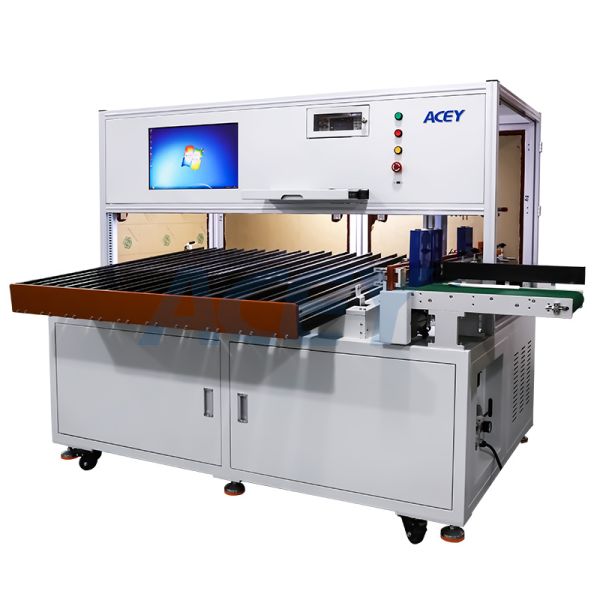

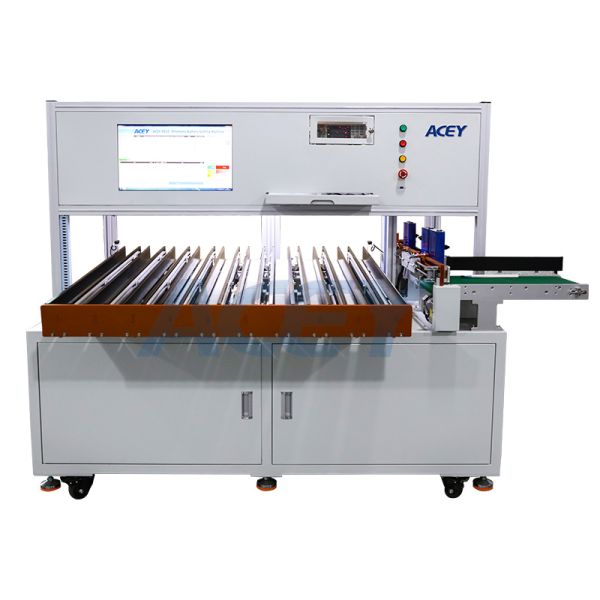

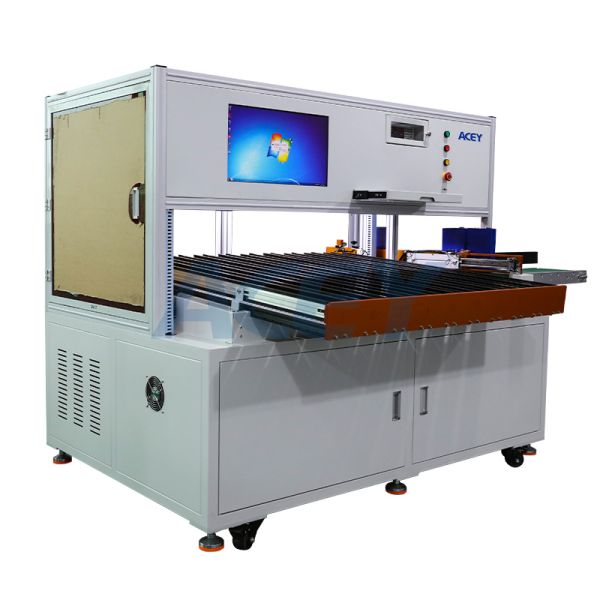

Product Display

10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting
