Specifications
Brand Name :
ACEY
Model Number :
ACEY-PS3S
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3630~13335/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number Of Channels :
3 Channels
Sorting speed :
10~12ppm
Compatible Battery :
Prismatic Cells
Weight :
350Kg
Dimensions :
L2156mm*W810mm*H1700mm
Description

3 Channels Automatic Prismatic Lithium Battery Sorting Machine

Product Description

ACEY-PS3S prismatic battery sorting machine is an automated system designed for prismatic cell barcode scanning, electrical testing, and sorting. The equipment integrates a high-precision internal resistance and voltage testing system, enabling automatic measurement and classification of cells.

Based on the internal resistance and voltage thresholds configured in the software, the system accurately directs each cell to its designated sorting level, supporting up to three sorting grades. The machine can test and group approximately 600 cells per hour. With a clean and robust mechanical design, stable performance, and straightforward operation, it offers a cost-effective solution for prismatic cell sorting applications.

Equipment Features

  • Equipped with an integrated industrial PC, enabling full traceability of all battery parameters for efficient data management and simple operation, including battery voltage, internal resistance, and cell grouping records

  • Compatible with various battery models, with quick and easy changeover between different cell types

  • Built-in high-precision HOPETECH HK3560 internal resistance tester, providing high measurement accuracy and fast testing speed

Equipment Parameter

Equipment Efficiency 10-12 PPM
Equipment Utilization Rate ≥95%
Sorting Channels 3 (2 good products, 1 defective product)
Applicable Battery Dimensions Length: 90-250 mm, Width: 20-80 mm, Height: 80-300 mm
Internal Resistance Measurement Accuracy ±0.5% rdg, Display Resolution: 0.01 mΩ
Voltage Measurement Accuracy ±0.05% rdg, Display Resolution: 0.1 mV
Internal Resistance Measurement Repeatability Error < 1 mΩ (AC Internal Resistance Measurement Method)
Voltage Measurement Repeatability Error < 1 mV
Control System PC-based Industrial Computer (Embedded System)
Input Power Consumption 1 kW
Input Power Supply AC 220V/50Hz
Compressed Air Source ≥0.6 MPa
Display Screen 21.5-inch Philips Large Display
Equipment Dimensions (L×W×H) 2150×810×1700 mm
Whole machine weight 350kg

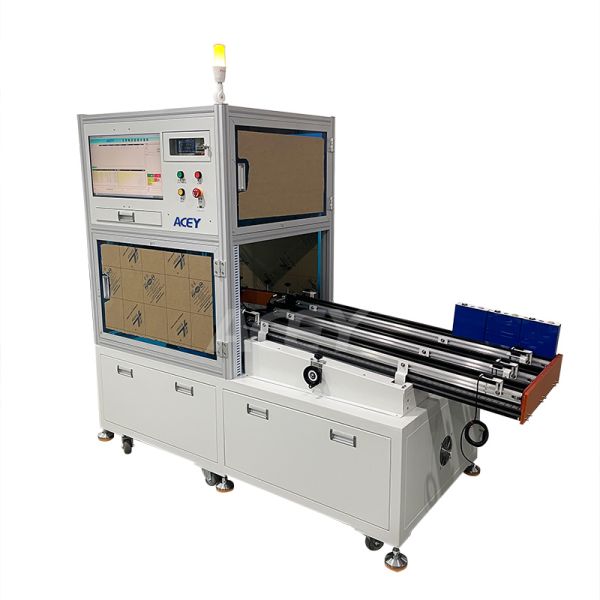

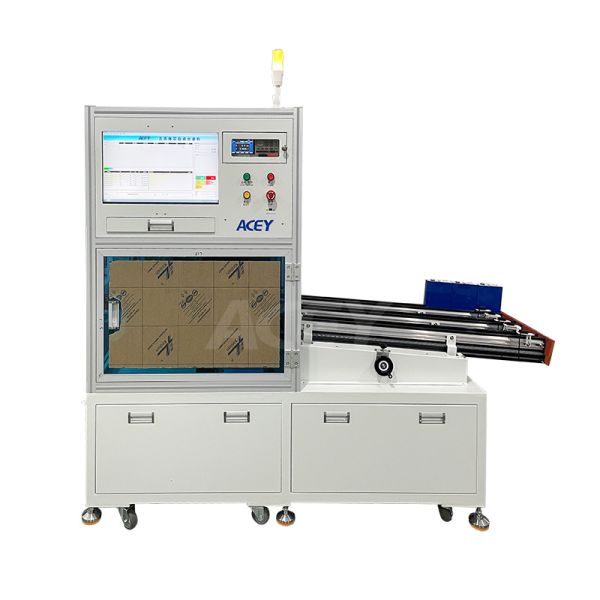

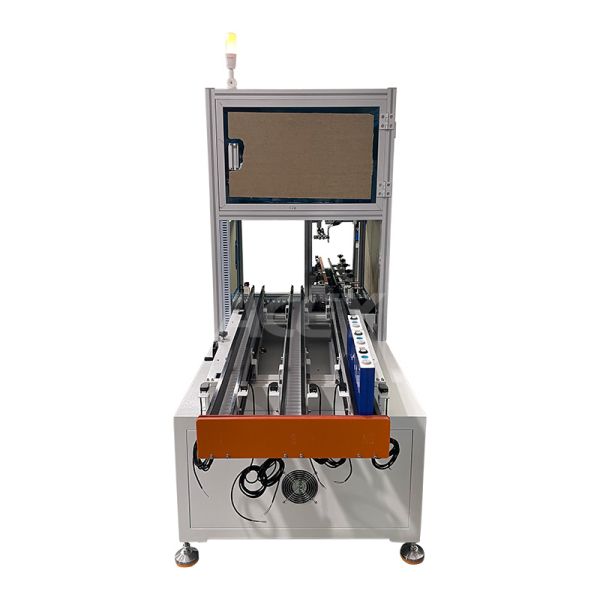

Product Display

10ppm~12ppm Automatic Prismatic Lithium Cell Machinery Sorting Manufacturing Equipment10ppm~12ppm Automatic Prismatic Lithium Cell Machinery Sorting Manufacturing Equipment10ppm~12ppm Automatic Prismatic Lithium Cell Machinery Sorting Manufacturing Equipment
