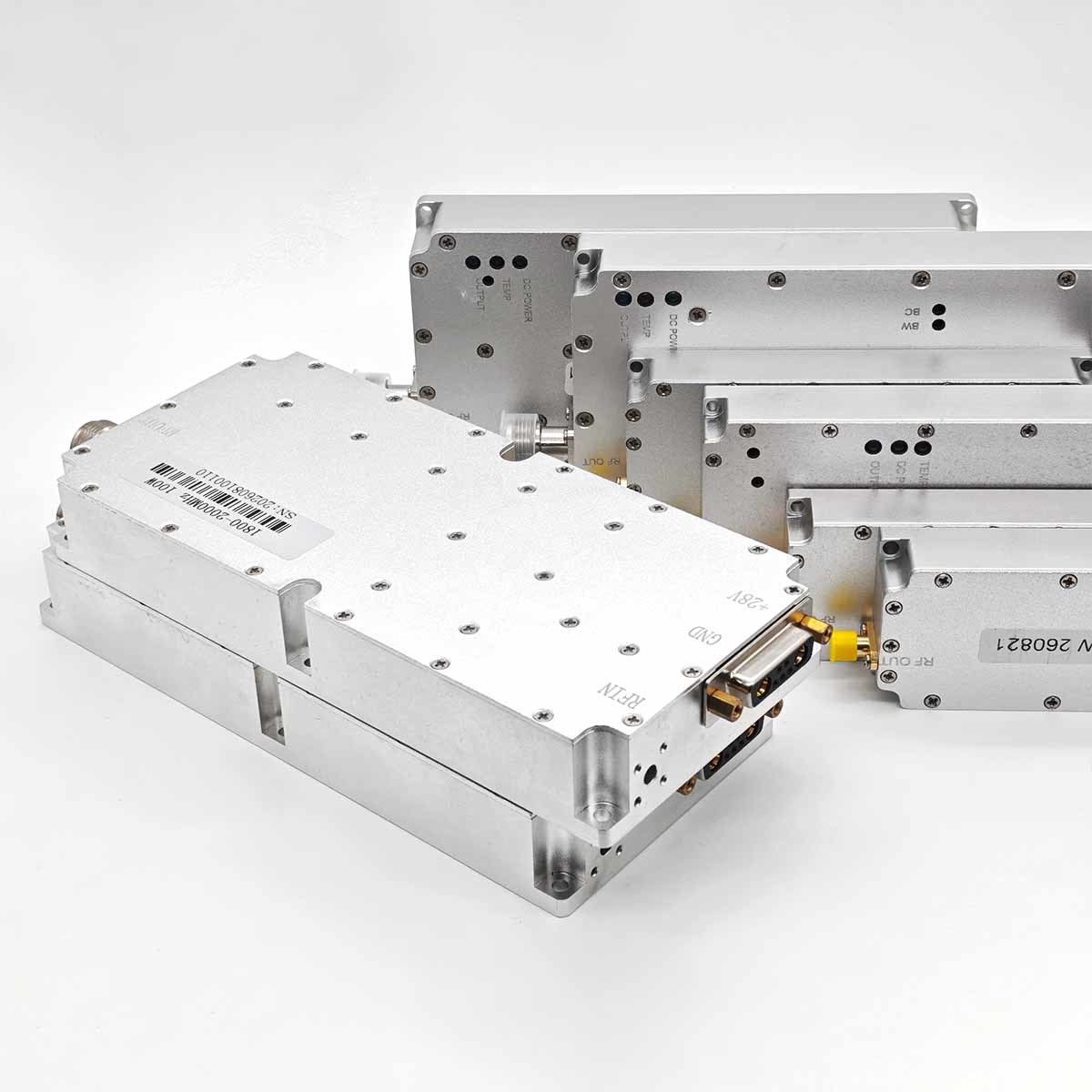

100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
Specifications
Supply Ability :
<500 pcs 10 working days
Gain :
40±1 dB
Model Number :
RAH-10W-1003000
Working Voltage :
28V
Price :
$265-$298
Packaging Details :
Carton box
Dimension :
125 *75 *18mm
Temperature Protection :
75℃
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Place of Origin :
China Mainland
Output Power (Max) :
10W
Delivery Time :
7-10 working days
Ripple in Band :
≤ 3 dB
Brand Name :
Roviyno
Frequency Range :
100MHz-4000MHz
Input Signal Source :
Built-in high-speed noise modulation signal source
MOQ :
10
LED indicator :
Yes
Description
100 MHz–3 GHz 10W Drone Jammer System RF Power Amplifier Module

RF Power Amplifiers

The PA10W, PA15W, PA75W and PA100W RF power amplifier modules are capable of providing 10 W, 15 W, 75 W and 100 W RMS power respectively. They are equipped with blanking/enabling circuitry which keeps the modules blanked (turned off) until a TTL signal (logical high) is applied. The blanking/enabling circuitry helps to conserve power, keeps the amplifiers cool under typical operating conditions, and provides noise reduction during the reception of NMR signals. The TTL signal is asserted on a 10-pin male IDC header which can be easily connected to the TTL output from the RadioProcessor™ USB boards.

1.RF DATA

Item Spec. Remarks
Frequency Range 100-3000MHz
Working Voltage 28V --
Output Power (Max) ≥40dBm 10W
Gain (Max) 40±1dB
Ripple in Band ≤10dB Peak
Enable control Customize 3-28V
temperature protection Turn off the amplifier at80 ℃
Input VSWR ≤1 .5
Output VSWR ≤3
High Low Temperature test Working Temperature -20～+85℃ Working properly
Gain Stability ±1 dB at -20℃～+55℃
Power stability ±1 dB at -20℃～+55℃
Working current ≤9A @+28V dc； CW output 5 0W
Power supply Port 7W2 28V; GND
Monitor Port 7W2 Enable control
LED indicator light Power ON/OFF
Dimension 125 *75 *18mm
Installation Dimension 96*96*92 mm
Screw Size 6-Ø3.20 mm
Weight 590g

Roviyno offers compact RF PA modules covering 100 MHz–8 GHz, with multiple wideband configurations:

WIDEBAND RFPA MODULES
Model Class Frequency Power Size
WB-10 100 MHz–3 GHz 10W 80 × 42 × 18 mm
WB-8 100 MHz–7 GHz 8W 150 × 80 × 23 mm
WB-10 400 MHz–6 GHz 10W 120 × 75 × 18 mm
WB-20 700 MHz–6 GHz 20W 200 × 100 × 23 mm
WB-30 700 MHz–6 GHz 30W 200 × 100 × 23 mm
WB-50 700 MHz–6 GHz 50W 200 × 100 × 23 mm
WB-80 1–6 GHz 80W 200 × 100 × 23 mm
WB-100 2–6 GHz 100W 150 × 80 × 23 mm
WB-100 1–3 GHz 100W 150 × 80 × 23 mm
WB-100 100 MHz–1 GHz 100W 200 × 100 × 23 mm
WB-100 300 MHz–2 GHz 100W 150 × 80 × 23 mm
WB-80 300 MHz–3 GHz 80W 158 × 122 × 25 mm
  • Wideband: 100 MHz–8 GHz
  • Output Power: 8 W–100 W
  • Compact & High Power Density
  • 28 V DC
  • OEM / Custom Solutions Available
CUSTOMIZATION RFPA PRODUCT MATRIX
100 MHz–3 GHz Wideband Anti Drone Module 10W Drone Jammer System High Sensitivity
Series Power Frequency Technology Configuration Typical Size
Compact RFPA 10–30W 20 MHz–7.5 GHz GaN / LDMOS PA / Source Compact
Mid-Power RFPA 50W 20 MHz–7.5 GHz GaN / LDMOS PA / Source 117–130 mm
High-Power RFPA 80–100W 100 MHz–7.5 GHz GaN / LDMOS PA / Source 150–200 mm
Ultra High-Power RFPA 150–200W 20 MHz–2.7 GHz GaN / LDMOS PA / Source 180–210 mm
Wideband RFPA 8–100W 100 MHz–7 GHz GaN / LDMOS PA Only Various
Smart RFPA 50W-Class 100 MHz–7.5 GHz GaN / LDMOS RS485 150 × 80 × 23 mm
