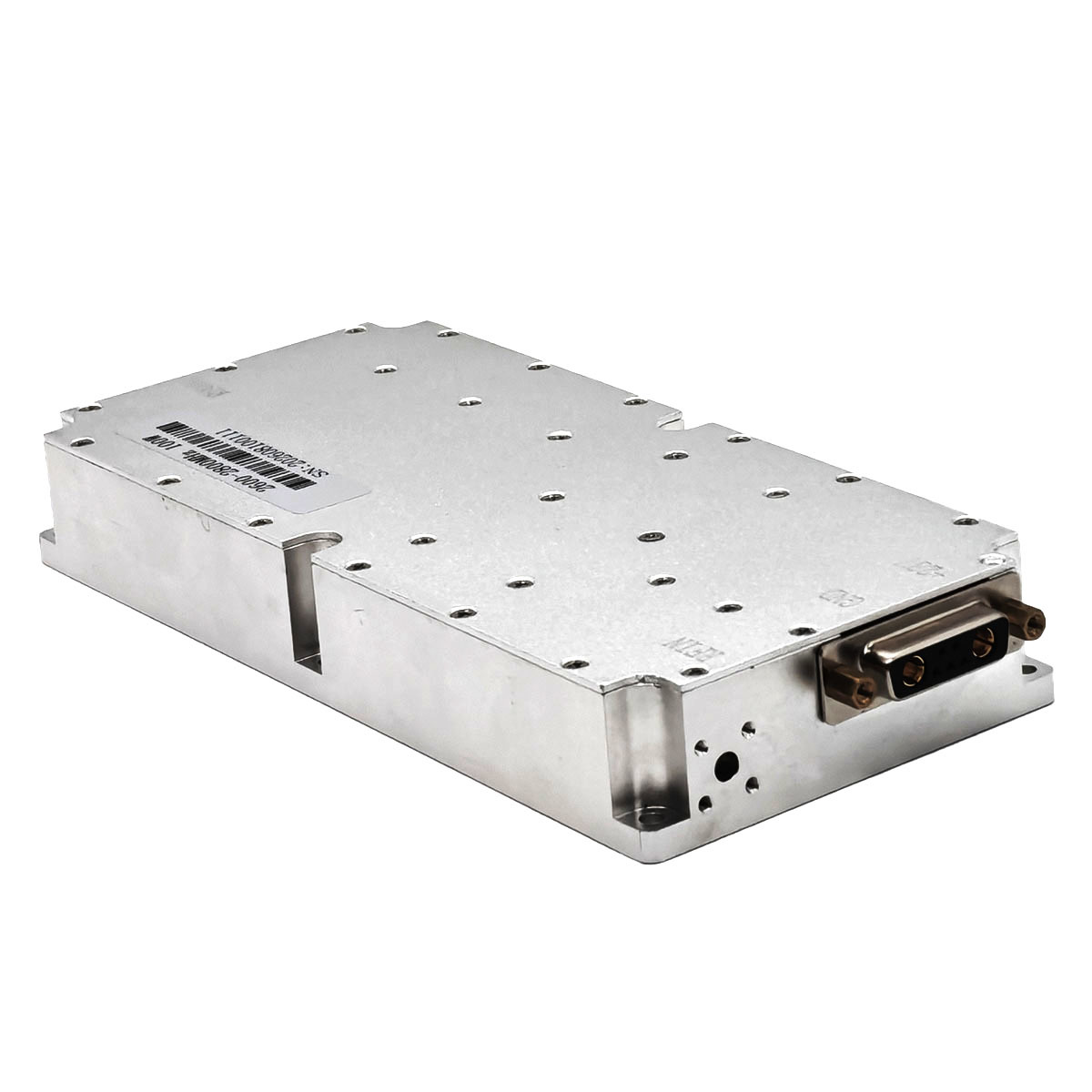

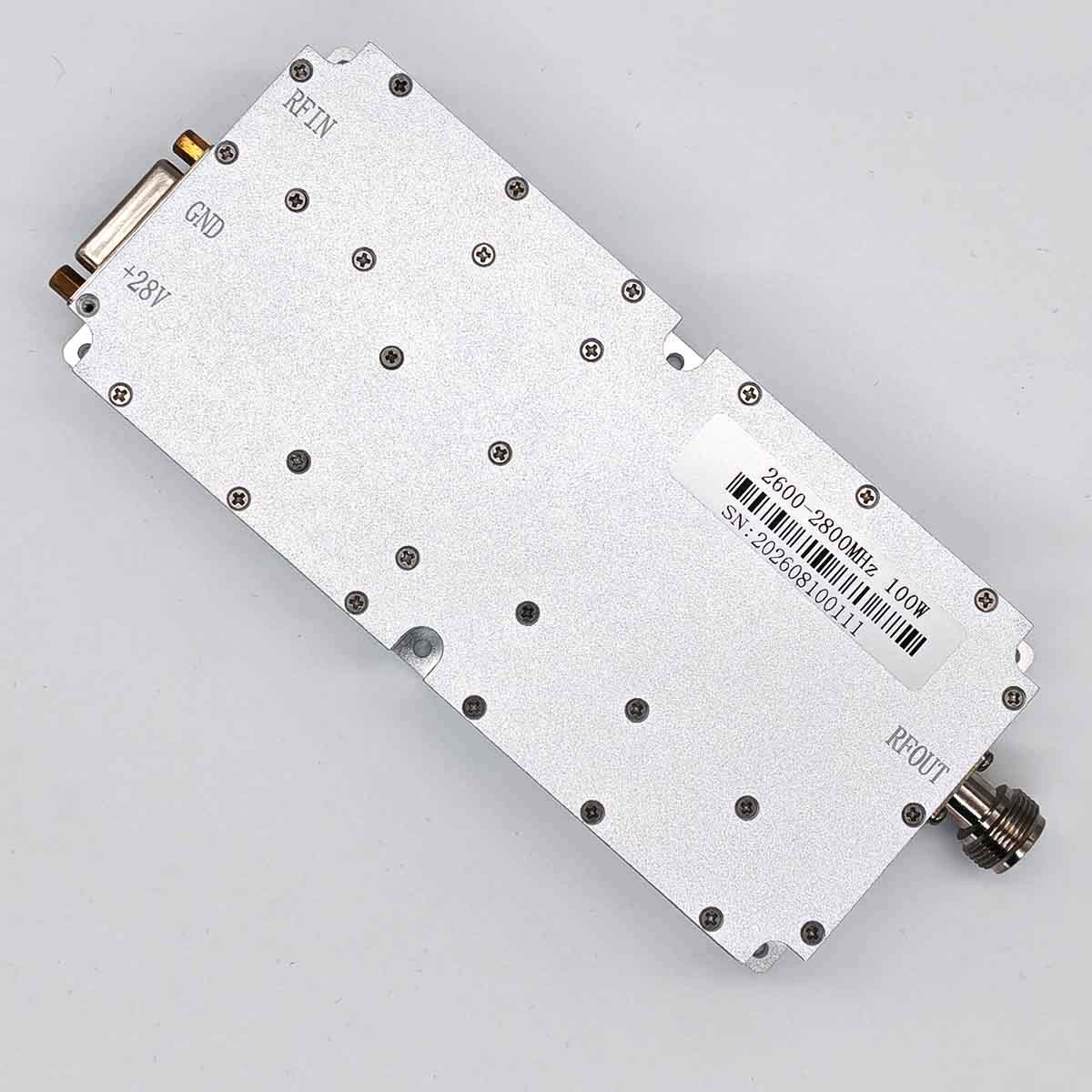

2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
Specifications
Model Number :
RAH-8W-1007000
Gain :
39±1 dB
Price :
$1,500-$1,625
Packaging Details :
Carton box
Working Temperature :
-20～+65℃
Payment Terms :
T/T
Output Power (Max) :
100W
Place of Origin :
China Mainland
Delivery Time :
7-10 working days
Frequency Range :
2000MHz-6000MHz
Temperature Protection :
75℃
Brand Name :
Roviyno
Ripple in Band :
≤ 3 dB
Product Name: :
2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules
MOQ :
10
Supply Ability :
<500 pcs 10 working days
Working Voltage :
28V
Dimension :
117 *48 *18mm
LED indicator :
Yes
Description
2000-6000MHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules

Product Highlights

  • This 2-6 GHz 100W signal jammer module not only has a stable 24/28/32V operating voltage and excellent operating current, but also has a N connector, which can withstand higher power and ensure the stability of signal transmission. In the wide operating temperature range of -40℃～65℃, the signal jammer module can work stably, ensuring that you can get reliable service in any environment.

1.RF DATA

Item Spec. Remarks
Frequency Range 400-6000MHz
Working Voltage 28V --
Output Power (Max) 50dBm 40W
Gain (Max) 50±1dB
Ripple in Band ≤10dB Peak
Enable control Customize 3-28V
temperature protection Turn off the amplifier at80 ℃
Input VSWR ≤1 .5
Output VSWR ≤3
High Low Temperature test Working Temperature -20～+85℃ Working properly
Gain Stability ±1 dB at -20℃～+55℃
Power stability ±1 dB at -20℃～+55℃
Working current ≤9A @+28V dc CW output 5 0W
Power supply Port 7W2 28V; GND
Monitor Port 7W2 Enable control
LED indicator light Power ON/OFF
Dimension 117 *48 *18mm
Screw Size 6-Ø3.20 mm


2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules

2–6 GHz 100W Drone UAV Anti Drone Jammer Power Amplifier Modules

Roviyno offers compact RF PA modules covering 100 MHz–8 GHz, with multiple wideband configurations:

WIDEBAND RFPA MODULES
Model Class Frequency Power Size
WB-10 100 MHz–3 GHz 10W 80 × 42 × 18 mm
WB-8 100 MHz–7 GHz 8W 150 × 80 × 23 mm
WB-10 400 MHz–6 GHz 10W 120 × 75 × 18 mm
WB-20 700 MHz–6 GHz 20W 200 × 100 × 23 mm
WB-30 700 MHz–6 GHz 30W 200 × 100 × 23 mm
WB-50 700 MHz–6 GHz 50W 200 × 100 × 23 mm
WB-80 1–6 GHz 80W 200 × 100 × 23 mm
WB-100 2–6 GHz 100W 150 × 80 × 23 mm
WB-100 1–3 GHz 100W 150 × 80 × 23 mm
WB-100 100 MHz–1 GHz 100W 200 × 100 × 23 mm
WB-100 300 MHz–2 GHz 100W 150 × 80 × 23 mm
WB-80 300 MHz–3 GHz 80W 158 × 122 × 25 mm
  • Wideband: 100 MHz–8 GHz
  • Output Power: 8 W–100 W
  • Compact & High Power Density
  • 28 V DC
  • OEM / Custom Solutions Available
CUSTOMIZATION RFPA PRODUCT MATRIX
Series Power Frequency Technology Configuration Typical Size
Compact RFPA 10–30W 20 MHz–7.5 GHz GaN / LDMOS PA / Source Compact
Mid-Power RFPA 50W 20 MHz–7.5 GHz GaN / LDMOS PA / Source 117–130 mm
High-Power RFPA 80–100W 100 MHz–7.5 GHz GaN / LDMOS PA / Source 150–200 mm
Ultra High-Power RFPA 150–200W 20 MHz–2.7 GHz GaN / LDMOS PA / Source 180–210 mm
Wideband RFPA 8–100W 100 MHz–7 GHz GaN / LDMOS PA Only Various
Smart RFPA 50W-Class 100 MHz–7.5 GHz GaN / LDMOS RS485 150 × 80 × 23 mm
