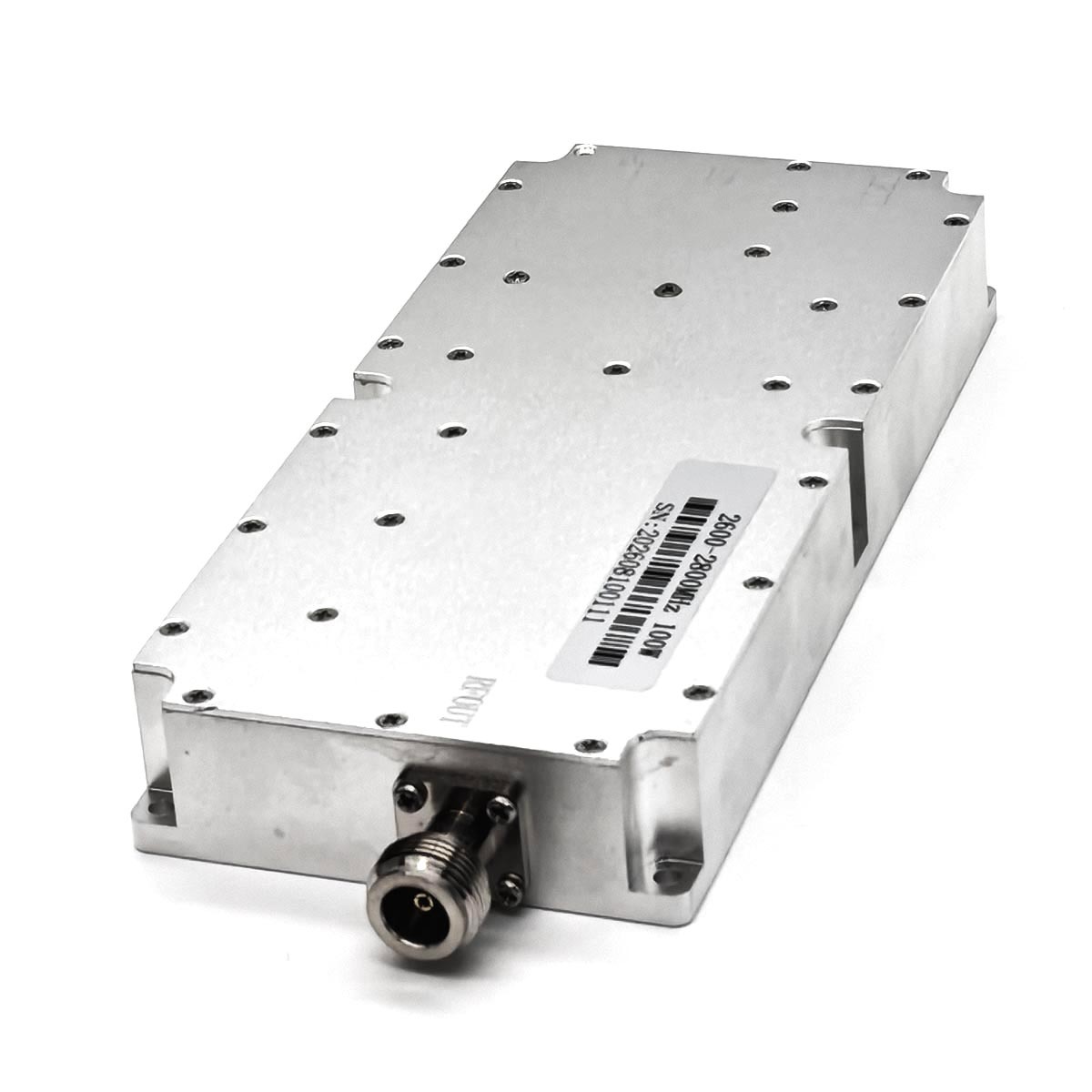

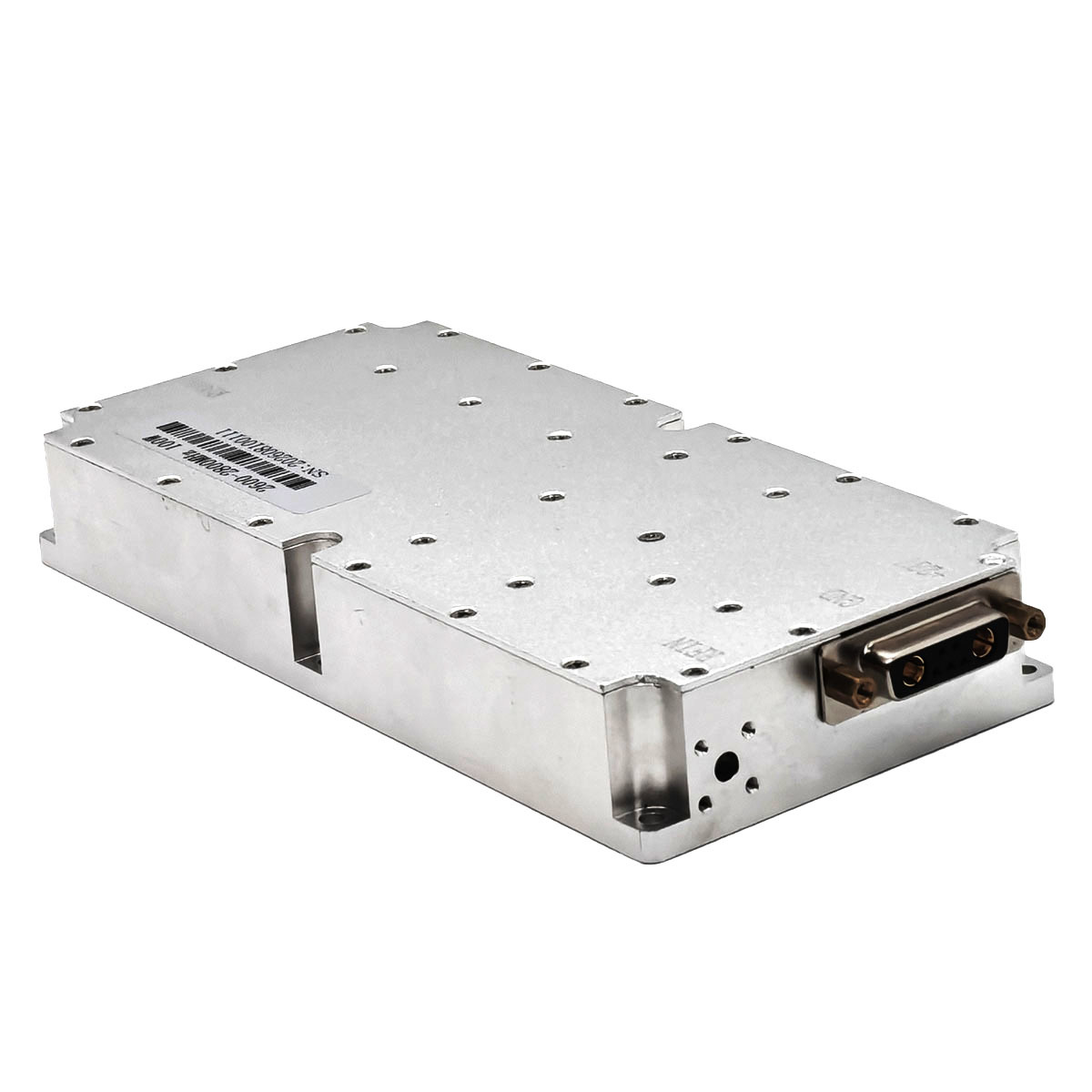

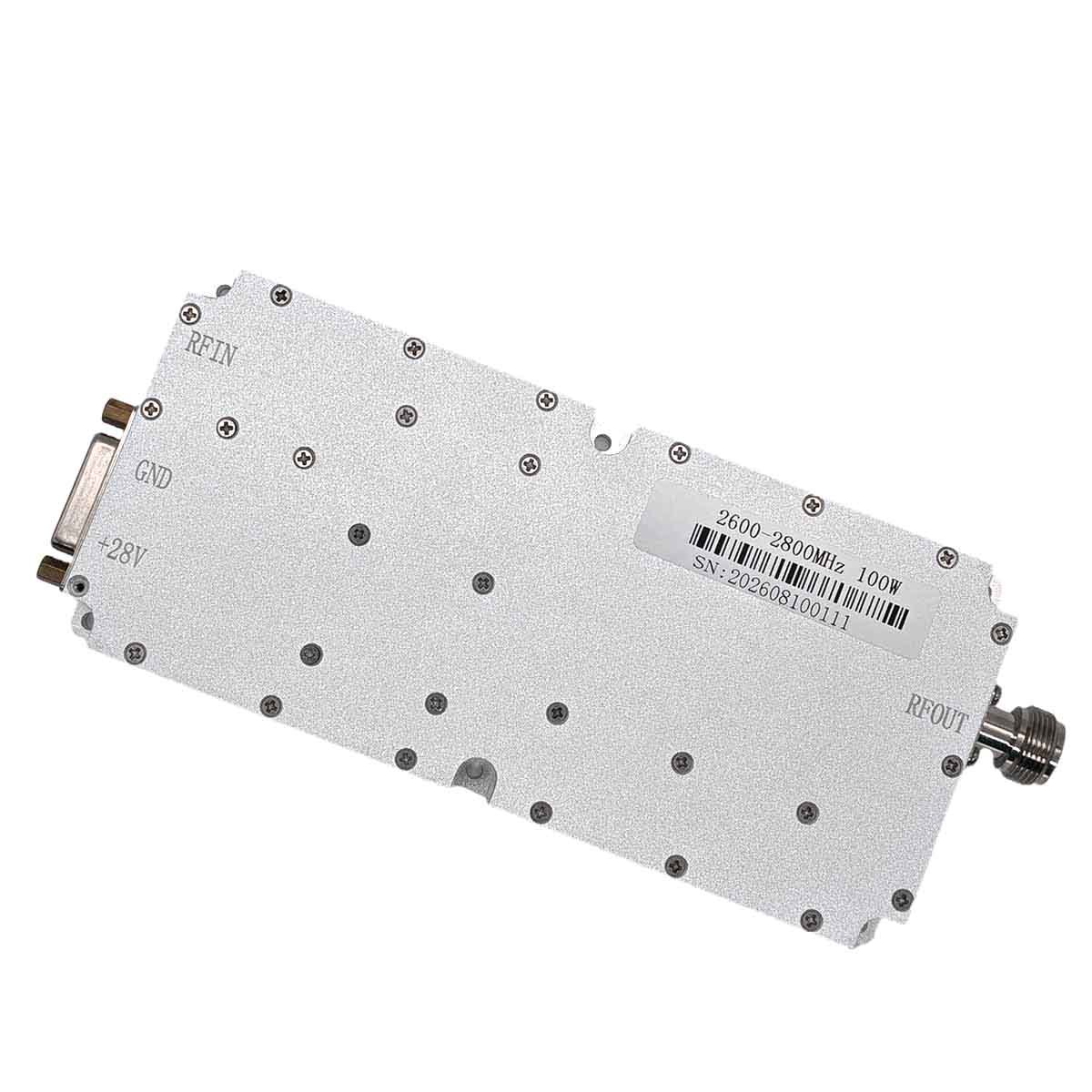

RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W
Specifications
Model Number :
RAH-50W-7006000
Working Voltage :
28V
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Place of Origin :
China Mainland
Output Power (Max) :
≥47 dBm
Price :
$1,290-$1,380
Packaging Details :
Carton box
Dimension :
200*100*25MM
Temperature Protection :
75℃
Supply Ability :
<500 pcs 10 working days
Gain :
47±1 dB
Delivery Time :
7-10 working days
Ripple in Band :
≤ 3 dB
Brand Name :
Roviyno
Frequency Range :
700 MHz–6 GHz
Input Signal Source :
Built-in high-speed noise modulation signal source
MOQ :
10
LED indicator :
Yes
Description
300 MHz–2 GHz 100W | 300 MHz–3 GHz 80W RF Power Amplifier Anti Drone Jammer Modules

1.RF DATA

Item Spec. Remarks
Frequency Range

300-2000 MHz

300MHz - 3000MHz
Working Voltage 28V --
Output Power (Max) ≥47dBm 50W
Gain (Max) 50±5dB
Ripple in Band ≤10dB Peak
Enable control Customize 3-28V
temperature protection Turn off the amplifier at80 ℃
Input VSWR ≤1 .5
Output VSWR ≤3
High Low Temperature test Working Temperature -20～+85℃ Working properly
Gain Stability ±1 dB at -20℃～+55℃
Power stability ±1 dB at -20℃～+55℃
Working current ≤9A @+28V dc； CW output 5 0W
Power supply Port 7W2 28V; GND
Monitor Port 7W2 Enable control
LED indicator light Power ON/OFF
Dimension 200*100*25 mm
Installation Dimension 96*96*92 mm
Screw Size 6-Ø3.20 mm
Weight 590g

Size:

RF Power Amplifier Anti Drone Jammer Modules 300 MHz–2 GHz 100W 300 MHz–3 GHz 80W

Roviyno offers compact RF PA modules covering 100 MHz–8 GHz, with multiple wideband configurations:

WIDEBAND RFPA MODULES
Model Class Frequency Power Size
WB-10 100 MHz–3 GHz 10W 80 × 42 × 18 mm
WB-8 100 MHz–7 GHz 8W 150 × 80 × 23 mm
WB-10 400 MHz–6 GHz 10W 120 × 75 × 18 mm
WB-20 700 MHz–6 GHz 20W 200 × 100 × 23 mm
WB-30 700 MHz–6 GHz 30W 200 × 100 × 23 mm
WB-50 700 MHz–6 GHz 50W 200 × 100 × 23 mm
WB-80 1–6 GHz 80W 200 × 100 × 23 mm
WB-100 2–6 GHz 100W 150 × 80 × 23 mm
WB-100 1–3 GHz 100W 150 × 80 × 23 mm
WB-100 100 MHz–1 GHz 100W 200 × 100 × 23 mm
WB-100 300 MHz–2 GHz 100W 150 × 80 × 23 mm
WB-80 300 MHz–3 GHz 80W 158 × 122 × 25 mm
  • Wideband: 100 MHz–8 GHz
  • Output Power: 8 W–100 W
  • Compact & High Power Density
  • 28 V DC
  • OEM / Custom Solutions Available
CUSTOMIZATION RFPA PRODUCT MATRIX
Series Power Frequency Technology Configuration Typical Size
Compact RFPA 10–30W 20 MHz–7.5 GHz GaN / LDMOS PA / Source Compact
Mid-Power RFPA 50W 20 MHz–7.5 GHz GaN / LDMOS PA / Source 117–130 mm
High-Power RFPA 80–100W 100 MHz–7.5 GHz GaN / LDMOS PA / Source 150–200 mm
Ultra High-Power RFPA 150–200W 20 MHz–2.7 GHz GaN / LDMOS PA / Source 180–210 mm
Wideband RFPA 8–100W 100 MHz–7 GHz GaN / LDMOS PA Only Various
Smart RFPA 50W-Class 100 MHz–7.5 GHz GaN / LDMOS RS485 150 × 80 × 23 mm

How does the signal jammer module work?

First, we must detect the target frequency bands. This includes WIFI, GPS and cellular frequencies.

Then, the jamming unit will emit higher-power signals to match or overlap with the target signals.

Finally, the target devices will cease to function.

Components of Signal Jammer Modules

1. Anti-Drone Antennas: They include both omnidirectional and directional antennas, which emit targeted jamming signals to effectively block the frequencies used by unauthorized drones.

2. Signal Generator: It creates jamming signals that interfere with the target signal.

3. Power Amplifier: Amplifies signal generated by signal generator so that it is strong enough for blocking the target signals.

4. Control circuit: This circuit allows the operator to configure settings and monitor performance.
