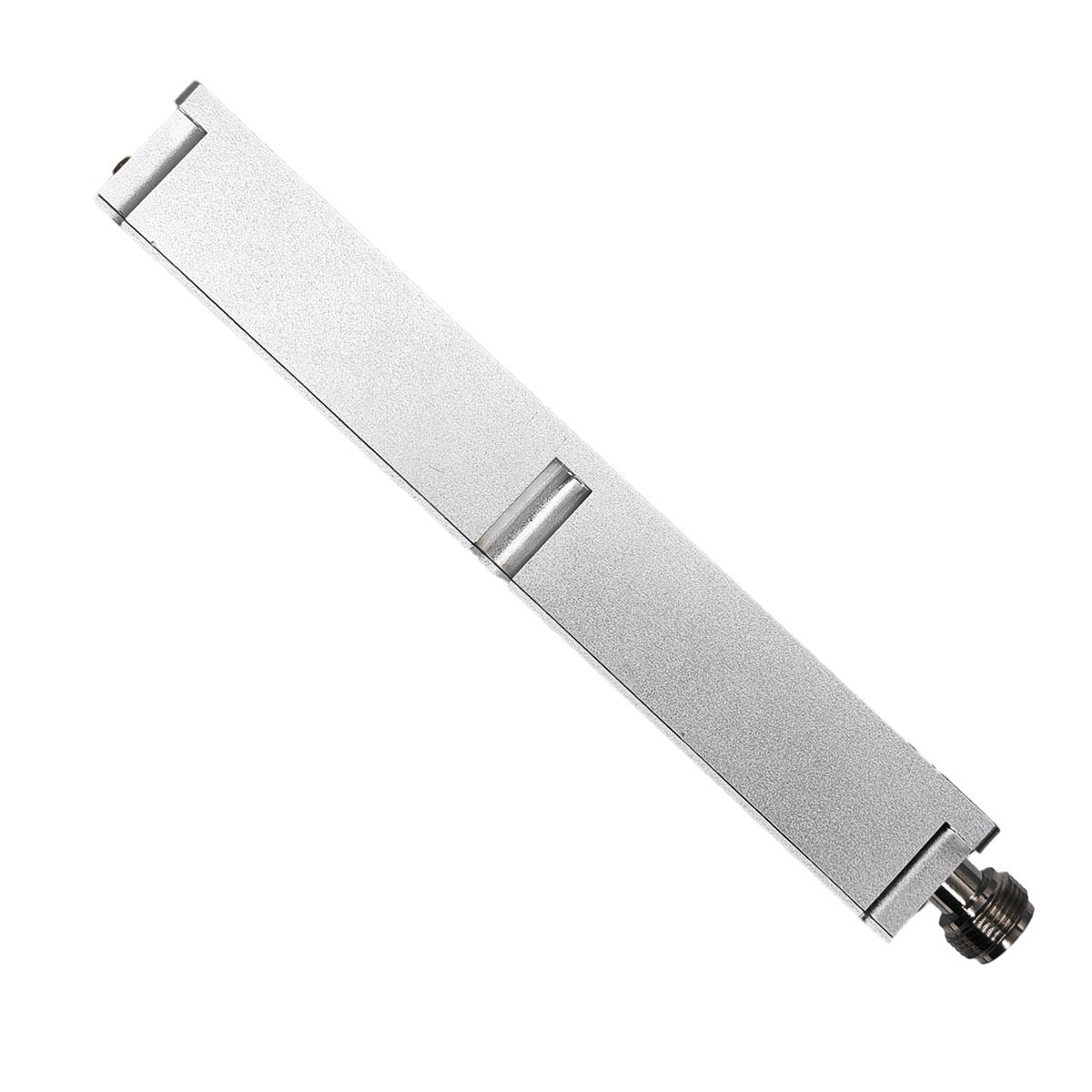

8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design
Specifications
Supply Ability :
<500 pcs 10 working days
Working Temperature :
-20～+65℃
Model Number :
RAH-8W-1007000
Frequency Range :
100MHz-7000MHz
Price :
$1,590-$1,680
Packaging Details :
Carton box
LED indicator :
Yes
Ripple in Band :
≤ 3 dB
Payment Terms :
T/T
Dimension :
150*80*23 mm
Place of Origin :
China Mainland
Working Voltage :
28V
Delivery Time :
7-10 working days
Gain :
39±1 dB
Brand Name :
Roviyno
Product Name: :
100 MHz–7 GHz 8W Broadband Anti Drone Power Amplifier GaN Module
Temperature Protection :
75℃
MOQ :
10
Output Power (Max) :
8W
Description
100 MHz–7 GHz 8W Broadband Anti Drone Power Amplifier GaN Module

Meet your performance and bandwidth needs with our RF amplifiers

Factory-direct custom RF power amplifier modules for RF system integrators. Select standard or custom frequency ranges, output power, cooling method, VSWR protection, control interface and test evidence for C-UAS, medical, radar, telemetry and industrial RF systems.

1.RF DATA

Item Spec. Remarks
Frequency Range 100-7000MHz
Working Voltage 28V --
Output Power (Max) ≥39dBm 40W
Gain (Max) 39±1dB
Ripple in Band ≤10dB Peak
Enable control Customize 3-28V
temperature protection Turn off the amplifier at80 ℃
Input VSWR ≤1 .5
Output VSWR ≤3
High Low Temperature test Working Temperature -20～+85℃ Working properly
Gain Stability ±1 dB at -20℃～+55℃
Power stability ±1 dB at -20℃～+55℃
Working current ≤9A @+28V dc； CW output 5 0W
Power supply Port 7W2 28V; GND
Monitor Port 7W2 Enable control
LED indicator light Power ON/OFF
Dimension 150*80*23 mm
Screw Size 6-Ø3.20 mm

8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design

8W Broadband Anti Drone Power Amplifier GaN Module 100 MHz–7 GHz Compact Design

Roviyno offers compact RF PA modules covering 100 MHz–8 GHz, with multiple wideband configurations:

WIDEBAND RFPA MODULES
Model Class Frequency Power Size
WB-10 100 MHz–3 GHz 10W 80 × 42 × 18 mm
WB-8 100 MHz–7 GHz 8W 150 × 80 × 23 mm
WB-10 400 MHz–6 GHz 10W 120 × 75 × 18 mm
WB-20 700 MHz–6 GHz 20W 200 × 100 × 23 mm
WB-30 700 MHz–6 GHz 30W 200 × 100 × 23 mm
WB-50 700 MHz–6 GHz 50W 200 × 100 × 23 mm
WB-80 1–6 GHz 80W 200 × 100 × 23 mm
WB-100 2–6 GHz 100W 150 × 80 × 23 mm
WB-100 1–3 GHz 100W 150 × 80 × 23 mm
WB-100 100 MHz–1 GHz 100W 200 × 100 × 23 mm
WB-100 300 MHz–2 GHz 100W 150 × 80 × 23 mm
WB-80 300 MHz–3 GHz 80W 158 × 122 × 25 mm
  • Wideband: 100 MHz–8 GHz
  • Output Power: 8 W–100 W
  • Compact & High Power Density
  • 28 V DC
  • OEM / Custom Solutions Available
CUSTOMIZATION RFPA PRODUCT MATRIX
Series Power Frequency Technology Configuration Typical Size
Compact RFPA 10–30W 20 MHz–7.5 GHz GaN / LDMOS PA / Source Compact
Mid-Power RFPA 50W 20 MHz–7.5 GHz GaN / LDMOS PA / Source 117–130 mm
High-Power RFPA 80–100W 100 MHz–7.5 GHz GaN / LDMOS PA / Source 150–200 mm
Ultra High-Power RFPA 150–200W 20 MHz–2.7 GHz GaN / LDMOS PA / Source 180–210 mm
Wideband RFPA 8–100W 100 MHz–7 GHz GaN / LDMOS PA Only Various
Smart RFPA 50W-Class 100 MHz–7.5 GHz GaN / LDMOS RS485 150 × 80 × 23 mm

  • RF fully differential amplifiers (FDAs)

    Achieve industry-leading HD2/HD3 distortion performance while optimizing for space and cost

  • RF gain block amplifiers

    Cost-effective, wide-bandwidth gain blocks with low power in a small footprint

  • RF low noise amplifiers (LNAs)

    Low noise RF amplifiers offering optimized noise performance, combined with compression and distortion performance that maximizes system dynamic range

  • RF variable gain amplifiers (VGAs)

    Variable gain amplifiers with high dynamic range and wide bandwidth for signal conditioning
