700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
Specifications
Model Number :
PAH50W-7006000
Saturated Output Power :
50W
MOQ :
1~99
Delivery Time :
5-8 Days
Nominal Operating Voltage: :
28V DC(Wide voltage compatibility: 24~30V DC)
Price :
$1,650-$1,980
Operating Current: :
≤8A (100W output power)
Certification :
CE
In band Gain Ripple: :
≤3.0dB
Supply Ability :
5000
RF Output Connector :
N-type head
Brand Name :
Roviyno
Frequency Range: :
700-6000MHz(Bandwidth adjustable by ±10MHz)
Packaging Details :
Carton
Payment Terms :
T/T
Operating Temperature: :
-40℃ ~ +55℃
Place of Origin :
China
Anti-burnout Load VSWR Tolerance: :
6:1
Description
700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
Product Highlights
  • Customizable Frequency Range: Supports 700-6000MHz with adjustable power for specific bands.
  • High Output Power: Provides 50W output power per band for effective jamming.
  • Wide Jamming Coverage: Blocks signals from 1000 to 1500 meters depending on signal strength.
  • OEM/ODM Service: Offers custom brand logos and frequency configurations for OEM/ODM orders.
  • Multi-Band Support: Covers 2G/3G/4G/5G, WiFi, GPS, UAV, and various radio frequencies.
  • Advanced DDS Technology: Uses Direct Digital Synthesis for precise frequency and power regulation.
  • Safety Protection: Includes VSWR over protection isolators for each modular component.
  • Professional Manufacturer: ISO 9001 & 14001 certified with 5000 units monthly production capacity.

700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV

1. RF DATA
Item Spec. Remarks
Frequency Range 700-6000 MHz
Working Voltage 28V --
Output Power (Max) ≥47dBm 50W
Gain (Max) 50±5dB
Ripple in Band ≤ 10dB Peak
Enable control Customize 3-28V
temperature protection Turn off the amplifier at 80 ℃
Input VSWR ≤1.5
Output VSWR ≤3
High Low Temperature test Working Temperature -20～+85℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Working current ≤9A @+28V dc； CW output 5 0W
Power supply Port 7W2 28V; GND
Monitor Port 7W2 Enable control
LED indicator light Power ON/OFF
Dimension 200*100*25 mm
Installation Dimension 96*96*92 mm
Screw Size 6-Ø3.20 mm
Weight 590g
Environmental & Interface Specifications
Parameter Description
Operating ambient temperature -25 ～ +55 ℃
Operating temperature Over-temperature protection: Auto shutdown at +85 ℃, auto recovery when temperature drops to 65 ℃
Relative humidity 5% ~ 95% , non-condensing
Storage temperature -40 to +85 ℃
Built in signal Built in signal source
RF Output Type-N Connector

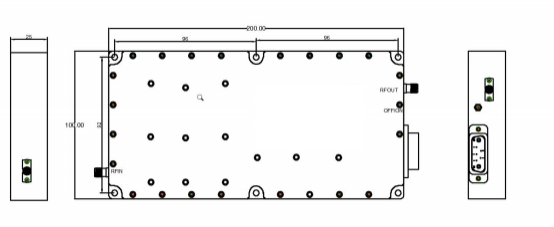

Size:

700-6000MHz 50W Wideband RF Power Amplifier Module for Anti Drone FPV UAV
