70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module
70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module
70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module
70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module
Specifications
Payment Terms :
T/T
Signal Bandwidth: :
50MHz ~ 400MHz
Digital Attenuation Range： :
0 ~ 10db
Output Power Range： :
-10dBm ~ +3dBm (Customizable)
Supply Ability :
5000
Frequency Range: :
70MHz ~ 6000MHz
Brand Name :
Roviyno

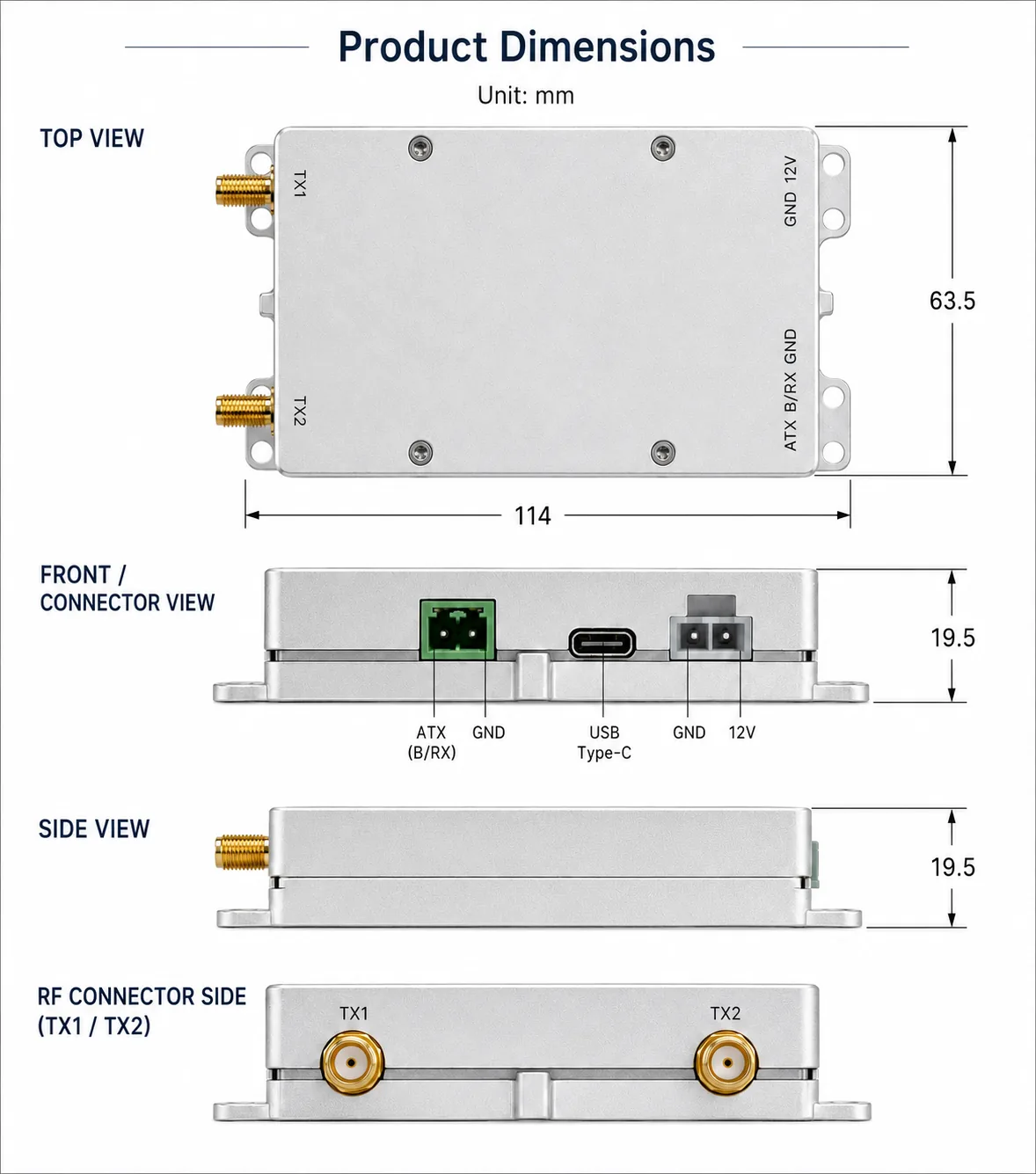

Dimensions： :
114mm × 63.5mm × 19.5mm
Packaging Details :
Carton
Model Number :
XB706
Operating Temperature： :
-25℃ ~ +65℃
MOQ :
1~99
Delivery Time :
5-8 Days
Power Supply Voltage： :
12.0V ~ 28.0V (Nominal 12V)
Price :
1493
Scan Speed (Example): :
2.34ms to Scan 2000MHz Bandwidth
Certification :
CE
Place of Origin :
China
Description

70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module

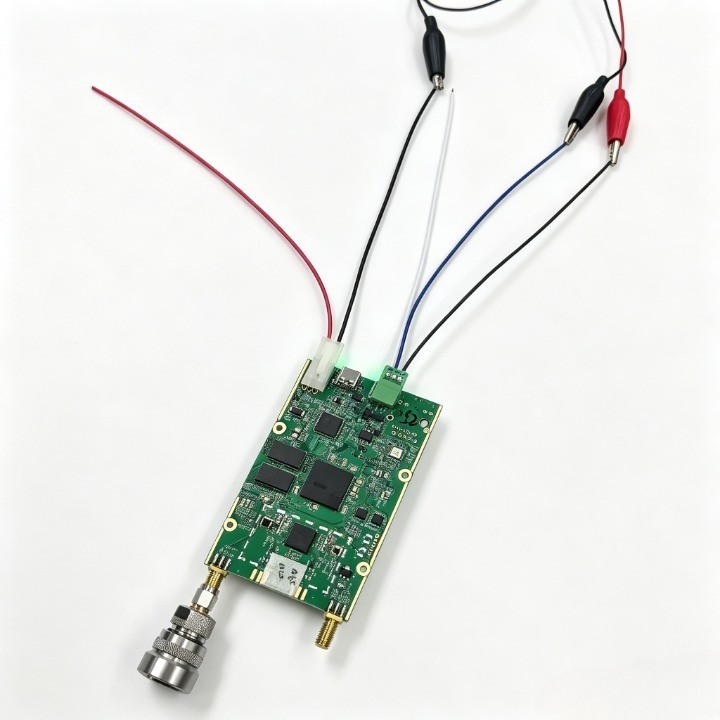

The Digital Signal Source Module is designed for wideband RF systems, supporting 70–6000MHz output and 50–400MHz signal bandwidth. With dual RF outputs, programmable control, and flexible frequency settings, it is suitable for anti-drone and communication control applications.The module can be used for RF signal simulation, anti-drone system integration, communication-control research, equipment verification, and controlled jammer testing.


70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module

70MHz~6GHz Digital Signal Source Module 50–400MHz Signal Bandwidth Anti Drone Module


Key Features

  1. Ultra-wide frequency coverage: 70MHz ~ 6GHz, covers mainstream drone and communication frequency bands
  2. Dual SMA TX RF output channels, support simultaneous dual-signal transmission
  3. Programmable signal generator with millisecond-level fast frequency sweep
  4. Supports multiple waveforms: LFM, GFSK, noise signal and more
  5. Unique Frequency Window Masking Function: Avoid interfering with your own communication equipment
  6. Customizable RF output power, easy to match with rear-stage power amplifiers
  7. RS485 communication interface, convenient for upper computer remote control & secondary development
  8. Compact modular design, easy to embed into finished equipment
  9. Wide operating temperature range, suitable for outdoor and vehicle-mounted deployment
  10. Factory direct supply, support OEM and personalized parameter customization



Indicators


Frequency range 70MHz~6000MHz
Signal bandwidth 5OMHz~400MHz
Scanning time Bandwidth: 2000MHz Time: 2.34ms
Bandwidth:400MHz Time:0.123ms
Output power -10~+17 (Customizable)
Digital ATT 0~10dB
Supplyvoltage 12.0V~28.0V(12V)
Operating temperature -25 °C~65 °C
Signal style Monophony, dual-tone, LFM, GFSK,noise
