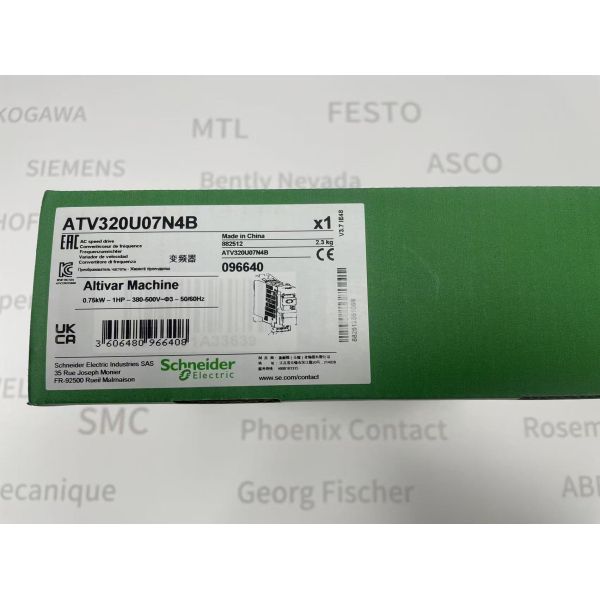

Schneider Electric ATV320U07N4B VFD | 0.75kW, 1HP, 230V 1-Phase, Modbus, IP20
Schneider Electric ATV320U07N4B VFD | 0.75kW, 1HP, 230V 1-Phase, Modbus, IP20
Schneider Electric ATV320U07N4B VFD | 0.75kW, 1HP, 230V 1-Phase, Modbus, IP20
Schneider Electric ATV320U07N4B VFD | 0.75kW, 1HP, 230V 1-Phase, Modbus, IP20
Specifications
Delivery Time :
Negotiable
Price :
Negotiable
MOQ :
1
Certification :
ATEX
Packaging Details :
carton
Payment Terms :
T/T,XT,ALIPAY
Electrical Rating :
General Purpose, Explosion-proof, Intrinsic Safety (depends on certification)
Certifications :
Standard models include ATEX, IECEx, SIL 2 (consult manual for specific ratings)
Supply Ability :
100pcs per month
Brand Name :
Schneider Electric
Model Number :
ATV320U07N4B
Power Supply :
12-30 V DC (Two-wire)
Ambient Temperature :
-40°C to 80°C (-40°F to 176°F)
Description

Schneider Electric ATV320U07N4B VFD | 0.75kW, 1HP, 230V 1-Phase, Modbus, IP20

Schneider Electric ATV320U07N4B drive specifications. Altivar 320 variable speed drive, 0.75kW, 230V 1-phase input, Modbus, IP20, for motor control.

Product Overview

The Schneider Electric ATV320U07N4B is an Altivar 320 series variable speed drive (VFD) designed for precise control of 3-phase asynchronous motors. This compact model is rated for 0.75 kW (1 HP) output, accepts a 230V single-phase AC input, and provides a 0-230V 3-phase output. It features integrated Modbus communication and is suitable for a wide range of industrial applications requiring speed, torque, or energy management.

Technical Specifications

Parameter

Specification

Manufacturer​

Schneider Electric SE

Series​

Altivar 320

Model​

ATV320U07N4B

Product Type​

Variable Speed Drive (VSD/VFD)

Rated Power​

0.75 kW (1 HP)

Input Voltage​

200-240V AC, 1-Phase, 50/60 Hz

Output Voltage​

0 to Input Voltage, 3-Phase

Output Current​

4.0 A (at 240V)

Overload Capacity​

150% for 60 s

Control Methods​

V/F, Sensorless Flux Vector Control (SVC)

Integrated Communication​

Modbus RS485

Digital I/O​

4 digital inputs, 2 relay outputs, 1 analog input, 1 analog output

Enclosure Rating​

IP20

Mounting​

Wall mount or panel mount

Dimensions (H x W x D)​

146 × 73 × 142 mm

Ambient Temperature​

-10 to 50°C (14 to 122°F) derating above 40°C

Certifications​

CE, cULus, ATEX (option)

Key Features

  • Compact Design:​ Saves space in control panels

  • Single-Phase Input:​ Easy connection to standard 230V AC supply

  • Integrated Modbus:​ Enables network communication for control and monitoring

  • Advanced Motor Control:​ Sensorless Flux Vector Control for improved low-speed torque

  • Energy Saving Functions:​ Automatic energy optimization reduces motor power consumption

  • Graphic Display Terminal (Optional):​ ATV320HU**N for easy setup and diagnostics

  • Built-in PLC Function:​ Simple sequence programming capability

  • Wide Application Range:​ Pumps, fans, conveyors, machine tools

Applications

  • Pump and fan control for HVAC and water systems

  • Conveyor and material handling systems

  • Packaging and food processing machinery

  • Machine tools and general automation

  • Any application requiring precise 3-phase motor speed control from a single-phase supply

Important Notes

  1. This drive is designed for 3-phase motor control; the motor must be compatible with the drive's output specifications.

  2. A graphic display terminal (e.g., ATV320HU**N) is optional for local control and parameter access.

  3. For Modbus communication, a separate communication cable and network interface are required.

  4. External braking resistors or DC bus chokes may be required for high-inertia loads or frequent deceleration.

  5. Ensure proper grounding and installation according to local electrical codes and the drive's manual.
