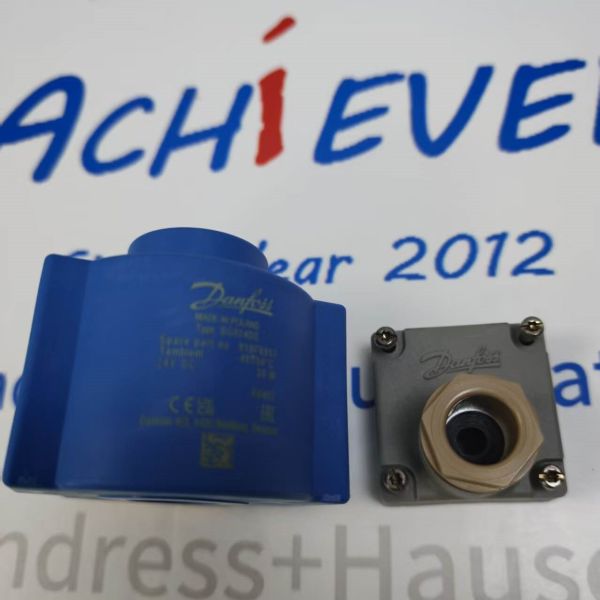

Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65

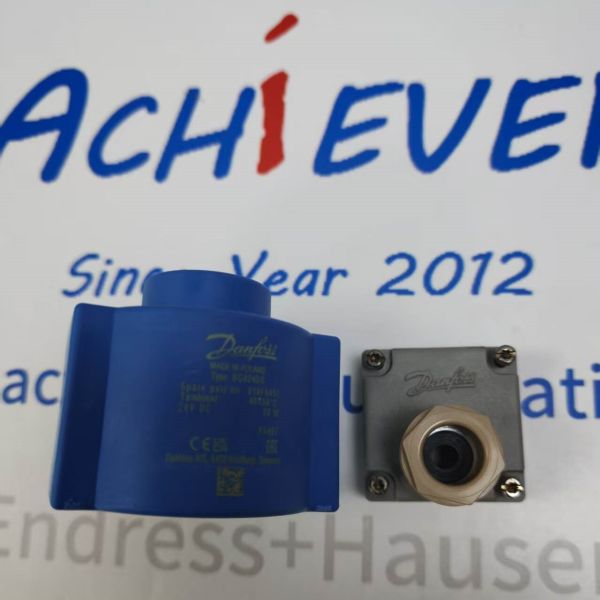

Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65

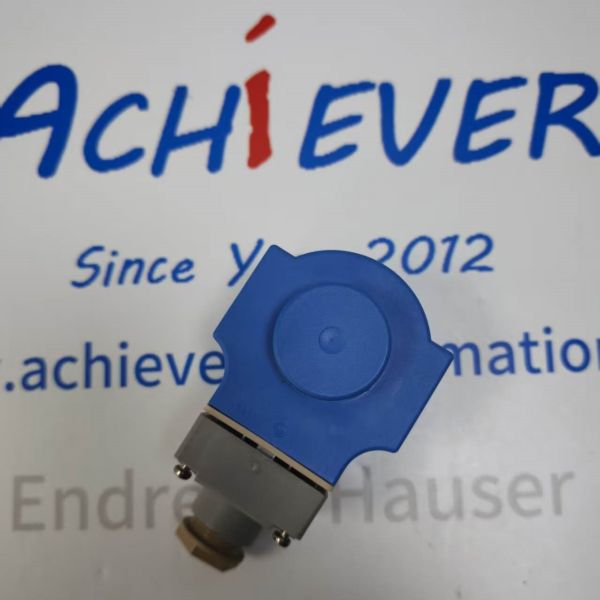

Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65

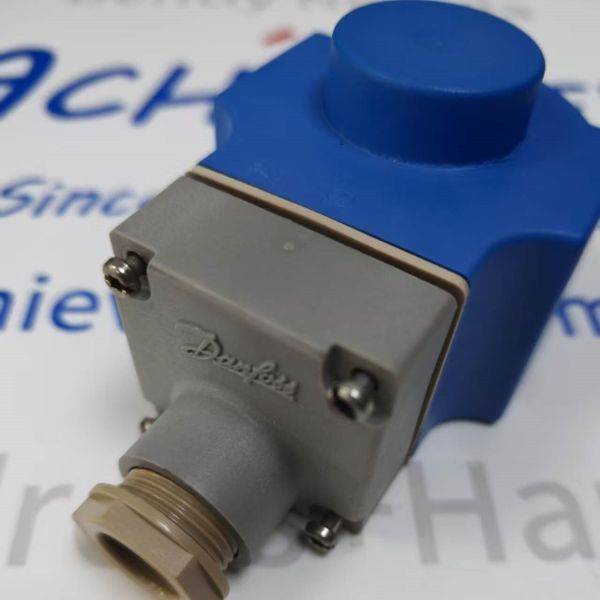

Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Specifications
Model Number :
018F6857
Brand Name :
Danfoss
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Ambient Temperature :
-
Supply Ability :
100pcs per month
Power Supply :
1
Price :
Negotiable
Electrical Rating :
G
Certification :
ATEX
Place of Origin :
DK
Packaging Details :
carton
Certifications :
S
Description
Danfoss 018F6857 | BF Series Solenoid Coil, 230V AC 50/60Hz, 8W, IP65
Danfoss 018F6857 BF-type solenoid coil. 230V AC 50/60Hz, 8W, IP65 with DIN 43650 A connector, for EV210B/EV220B/EV310B/EV320B valves.

Product Overview

The Danfoss 018F6857​ is a BF-type solenoid coil (Type B flange with Ø13.5 mm center hole, 27.5 mm height)​ designed to mount on Danfoss EV210B, EV220B, EV310B, and EV320B pilot-operated and direct-acting solenoid valves. It operates on 230 V AC (50/60 Hz)​ at 8 W power consumption​ and achieves IP65 protection​ when used with a proper DIN 43650 A (EN 175301-803 Form A) connector. The coil is the standard 230V AC option for the widely used DN15–DN50 EV220B / EV210B series in European HVAC and industrial installations.

Technical Specifications (Electrical)

Parameter
Specification
Danfoss Order Code​
018F6857​
Coil Series​
BF (Type B — DIN 43650 Form A flange, 27.5 mm height, Ø13.5 mm valve stem hole)​
Rated Voltage​
230 V AC​ (50/60 Hz)
Power Consumption​
8 W​ (AC — inrush ~15 VA, holding 8 W)
Duty Cycle​
100 % ED (Continuous Duty)​
Insulation Class​
Class F (155 °C)​ — typical for BF coils
Terminal Type​
DIN 43650 A (EN 175301-803 Form A) — Connector Ordered Separately​
Protection (with Connector)​
IP65​ (with properly seated DIN connector + gasket)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Flange Type / Mount​
Type B — Bayonet / Screw-fasten onto solenoid valve yoke (M3.5×0.6 screw)
Center Hole Diameter​
13.5 mm (fits EV210B/220B/310B/320B valve stems)
Coil Height (Installed)​
~27.5 mm (BF standard)
Housing Material​
Thermoset / Thermoplastic (Black)
Operating Ambient Temp.​
-10 … +50 °C​ (Coil Surface)
Storage Temperature​
-40 … +80 °C
Standards / Approvals​
CE, UL Recognized Component (on many valve assemblies), EN 60730
Compatible Valves​
Danfoss EV210B, EV220B (PN16/PN25), EV310B, EV320B (with Type B yoke)

Key Features

  • Direct Fit for Danfoss Solenoid Valves:​ Exact BF-Type B flange matches the yoke on EV210B/220B/310B/320B bodies — no adapter needed.
  • DIN 43650 A Standard:​ Uses the universal Form A connector (e.g., Danfoss 018F6721 or generic DIN A plug with LED/varistor options) — easy to source worldwide.
  • 8W AC — Low Heat:​ Moderate power draw with good holding force; AC coil self-de-energizes on zero-cross — no DC holding circuit needed.
  • IP65 When Properly Connected:​ Achieves dust-tight / water-jet protection with a correctly seated DIN 43650 connector and rubber gasket.

Applications

  • HVAC & Building Services:​ Powering 230V AC solenoid valves in chilled/hot water loops, boiler feed lines, and cooling tower bypass.
  • Industrial Process:​ Switching process water, compressed air (check valve rating), or light oil with DN15–DN50 Danfoss solenoid valves.
  • Retrofit / Spare:​ Replacement coil for existing Danfoss solenoid valve installations originally shipped with 230V AC coil.
  • Irrigation & Agricultural Pumping:​ 230V AC coil matches common European single-phase supply for main-line solenoid shut-off valves.
Note: The DIN 43650 A connector (plug + gasket + screw cap)​ is NOT included​ with the coil — common match is Danfoss 018F6721​ (with LED + varistor protection) or a generic Form A plug. For 24V DC / 24V AC / 110V AC​ coils on the same valve bodies, see other BF coil codes (e.g., 018F6701 = 24V DC 6W, 018F6758 = 230V AC 8W older code — verify current catalog). Always confirm your valve's yoke type is "Type B" before ordering — older Type A (low-profile) coils are not interchangeable.
