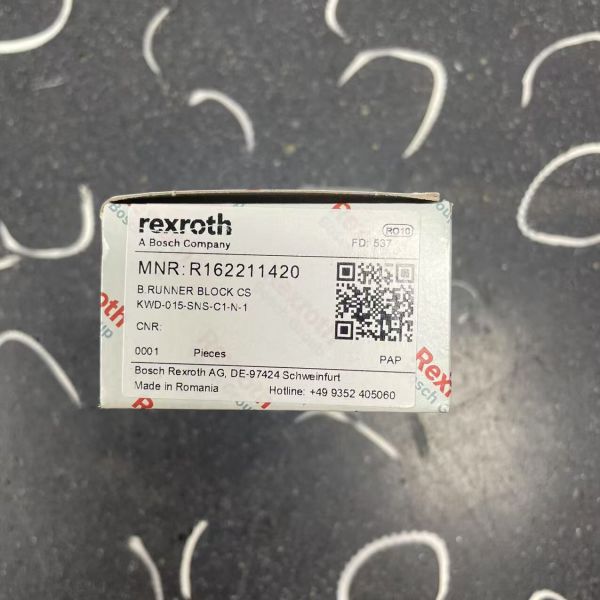

Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420
Specifications
Brand Name :
Rexroth
Model Number :
KWD-015-SNS-C1-N-1
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Rexroth KWD-015-SNS-C1-N-1 | Size 15 SNS Linear Guide Block R162211420

Rexroth KWD-015-SNS-C1-N-1 ball runner block. Size 15, SNS slimline design, carbon steel, C1 preload. 9860N dynamic load, for R1605/R1607 rails.

Product Overview

The Rexroth KWD-015-SNS-C1-N-1​ (Order Code: R162211420) is a Size 15 carbon steel ball runner block​ from the Linear Ball Rail System​ family. Characterized by its SNS (Slimline, Normal length, Standard height)​ profile, this carriage is designed for high-load applications where lateral space is constrained. It features a C1 (low/moderate) preload​ and N (normal) accuracy class, offering a dynamic load capacity of 9,860 N. Pre-lubricated with Dynalub 510 grease and equipped with standard seals, it is a core component for precision linear motion systems in machine tools and automation equipment.

Technical Specifications (Identification & Load)

Parameter

Specification

Brand / Series​

Rexroth / Linear Ball Rail System

Order Number​

R162211420​

Model Code​

KWD-015-SNS-C1-N-1

Nominal Size​

15 mm​

Design Type​

SNS​ (Slimline, Normal, Standard Height)

Preload Class​

C1​ (Low / Moderate Preload)

Accuracy Class​

N​ (Normal)

Dynamic Load Capacity (C)​

9,860 N​

Static Load Capacity (C0)​

12,700 N​

Dynamic Torsional Moment (Mt)​

95 Nm

Static Torsional Moment (Mt0)​

120 Nm

Technical Specifications (Mechanical & Physical)

Parameter

Specification

Housing Material​

Carbon Steel​ (CS)

Seal Type​

SS​ (Standard Seal, both sides)

Ball Chain​

Without Ball Chain

Block Width (A)​

34.0 mm

Block Length (B)​

58.2 mm

Block Height (H1)​

19.9 mm

Assembly Height (H)​

24.0 mm (with rail)

Weight​

Approx. 0.175 kg

Lubrication​

Pre-lubricated (Dynalub 510)

Operating Temperature​

-10 °C to +80 °C (short-term +100 °C)

Max. Speed​

5 m/s

Max. Acceleration​

500 m/s²

Key Features

  • Space-Saving SNS Design:​ The slimline width (34mm) allows for compact machine design and multi-axis configurations.

  • High Load Capacity:​ Robust carbon steel construction supports high dynamic loads (9.86 kN) and moments.

  • Interchangeable System:​ Compatible with Rexroth Ball Rail sizes 15 (e.g., R1605, R1607 series) within the same accuracy class.

  • Maintenance-Friendly:​ Features standard contact seals (SS) and integrated lubrication nipples for easy re-greasing.

Applications

  • CNC machine tools and machining centers

  • Precision gantry systems and linear robots

  • Industrial automation equipment and transfer lines
