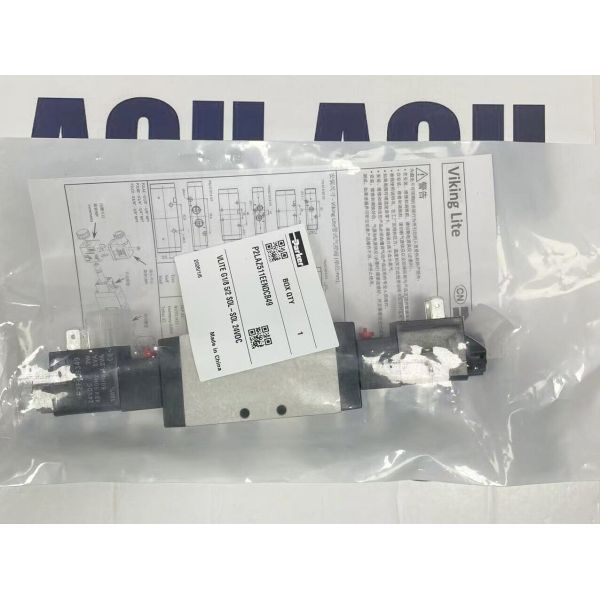

Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
Specifications
Delivery Time :
Negotiable
Price :
Negotiable
Ambient Temperature :
-
Packaging Details :
carton
Certification :
ATEX
Electrical Rating :
G
Certifications :
S
Payment Terms :
T/T,XT,ALIPAY
Power Supply :
1
Brand Name :
Parker
Supply Ability :
100pcs per month
Model Number :
P2LAZ511EENDCB49
Place of Origin :
FR
MOQ :
1
Description

Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1

Parker P2LAZ511EENDCB49 Viking Lite series 5/2-way solenoid valve. Single solenoid, spring return, 24V DC, G1/4 port, 10 bar max pressure for pneumatic cylinders.

Product Overview

The Parker P2LAZ511EENDCB49​ is a 5/2-way single solenoid, spring return directional control valve​ from the Viking Lite (P2L) series. It features an ISO 5599/1 interface​ for easy mounting on subplates and is designed for controlling double-acting pneumatic actuators. The valve operates on 24V DC​ and is built with an aluminum body for compact, reliable performance in industrial automation.

Technical Specifications (Valve & Pneumatic)

Parameter

Specification

Part Number​

P2LAZ511EENDCB49​

Series​

Viking Lite (P2L)

Function​

5/2-way, Single Solenoid, Spring Return​

Porting Standard​

ISO 5599/1​

Port Size​

G1/4"​ (BSPP thread)

Orifice / Cv​

~6 mm (Cv ~1.1)

Max. Operating Pressure​

10 bar​ (145 psi)

Min. Operating Pressure​

1.5 bar (differential)

Fluid Medium​

Compressed Air (lubricated or non-lubricated)

Technical Specifications (Electrical & Mechanical)

Parameter

Specification

Voltage​

24V DC​

Power Consumption​

~2.5 W

Coil Protection​

IP65​ (with connector)

Manual Override​

Yes (integrated)

Body Material​

Aluminum Alloy

Seal Material​

NBR (Nitrile)

Operating Temperature​

-10 °C to +50 °C​

Response Time​

~20 ms (on) / ~50 ms (off)

Key Features

  • ISO 5599/1 Interface:​ Standardized footprint for easy replacement and manifold mounting.

  • Spring Return:​ Fail-safe design returns to default position upon de-energization.

  • High Flow:​ Optimized internal flow path for efficient cylinder control.

  • LED Indicator:​ Visual status indication for quick diagnostics.

Applications

  • Control of double-acting pneumatic cylinders

  • Packaging machinery​ and material handling systems

  • Factory automation​ and robotic end-effectors

Parker P2LAZ511EENDCB49 | 5/2 Single Solenoid Valve, 24V DC, ISO 5599/1
