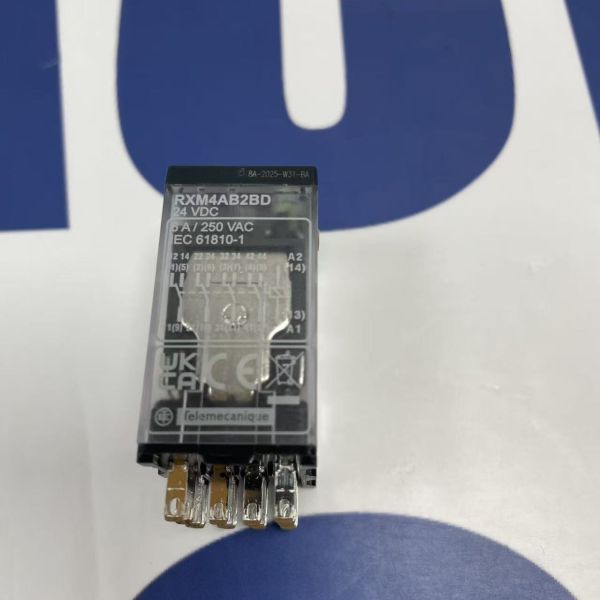

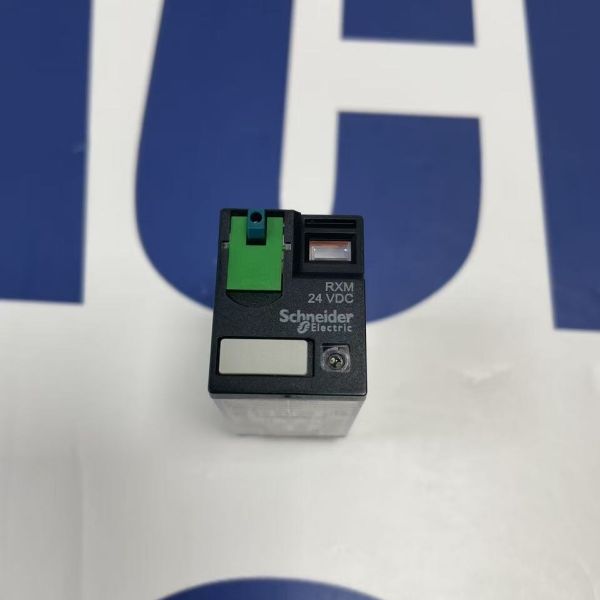

Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
Specifications
Brand Name :
Schneider Electric
Electrical Rating :
G
Model Number :
RXM4AB2BD
Price :
Negotiable
Certifications :
S
Payment Terms :
T/T,XT,ALIPAY
Place of Origin :
CN
Packaging Details :
carton
Power Supply :
1
MOQ :
1
Delivery Time :
Negotiable
Ambient Temperature :
-
Supply Ability :
100pcs per month
Certification :
ATEX
Description

Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A

Schneider Electric RXM4AB2BD miniature plug-in relay. 24V DC coil, 4 C/O contacts (6A @ 250V AC), LED indicator, lockable test button, plug-in base mount.

Product Overview

The Schneider Electric RXM4AB2BD​ is a miniature plug-in electromechanical relay​ from the Harmony RXM​ series. It features a 24V DC coil​ and 4 Changeover (4 C/O) contacts, each rated for 6A​ switching current. Designed for industrial control panels, this relay includes an LED status indicator​ and a lockable test button​ for easy commissioning and diagnostics. It requires a separate socket (e.g., RXZE2S114M) for DIN rail or panel mounting.

Technical Specifications (Electrical & Contacts)

Parameter

Specification

Model​

RXM4AB2BD​

Coil Voltage​

24 V DC​

Coil Power​

0.9 W (approx.)

Contact Configuration​

4 C/O (4 PDT)​

Contact Material​

Silver Nickel (AgNi)

Max. Switching Voltage​

250 V AC / 28 V DC

Rated Current (IEC)​

6 A​ @ 250 V AC (NO); 3 A @ 250 V AC (NC)

Max. Switching Power​

1500 VA (AC) / 168 W (DC)

Electrical Life​

100,000 cycles (at rated load)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting Type​

Plug-in​ (requires separate socket base)

Terminal Type​

Flat Pin (8 Pin)

Indicator​

LED (Red) + Mechanical Flag

Test Button​

Lockable (Manual Operation)

Operating Temperature​

-40 ... +55 °C​

Protection Rating​

IP40 (Relay only)

Mechanical Life​

10,000,000 cycles

Weight​

Approx. 37 g

Key Features

  • High Contact Density:​ 4 changeover contacts in a compact footprint, ideal for multi-circuit control logic.

  • Visual Diagnostics:​ Integrated LED and mechanical flag provide clear on/off status indication from a distance.

  • Manual Testing:​ Lockable test button allows for manual operation and circuit checking without applying coil voltage.

  • Wide Compatibility:​ Compatible with standard 8-pin socket bases (e.g., RXZE2S114M) for quick replacement.

Applications

  • Industrial Control Panels:​ Logic expansion, signal isolation, and interposing relay for PLC outputs.

  • Machine Automation:​ Control of contactors, solenoid valves, and small motors.

  • HVAC & Building Control:​ Switching of fans, pumps, and heating elements.

Schneider Electric RXM4AB2BD | 24V DC 4 C/O Plug-in Relay 6A
