Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC
Specifications
Brand Name :
Rexroth
Model Number :
M-3SED 6 CK13350CG24N9K4
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Rexroth M-3SED 6 CK13/350CG24N9K4 | NG6 3/2 Solenoid Valve 24V DC

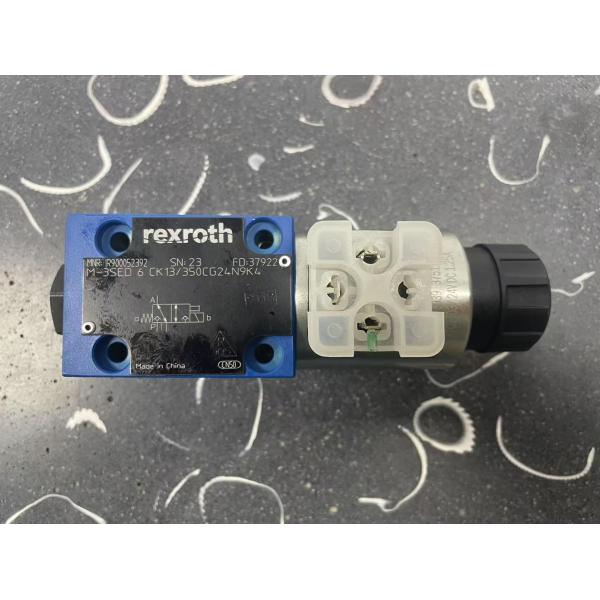

Rexroth M-3SED 6 CK13/350CG24N9K4 directional seat valve. Size NG6, 3 ports / 2 positions, 350 bar max pressure, 24V DC wet-pin solenoid with manual override.

Product Overview

Rexroth M-3SED 6 CK13/350CG24N9K4​ is a direct-operated directional seat valve​ from the industrial hydraulic M-3SED6 series. This NG6 (CETOP 3)​ sized valve features a 3-port, 2-position (3/2) "CK" spool configuration​ and is actuated by a 24V DC wet-pin solenoid. Designed for high-pressure applications up to 350 bar, it includes a concealed manual override​ and is mounted via a standard ISO 4401 subplate, making it a core component for controlling hydraulic cylinders and motors in machine tools and mobile equipment.

Technical Specifications (Valve & Hydraulic)

Parameter

Specification

Brand / Series​

Rexroth / M-3SED6

Order Number​

R900052392 (typical)

Valve Type​

Direct-Operated Directional Seat Valve​

Function​

3/2-way​ (3 ports, 2 positions)

Spool Code​

CK​ (Spring return, P→A, B→T in de-energized state)

Nominal Size​

6​ (NG6, CETOP 3, NFPA D03)

Max. Operating Pressure​

350 bar​ (P, A, B ports)

Max. Flow Rate​

Approx. 25 L/min​ (dependent on Δp)

Mounting Interface​

ISO 4401-03-02-0-05 (Subplate)

Seal Material​

NBR (Nitrile) for mineral oils

Technical Specifications (Electrical & Control)

Parameter

Specification

Actuator Type​

Wet-pin Solenoid​ (removable coil)

Voltage​

24 V DC​ (G24)

Electrical Connection​

K4​ (DIN EN 175301-803 plug, 3-pin)

Manual Override​

Yes​ (Concealed, N9 option)

Fluid Temperature​

-30 °C to +80 °C​ (with NBR seals)

Ambient Temperature​

-30 °C to +50 °C

Weight​

Approx. 1.5 kg​

Key Features

  • High-Pressure Seat Design:​ The poppet/seat construction ensures zero leakage in the closed position, even after long periods of inactivity under pressure.

  • Service-Friendly Solenoid:​ The wet-pin DC coil (C-type) is removable without draining the hydraulic system, facilitating quick maintenance.

  • Standardized Mounting:​ The ISO 4401 footprint allows for easy interchangeability with other NG6 valves in hydraulic power units.

Applications

  • Hydraulic press and clamping circuit control

  • Actuator direction control in machine tools

  • Mobile machinery hydraulic systems
