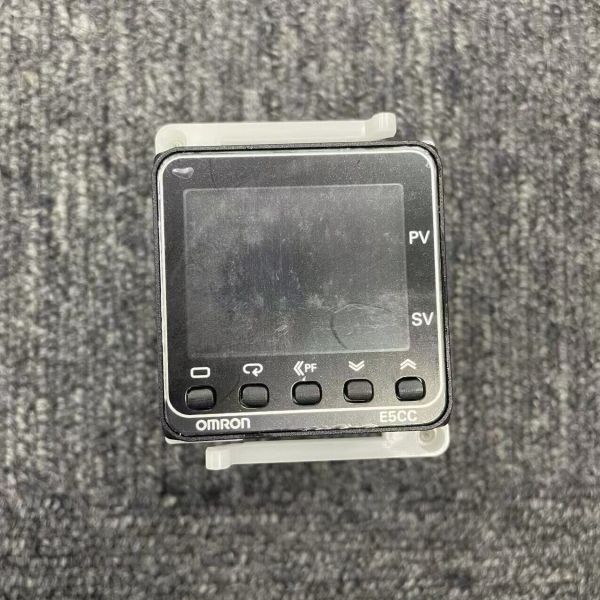

OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR
Specifications
Brand Name :
OMRON
Model Number :
E5CC-QX2ASM-800
Certification :
ATEX
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR

OMRON E5CC-QX2ASM-800 digital temperature controller specifications. 48x48mm DIN, universal input (TC/RTD), relay & voltage output, no communication.

Product Overview

The OMRON E5CC-QX2ASM-800 is a 48mm x 48mm digital temperature controller from the E5CC series. It features a universal input supporting thermocouples, Pt100, and analog signals, with dual outputs (relay + 12V DC for SSR) and two auxiliary alarm outputs. The "A" in the model denotes a 100-240V AC power supply, and the "-800" suffix indicates no communication function. It is designed for basic temperature control applications in industrial heating equipment.

Technical Specifications (Electrical & Control)

Parameter

Specification

Manufacturer​

OMRON

Model​

E5CC-QX2ASM-800

Power Supply​

100–240 V AC, 50/60 Hz

Input Types​

Thermocouple (K, J, T, E, etc.), Pt100/JPt100, Analog (4-20mA, 0-10V)

Control Output 1​

Relay (SPST-NO) – AC250V 3A resistive

Control Output 2​

Voltage Output (for SSR) – 12V DC PNP, 21 mA max

Auxiliary Outputs​

2 points, Relay (SPST-NO) – AC250V 3A (typically for alarms)

Control Method​

ON/OFF or 2-PID with Auto-tuning

Technical Specifications (Physical & Environmental)

Parameter

Specification

Panel Cutout​

48 mm × 48 mm (DIN standard)

Depth Behind Panel​

Approx. 60 mm

Display​

Dual 4-digit LED (PV 15.2mm, SV 7.1mm)

Front Protection​

IP66 (with gasket)

Operating Temp​

-10 °C to +55 °C (non-condensing)

Communication​

None (Local control only)

Event Input​

2 points (for remote SP selection/run-stop)

Key Features

  • Universal Input:​ Compatible with a wide range of temperature sensors without hardware changes.

  • Dual Output:​ Allows direct relay control of small loads and SSR drive for heavy loads.

  • Compact Design:​ Shallow depth (60mm) saves space in control panels.

  • High Visibility:​ Large white LED display for easy reading.

  • Multi-SP Function:​ Stores up to 8 setpoints (SP0-SP7) for quick recipe changes.

Applications

  • Industrial ovens and furnaces

  • Plastic molding machine temperature control

  • Packaging machinery heat sealing

  • HVAC and industrial heating systems
