Description

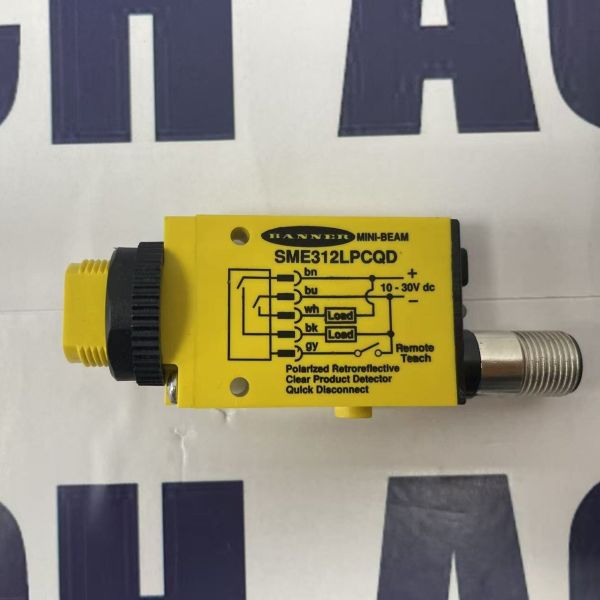

Banner SME312LPCQD Photoelectric Sensor | 1m Polarized Retroreflective, NPN/PNP, M18

Banner SME312LPCQD Mini-Beam Expert series sensor. 1m range, polarized retroreflective, 10-30V DC, dual NPN/PNP output, M18 threaded barrel, IP67.

Product Overview

The Banner SME312LPCQD is a compact M18 miniature photoelectric sensor​ from the Mini-Beam Expert series. It features polarized retroreflective​ sensing technology with a 1-meter range, designed for reliable detection of reflective objects while ignoring glare. The sensor operates on 10-30V DC and provides both NPN and PNP outputs (bipolar) via a 5-pin M12 quick-disconnect connector. Its IP67-rated thermoplastic housing and threaded barrel design make it suitable for space-constrained industrial automation applications.

Technical Specifications (Electrical & Sensing)

Parameter

Specification

Manufacturer / Series​

Banner Engineering / Mini-Beam Expert (SME312)

Model​

SME312LPCQD

Sensing Mode​

Polarized Retroreflective (requires reflector)

Max. Sensing Range​

1 m

Light Source​

Visible Red LED (650 nm)

Supply Voltage​

10 – 30 V DC

Output Type​

Bipolar (1 NPN + 1 PNP solid-state)

Max. Load Current​

150 mA per output

Response Time​

0.5 ms (500 μs)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Style​

Rectangular body with M18 x 1 mm threaded barrel

Housing Material​

Thermoplastic

Connection​

5-pin M12 integral quick-disconnect (Euro style)

Protection Rating​

IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13

Operating Temperature​

-20 °C to +70 °C

Lens Material​

Acrylic

Configuration​

TEACH-mode button (Expert series feature)

Key Features

  • Polarized Retroreflective Sensing:​ Effectively detects shiny objects (metal, plastic) without false triggers from reflections.

  • Dual NPN/PNP Output:​ Flexible wiring compatibility with both sinking (NPN) and sourcing (PNP) PLC inputs.

  • Compact M18 Design:​ Small footprint ideal for high-density mounting on machinery.

  • Fast Response:​ 0.5 ms switching speed for high-speed automation tasks.

  • Easy Setup:​ Push-button TEACH function for simple sensitivity adjustment.

Applications

  • Detection of transparent or clear objects (bottles, films)

  • Small part presence sensing on conveyors

  • Packaging machinery and material handling

  • Web break detection in printing and converting
