AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series
Specifications
Brand Name :
AVENTICS
Model Number :
R412007209
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

AVENTICS R412007209 Filter Regulator | G 1/2, 5μm, 0.5-8 bar, AS3-FRE Series

AVENTICS R412007209 combined filter regulator unit. G 1/2 port, 5μm filtration, 0.5-8 bar pressure regulation, semi-auto drain, includes pressure gauge.

Product Overview

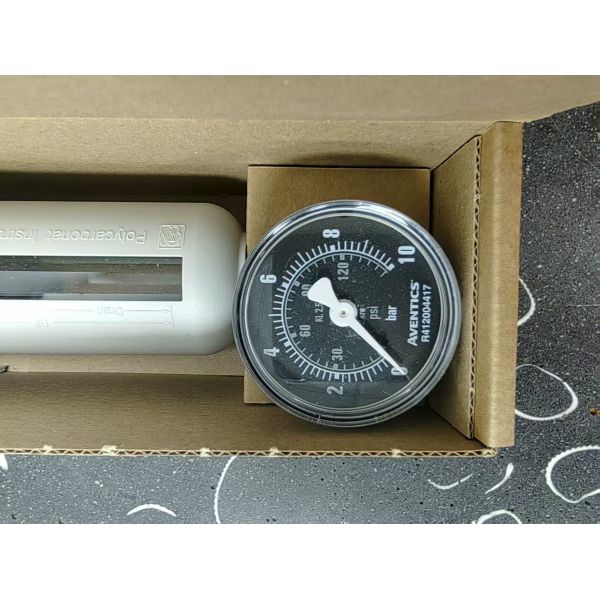

The AVENTICS R412007209 is a modular filter-regulator combination unit​ from the AS3-FRE series. It integrates a 5μm air filter with semi-automatic condensate drain and a diaphragm-type pressure regulator in a single compact body. The unit includes an integrated pressure gauge for easy setting and monitoring, and features a plastic (PC) bowl with protective guard. It is designed for general industrial compressed air preparation at the point of use.

Technical Specifications (Performance & Media)

Parameter

Specification

Manufacturer​

AVENTICS

Model​

R412007209

Product Type​

Filter-Regulator Combination

Port Size & Thread​

G 1/2 (Internal)

Max. Operating Pressure​

16 bar

Pressure Regulation Range​

0.5 – 8 bar

Nominal Flow Rate (Qn)​

5100 l/min

Filtration Rating​

5 μm

Condensate Drain​

Semi-automatic (push-to-drain)

Technical Specifications (Physical & Environmental)

Parameter

Specification

Bowl Material​

Polycarbonate (PC) with PA Guard

Bowl Capacity​

49 cm³

Pressure Gauge​

Included (1/2" G port)

Operating Temperature​

-10 °C to +50 °C

Media​

Compressed Air, Neutral Gases

Air Quality Class (ISO 8573-1)​

6:7:-

Lockout Provision​

Yes (for locking pressure setting)

Approx. Weight​

0.658 kg

Key Features

  • Space-Saving Design:​ Combines filtration and regulation in one unit to reduce footprint.

  • Integrated Gauge:​ Built-in pressure gauge simplifies installation and adjustment.

  • Safety Bowl:​ Polycarbonate bowl is protected by a polyamide guard against impact.

  • Modularity:​ Designed to be stacked or combined with other FRL units.

  • Reliable Regulation:​ Diaphragm-type regulator provides stable secondary pressure.

Applications

  • General pneumatic tool air supply lines

  • Machine tool pneumatic control circuits

  • Packaging and automation equipment air preparation

  • Entry point air treatment for pneumatic panels
