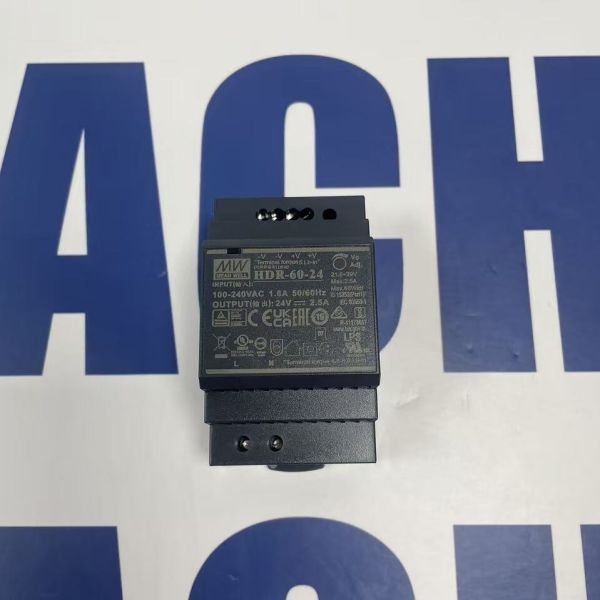

MEAN WELL HDR-60-24 | 60W 24V 2.5A DIN Rail Power Supply

MEAN WELL HDR-60-24 compact DIN rail switching power supply. 60W, 24V DC 2.5A output, 85-264V AC input, 90% efficiency, -30 to +70°C, short circuit protection.

Product Overview

The MEAN WELL HDR-60-24​ is a compact 60W DIN rail mountable single-output switching power supply. It provides a regulated 24V DC output at 2.5A, designed for industrial control panels, PLC systems, and automation applications. With a wide input voltage range (85-264V AC) and high efficiency (90% typ.), it ensures reliable performance in demanding environments. The unit features built-in protections against overload, overvoltage, and short circuits, and is certified to UL/EN/IEC safety standards.

Technical Specifications (Electrical)

Parameter

Specification

Manufacturer / Series​

MEAN WELL / HDR-60

Model​

HDR-60-24

Output Voltage​

24 V DC

Rated Output Current​

2.5 A

Rated Power​

60 W

Voltage Adjustment Range​

21.6 – 29 V

Input Voltage Range​

85 – 264 V AC / 120 – 370 V DC

Input Frequency​

47 – 63 Hz

Efficiency​

90% (typical)

Ripple & Noise​

150 mVp-p (max)

Protections​

Overload, Short Circuit, Overvoltage

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting Type​

DIN Rail (TS-35/7.5 or TS-35/15)

Housing Material​

Plastic (UL94 V-0)

Dimensions (W x H x D)​

52.5 x 90 x 54.5 mm

Operating Temperature​

-30 °C to +70 °C (derating from 60°C)

Storage Temperature​

-40 °C to +85 °C

Cooling Method​

Natural Convection (Fanless)

Safety Standards​

UL62368-1, EN62368-1, EN61558-2-16

Isolation​

Class II (Reinforced Insulation)

Key Features

  • Compact Design:​ Saves space in control cabinets with 52.5mm width.

  • Wide Input Range:​ Operates from 85-264V AC without a selector switch.

  • High Reliability:​ MTBF >1,000,000 hours; suitable for 24/7 operation.

  • Full Protection:​ Auto-recovery from overload and short circuit conditions.

Applications

  • PLC, sensor, and relay power in industrial control panels

  • Building automation and HVAC systems

  • Machinery and conveyor control systems

  • LED lighting control systems
