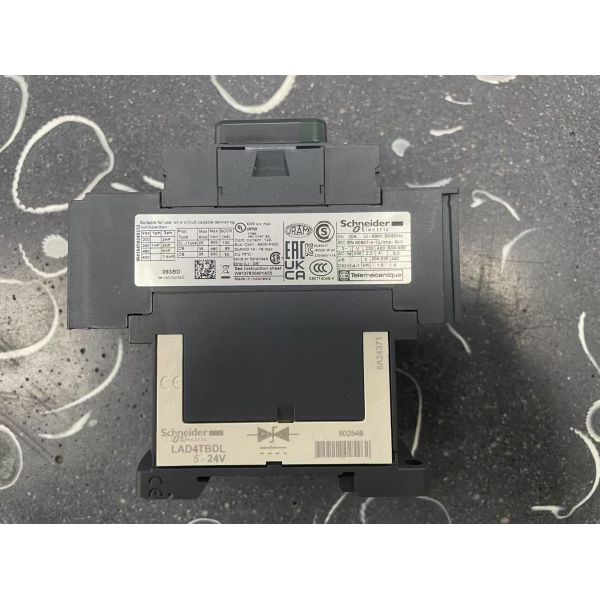

Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil
Specifications
Brand Name :
Schneider Electric
Model Number :
LC1D093BD
Certification :
ATEX
Place of Origin :
ID
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil

Schneider Electric LC1D093BD TeSys D contactor. 3-pole, 9A AC-3 rating, 24V DC coil, 4kW motor control. Built-in 1NO+1NC auxiliary contacts, spring-cage terminals, DIN rail mount.

Product Overview

The Schneider Electric LC1D093BD​ is a 3-pole (3 NO) electromagnetic contactor​ from the TeSys D series​ (LC1D). It is rated for 9 A at 400 V (AC-3), suitable for controlling 4 kW three-phase motors. This model features a 24 V DC control coil​ with built-in suppression, integrated 1NO+1NC auxiliary contacts, and spring-cage (push-in) terminals​ for quick wiring. It is designed for motor starting, HVAC, and industrial control applications.

Technical Specifications (Electrical & Ratings)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / TeSys D (LC1D)

Model Number​

LC1D093BD

Product Type​

3-Pole Contactor with Auxiliary Contacts

Rated Operational Current (Ie)​

9 A​ (AC-3, 400 V)

Rated Insulation Voltage (Ui)​

690 V AC​

Control Coil Voltage​

24 V DC​ (with built-in diode suppression)

Motor Power (AC-3)​

4 kW (400 V) / 2.2 kW (230 V)

Utilization Category​

AC-1, AC-3 (Motor), AC-4

Auxiliary Contacts​

1 NO + 1 NC​ (Integrated, non-removable)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Poles / Contact Configuration​

3 NO (Main Contacts)

Terminal Type​

Spring-Cage (Push-In)​ for power & control

Mounting​

DIN Rail (35 mm) or Panel Plate

Dimensions (W×H×D)​

45 × 80 × 95 mm​ (approx.)

IP Rating​

IP20 (Front)

Operating Temperature​

-25 °C to +60 °C (derating above 55°C)

Mechanical Life​

30 Million cycles

Electrical Life (AC-3)​

1.5–3 Million cycles

Standards​

IEC 60947-4-1, UL 508, CSA, CCC

Key Features

  • Integrated Auxiliaries:​ Built-in 1NO+1NC signaling contacts eliminate the need for separate add-on blocks.

  • DC Coil with Suppression:​ 24 V DC coil includes a bidirectional diode for voltage spike protection in PLC/electronic control circuits.

  • Quick-Connect Terminals:​ Spring-cage (push-in) terminals reduce wiring time compared to screw clamps.

  • High Breaking Capacity:​ Rated for 690 V AC systems and motor inrush currents.

Applications

  • Control of small 3-phase motors (pumps, fans, compressors)

  • HVAC and building automation control panels

  • Machine tool and conveyor starter circuits
