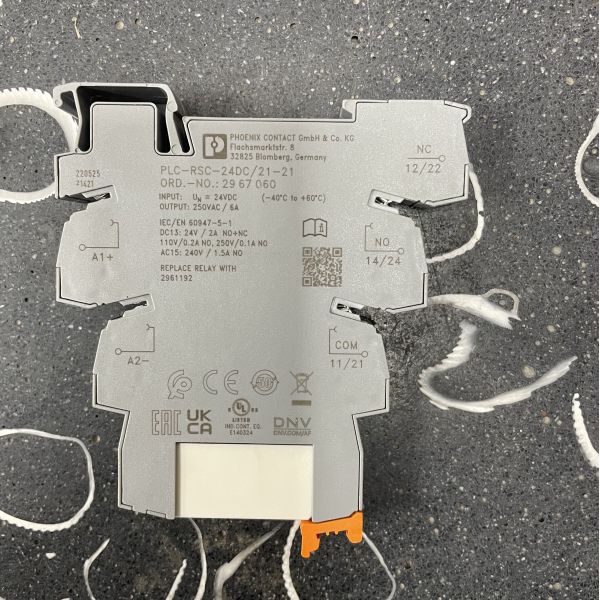

Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A
Specifications
Brand Name :
Phoenix Contact
Model Number :
PLC-RSC-24DC21-21
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Phoenix Contact PLC-RSC-24DC/21-21 | 24V DC DPDT Relay, 6A

Phoenix Contact PLC-RSC-24DC/21-21 interface relay module. 24V DC coil, DPDT contacts, 6A switching, screw terminals, DIN rail mount.

Product Overview

The Phoenix Contact PLC-RSC-24DC/21-21​ is a compact PLC interface relay​ designed for signal amplification and isolation in control systems. It features a 24V DC coil​ and DPDT (2-changeover) contacts​ capable of switching up to 6A. The module consists of a plug-in relay and a screw terminal base, offering a typical input current of 18 mA and built-in LED status indication. It is commonly used to interface between low-power PLC outputs and higher-power loads such as contactors, solenoid valves, and indicators.

Technical Specifications (Electrical)

Parameter

Specification

Order Number​

2967060 (PLC-RSC-24DC/21-21)

Rated Coil Voltage​

24 V DC​

Input Current (at Un)​

Approx. 18 mA

Contact Configuration​

DPDT (2 CO)​

Max. Switching Voltage​

250 V AC / 250 V DC

Max. Switching Current​

6 A​

Contact Material​

Silver Alloy (AgNi)

Operate Time​

~8 ms

Release Time​

~10 ms

Protection Circuit​

Free-wheeling Diode

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting Type​

DIN Rail (NS 35/7.5)​

Terminal Type​

Screw Clamp (M3)

Module Width​

6.2 mm (Single module)

Overall Dimensions (HxWxD)​

~94 mm x 6.2 mm x 80 mm

IP Rating (Base)​

IP20 (Fingersafe)

Operating Temperature​

-40 °C ... +60 °C​

Mechanical Life​

~30 million operations

Electrical Life​

> 100,000 ops (at rated load)

Standards​

UL 508, EN 61810-1

Key Features

  • Space-Saving Design:​ Slim 6.2mm width allows high-density installation on DIN rails.

  • Visual Status:​ Integrated yellow LED indicates coil energization.

  • Universal Switching:​ Contacts are rated for both AC and DC loads, providing application flexibility.

  • Plug-in Design:​ Relay cartridge is removable for easy replacement without rewiring.

Applications

  • Signal amplification from PLC digital output cards

  • Control of contactors, small motors, and solenoid valves

  • Electrical isolation between control and power circuits
