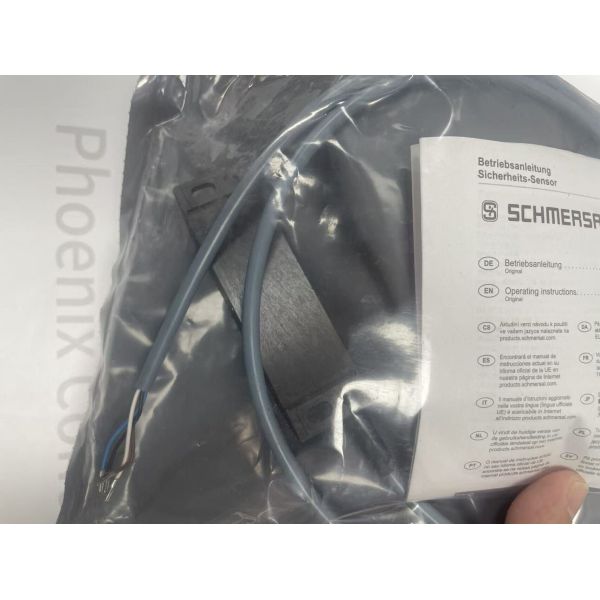

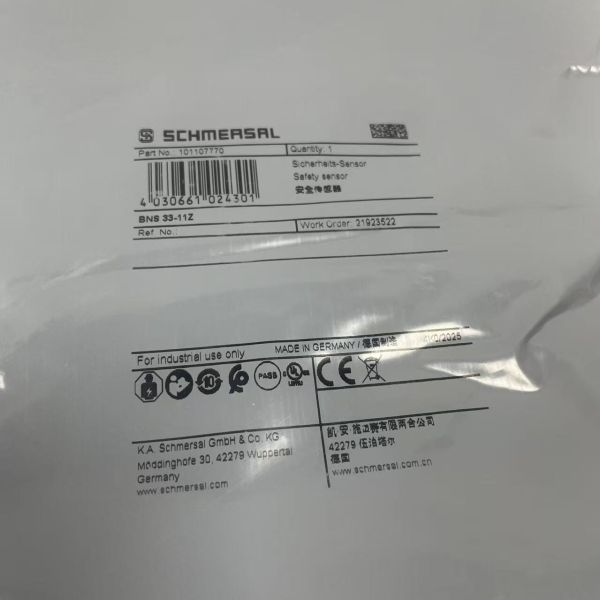

Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
Specifications
Brand Name :
Schmersal
Model Number :
BNS 33-11Z
Certification :
ATEX
Place of Origin :
DE
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67

Schmersal BNS 33-11Z magnetic safety switch. Plastic housing, 1NO+1NC contacts, 100V AC/DC, IP67, -25°C to +70°C. Requires separate BPS actuator.

Product Overview

The Schmersal BNS 33-11Z​ is a non-contact magnetic safety switch​ designed for machine guarding and safety door monitoring. It features a thermoplastic housing​ and offers 1 normally open (NO) and 1 normally closed (NC) contact​ configuration. This switch operates on a magnetic reed principle​ and requires a separate coded actuator (BPS 33 series) for operation, ensuring compliance with safety standards up to Category 4 (EN ISO 13849-1).

Technical Specifications (Electrical & Functional)

Parameter

Specification

Product Type​

Magnetic Safety Switch (Reed)

Contact Configuration​

1 NO + 1 NC​

Rated Voltage​

≤ 100 V AC / ≤ 100 V DC​

Rated Current​

0.4 A

Max. Switching Power​

10 W

Switching Frequency​

≤ 5 Hz

Safety Category​

Category 4 (EN ISO 13849-1)​

B10D Value​

25,000,000 operations

Standards​

EN IEC 60947-5-3, BG-GS-ET-14

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Material​

Glass-fiber Reinforced Thermoplastic

Actuator Type​

Coded Magnet (Separate, BPS 33)​

Switching Distance (Sao)​

5 mm (BPS 33) / 8 mm (BPS 33-2326)

Release Distance (Sar)​

15 mm (BPS 33) / 18 mm (BPS 33-2326)

Degree of Protection​

IP67​

Operating Temperature​

-25 °C ... +70 °C​

Dimensions (L x W x H)​

88 mm x 25 mm x 13 mm

Connection​

Cable or M8 Connector (Variant Dependent)

Mounting​

Concealed/Flush Mount

Key Features

  • High Safety Integrity:​ Designed for Category 4 applications with a high B10D value, suitable for protecting hazardous machine access points.

  • Coded Actuation:​ Requires a specific Schmersal BPS actuator, preventing tampering or bypass with a standard magnet.

  • Robust Construction:​ IP67-rated housing protects against dust and temporary immersion, ideal for harsh industrial environments.

Applications

  • Safety door monitoring on CNC machines and robotic cells

  • Access panel interlocking in packaging and assembly machinery

  • Guard locking systems in compliance with EN ISO 14119

Schmersal BNS 33-11Z | Safety Door Switch, 1NO+1NC, IP67
