Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection
Specifications
Brand Name :
Schneider Electric
Model Number :
3CT-H2-200-Z
Certification :
ATEX
Place of Origin :
KR
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schneider Electric 3CT-H2-200-Z | 200/5A EOCR CT for Motor Protection

Schneider Electric 3CT-H2-200-Z current transformer. 200/5A ratio, 1.25VA burden, Class 3.0 accuracy. Dedicated for EOCR motor protection relays, panel mount.

Product Overview

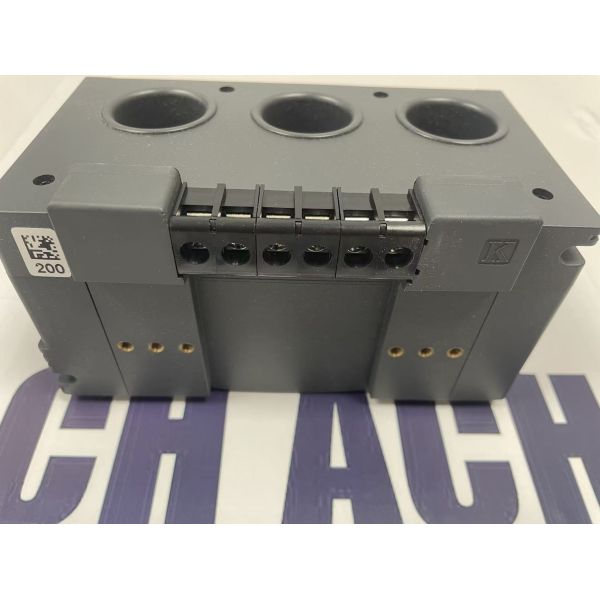

The Schneider Electric 3CT-H2-200-Z​ is a combined current transformer (CT)​ specifically designed for use with EOCR (Electronic Over-Current Relay) motor protection devices. It features a 200/5 A​ ratio and is intended for three-phase​ systems to step down primary current for monitoring and protection. This model is part of the "New 3CT" series and is characterized by its square housing, feed-through (window-type) design, and panel mounting​ style, making it a dedicated component for motor starter and protection assemblies.

Technical Specifications (Electrical)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / EOCR 3CT Series

Model Number​

3CT-H2-200-Z

Product Type​

Combined Current Transformer (CT)

Rated Primary Current (Ipn)​

200 A​

Rated Secondary Current (Isn)​

5 A​

Transformation Ratio​

200 / 5 A​

Accuracy Class​

Class 3.0​ (Protection Class)

Rated Burden​

1.25 VA​

Rated Insulation Voltage (Ui)​

600 V AC​

Rated Frequency​

50 / 60 Hz

Application Standard​

IEC 60947-4-1

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Type​

Square, Feed-Through (Window Type)

Mounting Style​

Panel Mount (Surface Mount)

Window Diameter (Hole)​

28.5 mm​

Overall Dimensions (W×H×D)​

154.5 × 85 × 75 mm​

Conductor Type​

Cable or Busbar (fits through Ø28.5mm window)

Terminal Type​

Screw Terminals (Secondary Side)

Operating Temperature​

-20 °C to +60 °C​

IP Rating​

IP00 / IP20 (Basic Insulation)

Key Features

  • EOCR Specific Design:​ Optimized for direct connection to Schneider Electric EOCR motor protection relays (e.g., EOCR-3DE, EOCR-FDM2), ensuring accurate current sensing for overload, phase loss, and stall protection.

  • High Current Rating:​ Suitable for protecting motors and circuits with primary currents up to 200A.

  • Space-Saving Form Factor:​ Square shape allows for efficient panel layout and easy grouping for 3-phase systems.

  • Feed-Through Installation:​ Simplifies wiring by allowing the primary conductor to pass directly through the CT window without breaking the circuit.

Applications

  • Motor protection circuits using EOCR relays

  • Industrial control panels for pumps, fans, and compressors

  • Current monitoring in MCC (Motor Control Center) buckets
